MCTRL 600 LED Controller — Cost-Effective NovaStar Sending Card for Mid-Size LED Displays
The MCTRL600 is NovaStar’s entry-level professional LED sending card, delivering 2.3 million pixel capacity across 4 Gigabit Ethernet ports at the most competitive price in the MCTRL lineup. Supporting DVI and HDMI inputs at up to 1920×1200@60Hz, 8-bit color processing with hardware-level gamma correction, and USB cascading of up to 10 units, it is the ideal solution for fixed installations, small-to-mid rental projects, and budget-conscious integrators. As a leading LED screen manufacturer, LEGIDATECH supplies the MCTRL600 factory-direct with 3-year warranty.
What Is the MCTRL 600 LED Controller?
The MCTRL600 is NovaStar’s value-focused LED sending card, delivering core sending functionality at the most accessible price in the MCTRL lineup. With the same 2.3 million pixel capacity and 4-port architecture as the MCTRL660, it provides reliable 8-bit video transmission for projects where advanced features like 10-bit color and hot backup are not required. The MCTRL600 supports DVI and HDMI inputs at up to 1920×1200@60Hz, cascading of up to 10 units via USB, and full NovaLCT software compatibility. For more ecosystem context, see what is Novastar control system.
MCTRL600 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NovaStar MCTRL600 |
| Max Input | 1920×1200@60Hz |
| Capacity | 2,300,000 pixels |
| Ports | 4× RJ45 Gigabit Ethernet |
| Inputs | 1× DVI, 1× HDMI 1.3 |
| Color Depth | 8-bit |
| Audio | 1× 3.5mm input |
| Cascade | Up to 10 units via USB |
| Control | USB-B (PC), USB-A (cascade), RJ45 |
| Power | 5V DC, 12W rated |
| Dimensions | 190 × 130 × 35 mm, 0.4 kg |
| Software | NovaLCT + V-Can |
| Certifications | CE, FCC, RoHS |
Key Features of the MCTRL 600
Reliable 8-bit Color
Hardware-level gamma correction delivers consistent color across all connected LED modules. For most commercial applications at P2.5 and above, 8-bit provides more than sufficient color gradation for excellent visual quality.
Simple USB Cascading
Link up to 10 MCTRL600 units via USB with synchronized operation. Combined capacity: 23 million pixels across 40 Ethernet ports. All units auto-detected in NovaLCT for unified configuration.
Compact Form Factor
At just 190×130×35mm and 0.4kg, the MCTRL600 fits easily into cramped rack spaces and flight cases. Ideal for portable rental rigs and space-constrained control rooms.
NovaStar Ecosystem Compatible
Works with all NovaStar receiving cards (A5s, A8s, A10s), NovaLCT software, and V-Can control platform. Standardized USB cascading with other MCTRL and VX series units for mixed deployments.
Application Scenarios
Product Videos
MCTRL600 Best Price Controller
Overview of the MCTRL600 as the best-value LED screen controller for optimal display performance and reliability.

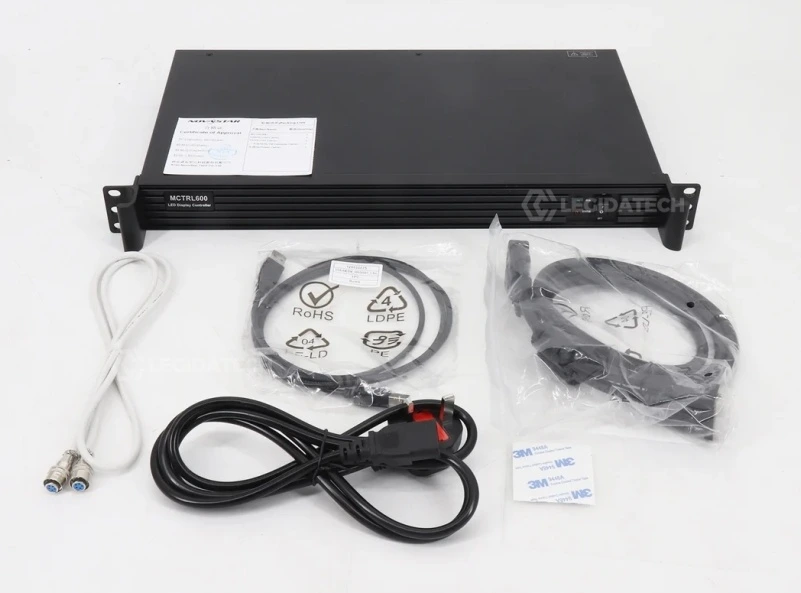

MCTRL600 Unboxing & Overview
Detailed unboxing and hardware walkthrough of the NovaStar MCTRL600 LED sending card and accessories.
MCTRL600 LED Sending Box
Visual demonstration of the MCTRL600 setup and connection to LED display systems in real deployments.
Why Source Your MCTRL600 from LEGIDATECH?
✅
Genuine Factory-Sealed
Direct from NovaStar authorized channel. Serial verification available.
📦
Pre-Tested Before Shipping
Each unit powered on and all ports verified on test LED wall.
🌎
Global Express Shipping
DHL/FedEx 3-5 days. 40+ countries served worldwide.
🛡
3-Year Full Warranty
Double the industry standard. 30-day DOA replacement at our cost.
Related NovaStar Products
MCTRL Series Comparison
| Feature | MCTRL600 | MCTRL660 | MCTRL4K |
|---|---|---|---|
| Pixel Capacity | 2.3M | 2.3M | 8.8M |
| Ethernet Ports | 4 | 4 | 16 |
| Max Input | 1920×1200 | 1920×1200 | 4096×2160 (4K) |
| Color Depth | 8-bit | 10/12-bit | 10/12-bit |
| Hot Backup | — | Y | Y |
| Pixel Calibration | — | Y | Y |
| Max Cascade | 10 units | 20 units | 16-port arch |
| Genlock | — | Y | Y |
| Software | NovaLCT | NovaLCT+V-Can | NovaLCT+V-Can |
| Best For | Fixed, Budget | Rental, Broadcast | 4K, Stadium, XR |
All MCTRL controllers share the same NovaStar receiving card ecosystem and NovaLCT configuration platform.
Frequently Asked Questions
What is the difference between MCTRL600 and MCTRL660?
The MCTRL600 provides core 8-bit sending at the lowest price. The MCTRL660 adds 10/12-bit color depth, pixel-level calibration, hot backup verification, and 20-unit cascading. For fixed installations and budget projects with standard color requirements, the MCTRL600 delivers optimal ROI.
How many MCTRL600 units can be cascaded?
Up to 10 units via USB daisy-chain with synchronized operation. Combined capacity: 23 million pixels across 40 Ethernet ports. All units auto-detected in NovaLCT.
Does the MCTRL600 support 4K input?
No. Maximum input is 1920×1200@60Hz via DVI or HDMI 1.3. For 4K workflows, upgrade to the MCTRL4K which supports 4096×2160@60Hz.
What software configures the MCTRL600?
NovaLCT for screen setup, receiving card mapping, and calibration. V-Can for real-time brightness, input switching, and monitoring. Both are free downloads from NovaStar.
Is the MCTRL600 suitable for outdoor LED displays?
Yes. When paired with an appropriate video processor for brightness/color adjustment, the MCTRL600 reliably drives outdoor LED billboards. The key factor is proper enclosure sealing and temperature management — the controller itself operates reliably in outdoor-rated control cabinets.
Entry-Level LED Controller Guide: When the MCTRL 600 Is the Smartest Investment
Published: July 2026 | Author: LEGIDATECH Engineering Team
When Less Is More: The Case for 8-bit
For the vast majority of commercial LED displays — outdoor P5-P10 billboards, P3-P4 retail signage, P3.91 rental screens — the human eye cannot distinguish 8-bit from 10-bit color at normal viewing distances. The MCTRL600’s 8-bit output delivers 16.7 million colors, which exceeds the color gamut of most LED modules in these ranges. Paying 30-50% more for 10-bit provides zero visible benefit in these applications.
ROI Analysis: MCTRL600 vs MCTRL660
For a 40-screen digital signage network, choosing MCTRL600 over MCTRL660 saves approximately $4,800-$8,000 in hardware costs — with no visible difference in display quality for standard content. Those savings can fund installation labor, content creation, or additional screens. See our analysis of factors affecting LED display pricing.
Installation Simplicity
The MCTRL600’s compact size and straightforward USB cascade topology reduce rack complexity. Technicians can be trained on NovaLCT configuration in under 2 hours. For integrators deploying dozens of sites, this operational simplicity compounds into significant labor savings.
Conclusion
The MCTRL 600 LED Controller is NovaStar’s most cost-effective professional sending card. For projects where 8-bit color and 10-unit cascade are sufficient, no other controller delivers comparable NovaStar quality at this price. Contact LEGIDATECH for volume pricing and custom configuration.
