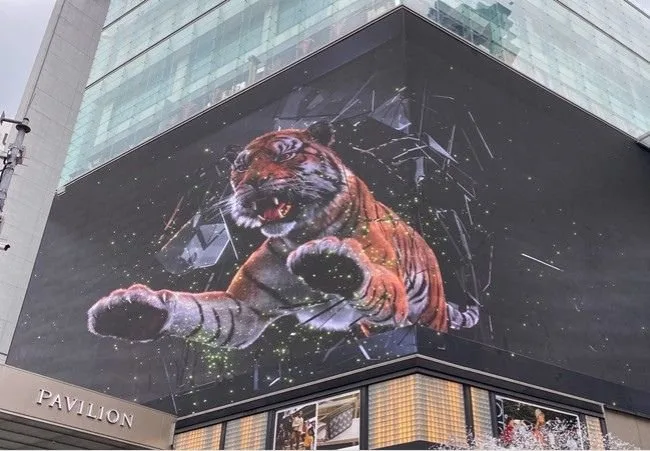

What Is a Naked Eye 3D LED Screen?
A naked eye 3D LED screen is an LED display that produces a three-dimensional visual effect without 3D glasses. It combines a corner or L-shaped screen structure with specially produced 3D content, so viewers standing in front of the screen see depth, and objects appear to extend beyond the display surface.
These screens are widely used in commercial plazas, shopping mall atriums, CBD landmarks and airport terminals, where they stop foot traffic and turn digital advertising into a shareable event. A well-designed outdoor LED screen for advertising with 3D content generates significantly higher dwell time and social media exposure than a standard flat billboard.
No Glasses Required
The 3D illusion is created by screen geometry and content perspective, not by stereoscopic eyewear — the whole crowd sees the effect at once.
Corner & L-Shaped Structure
Two screen faces joined at the corner break the flat surface and give 3D content a second plane to work with — the core of the naked eye effect.
High Brightness & Refresh
Outdoor modules up to 10,000 nits and refresh rates up to 3840 Hz keep 3D motion smooth and visible even in direct sunlight.
How Naked Eye 3D LED Displays Work
There are two very different things people call “3D LED screens”. Understanding the difference matters for any LED screen purchase decision:
Flat LED screen playing 3D-looking content
Any normal LED video wall can play videos of 3D animations. The content looks dynamic, but there is no real depth — the effect is a flat image of a 3D scene. This is not a naked eye 3D billboard.
True naked eye 3D LED billboard
A screen with a corner / L-shaped structure, matched to 3D content rendered for that exact geometry. Viewers perceive real depth and objects breaking out of the screen plane. This is what the term naked eye 3D refers to.
A true naked eye 3D LED billboard works through three combined elements:
1. Corner Geometry
The screen wraps around a building corner (typically 90° or a smooth curve). The corner gives content a second surface, which is what creates the depth break that a single flat plane cannot.
2. Perspective-Matched Content
3D animations are rendered from a virtual camera placed at the viewers’ position. Objects are drawn large, dark and fast so the eye perceives them as being closer than the screen surface.
3. Display Quality
High brightness, high refresh rate and dark module surfaces make black backgrounds look truly black, which is what hides the screen plane and sells the illusion.
Note on “parallax barrier” technology: some sources explain every naked eye 3D billboard as a parallax barrier display. In fact, parallax barrier and lenticular methods are niche auto-stereoscopic technologies used in specific small-area products. The large naked eye 3D LED billboards in commercial plazas use the corner-structure and anamorphic content method described above. LEGIDATECH applies parallax-type solutions only where a project genuinely requires them.
Naked Eye 3D LED Billboard vs Traditional LED Billboard
Both are LED display systems, but they are engineered differently and serve different advertising objectives:
| Comparison | Traditional LED Billboard | Naked Eye 3D LED Billboard |
|---|---|---|
| Viewing experience | Flat, readable content | Depth perception, objects break out of the screen |
| Screen structure | Flat panel | Corner / L-shaped / curved structure |
| Content | Standard 2D ads, video | Special 3D anamorphic content required |
| Content production | Basic design or video | 3D animation production (C4D / Blender) |
| Initial investment | Lower | Higher (structure + content) |
| Audience effect | Informative | Viral, high dwell time, PR value |
| Typical use | Highway, street, rooftop | Shopping mall corners, CBD landmarks, plazas |
| Maintenance | Standard | Same cabinet-level service, corner modules |

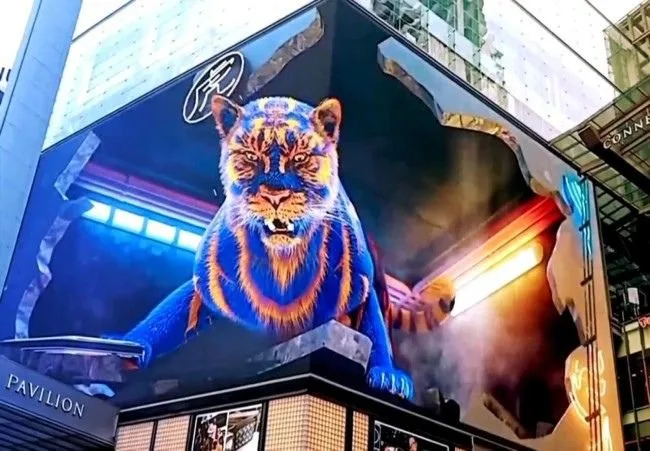

Corner & L-Shaped 3D LED Screen Design
The corner structure is the heart of a naked eye 3D billboard. LEGIDATECH engineers each corner screen from your building geometry:
90° Corner Screens
Two flat faces joined at a precise 90° corner. The most common configuration for building corners and mall atriums.
Curved Corner Screens
A smooth radius at the corner creates a continuous surface, giving content designers more freedom and softer depth transitions.
L-Shaped & Irregular Facades
Custom module processing and steel structure for L-shapes, angles and non-standard facade geometry. See our creative LED screen solutions.
Corner screen engineering checklist
- Site survey and corner angle measurement
- Cabinet design for seamless corner join (no visible gap)
- Custom steel structure and wind-load calculation
- Content viewport mapping for the exact corner geometry
- Pre-assembly and calibration in the factory before shipment
Curved corner LED wall and custom irregular screens built by LEGIDATECH.
3D LED Screen Specifications & Selection Factors
Choosing the right specifications decides both the visual effect and the budget of your 3D LED billboard project:
| Factor | Recommendation for 3D LED Billboard | Why It Matters |
|---|---|---|
| Pixel pitch (outdoor) | P4 – P10; P5 / P8 most common | Finer pitch = smoother image up close; P5+ for viewing distance over 8 m |
| Pixel pitch (indoor) | P1.8 – P4 | Indoor viewers stand closer, so finer pitch is needed for sharp 3D |
| Brightness (outdoor) | 5,500 – 10,000 nits | Must stay visible in direct sunlight; automatic brightness sensor recommended |
| Brightness (indoor) | 800 – 1,500 nits | Comfortable for indoor lighting without glare |
| Refresh rate | 1920 – 3840 Hz | High refresh removes flicker on camera, keeps 3D motion smooth |
| Gray scale / color depth | 12 – 14 bit | Smooth gradients in dark backgrounds — critical for the 3D illusion |
| Corner structure | 90° or curved corner | Defines the depth break; choose by building geometry |
| Viewing distance | 1.5 – 3 × screen height | Design the viewport so the main audience zone matches the perspective |
| Waterproofing (outdoor) | IP65 front / IP54 rear | Outdoor exposure: rain, dust and temperature range |
| Control system | Video processor + sending / receiving cards + media player | See the LED display control system hub for options |
Viewing distance guideline: minimum viewing distance (m) ≈ pixel pitch (mm) × 1000 ÷ 172 for fine-pitch screens. For a P5 outdoor screen this is about 3 m; the recommended 3D viewing zone is roughly 10 – 25 m for a typical 6 m tall corner billboard. LEGIDATECH prepares a full viewing analysis with every quotation.
3D LED Billboard Content Production & Playback
Great hardware is only half of a 3D billboard. The content decides whether the illusion works. This is the standard production workflow LEGIDATECH recommends for every outdoor LED display project:
Define the viewport
Measure the corner geometry and the main audience zone; define the virtual camera position.
Set screen resolution
Plan content at the screen’s native resolution — e.g. a 16×8 m P5 screen is 3200×1600 px. 4K to 8K master renders are common.
Create 3D animation
Build scenes in Cinema 4D, Blender, Unreal Engine or similar; keep key elements large, dark-edged and moving toward the viewer.
Render & map to the corner
Render both screen faces as one continuous viewport, then map correctly across the corner so the image stays continuous.
Playback & schedule
Deliver via media player with scheduling, remote upload and brightness scheduling; loop 3D content with 2D ads in between.
Playback system
- Media player / asynchronous control card for scheduled playback
- Video processor for scaling and color management
- Sending & receiving cards (NovaStar, Huidu, Colorlight, Mooncell)
- Cloud CMS for remote upload and multi-screen management
LEGIDATECH supplies the complete playback chain and configures it for your 3D content format. Content design services can be arranged through our production partners.
Best Applications & Scenarios for Naked Eye 3D LED Screens
Naked eye 3D LED billboards deliver the strongest return where foot traffic meets viewing time. Typical installations include:

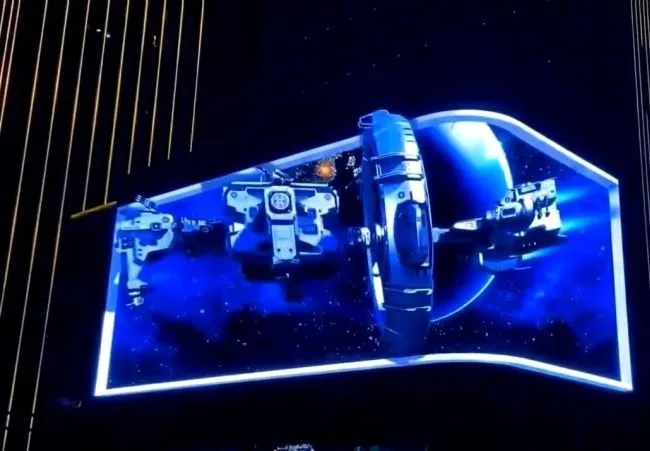

Shopping Malls & Retail
Atrium corners and mall entrances. 3D screens turn window shoppers into brand audiences. See our LED screen for shopping center solutions.

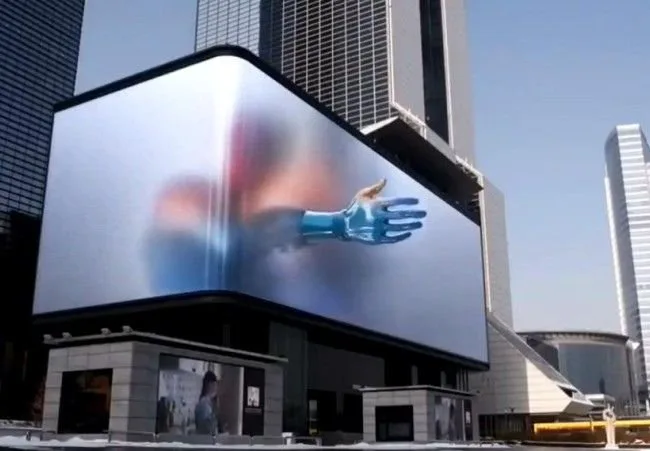

Commercial Real Estate & CBD
Office tower corners in downtown districts. Premium advertising assets for building owners — see our outdoor LED display range.
Landmark Buildings
Iconic facades and plazas where the screen becomes a city landmark. Custom geometry handled by our creative LED screen engineering.
OOH & Media Companies
High-value digital inventory for outdoor advertising networks with remote playback. See the LED advertising screen AD series.
Brand Campaigns & Events
Product launches, festivals and activations that need a shareable centerpiece. Built around your format via custom LED display solutions.
Transport Hubs & Airports
Airport terminals, metro plazas and transit corridors. See LED screen for airport and smart city screens.
3D LED Billboard Product Series
Every 3D LED billboard is built from one of these outdoor LED display series, customized with corner structures and your project specifications. All series support custom sizes, corner modules and full control system integration.

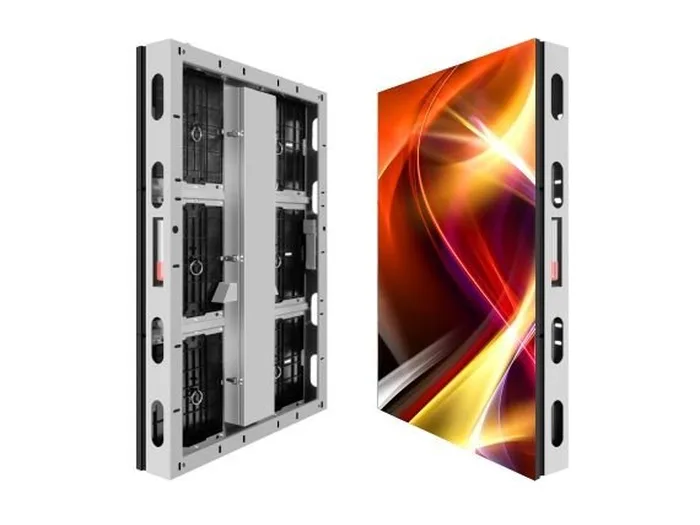

B Pro Series
DIP high-brightness outdoor billboard cabinets, built for large 3D corner screens.
Learn More
OK Series
High-level big signage boards — full color outdoor LED display for landmark projects.
Learn More
More LED Display Series
Outdoor full-color, indoor fine-pitch, video wall and special-shaped series — browse the full range.
Browse All ProductsIndoor vs Outdoor 3D LED Display
| Comparison | Indoor 3D LED Display | Outdoor 3D LED Billboard |
|---|---|---|
| Typical location | Mall atrium, lobby, showroom, cinema | Building corner, plaza, CBD facade |
| Pixel pitch | P1.8 – P4 | P4 – P10 (P5 / P8 common) |
| Brightness | 800 – 1,500 nits | 5,500 – 10,000 nits |
| Cabinet | Lightweight, front or rear service | Die-cast aluminum, IP65 front / IP54 rear |
| Viewing distance | 2 – 10 m | 10 – 50 m |
| Content style | Fine detail, brand storytelling | Big shapes, high contrast, bold motion |
| Cooling | Natural + low-power | Enhanced heat dissipation, air ducts or AC |
Which one fits your project?

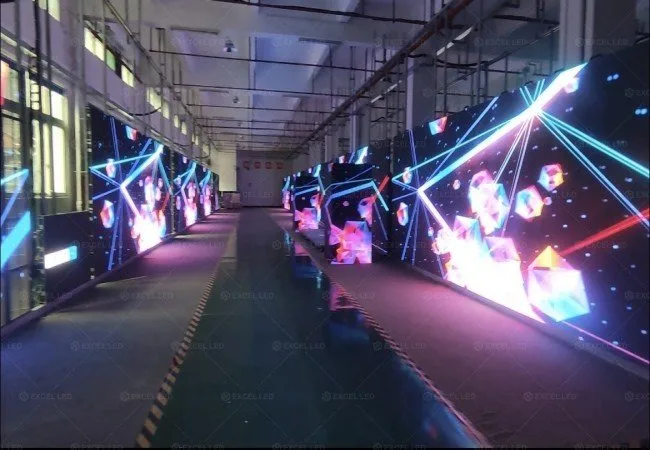

- Choose indoor when the audience is close: mall atriums, lobbies, retail interiors.
- Choose outdoor for street-facing corners and landmarks with viewing distances over 8 – 10 m.
- Both share the same corner/L-shaped structure principle and content workflow.
Structure, Heat Dissipation, Waterproofing & Maintenance
Outdoor 3D LED billboards run 24/7 in harsh environments. LEGIDATECH builds each project for years of reliable operation:
Steel Structure
Custom steel framework with wind-load calculation, corner reinforcement and anti-corrosion coating. Install drawings provided for every project.
Heat Dissipation
Die-cast aluminum cabinets, efficient power design and ventilation planning keep modules within operating temperature even under full sun.
Waterproofing
Outdoor modules rated IP65 front / IP54 rear with sealed connectors. Every outdoor screen passes a water spray test before shipment.
Maintenance
Front-service or rear-service module access, magnetic module mounting for fast swaps, and spare parts kits with every order.
Control System
Complete playback chain from video processor to sending/receiving cards and media players. See our LED control system range.
Factory Testing

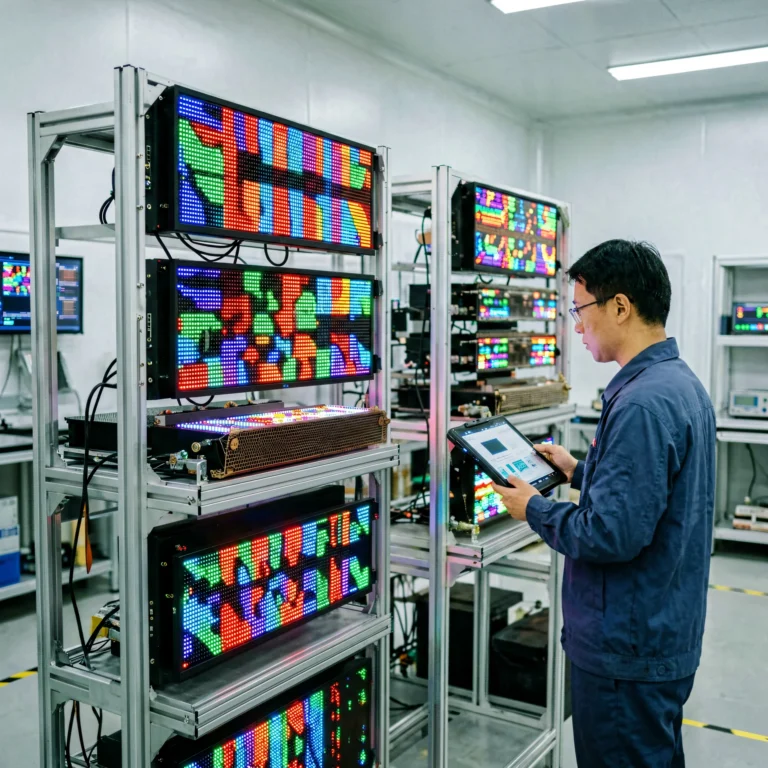

Full aging test (48+ hours), brightness and color calibration per module, and seam calibration after pre-assembly.
Waterproof test and 3D curved screen aging test at the LEGIDATECH factory.
3D LED Billboard Cost & Price Factors
There is no fixed price for a 3D LED billboard — every project is quoted individually from your site dimensions. These are the factors that determine the price:
Screen Size & Resolution
Total area is the base of the quotation. Larger screens and higher native resolution increase cost.
Pixel Pitch
Finer pitch (P4 vs P10) means more LEDs per square meter, higher module cost and sharper images.
Corner & Structure Work
Corner modules, curved corner processing and custom steel structure add engineering cost.
Brightness & LED Quality
High-brightness DIP or premium SMD LED chips cost more than standard outdoor modules.
Control & Playback
Video processor, sending/receiving cards, media players and CMS licensing.
Content, Installation & Logistics
3D content production, site installation, electrical work and international shipping.
Budget guide: a small indoor naked eye 3D display can start at a few thousand USD; a large outdoor corner billboard is typically in the tens of thousands of USD depending on the factors above. Send your dimensions and we will return an itemized quotation within 24 hours. See also the LED screen price guide for general pricing context.
Projects & Application Examples
Naked eye 3D billboards around the world follow a few proven content formats. These reference styles show what your screen can do — LEGIDATECH builds the hardware for each of them:

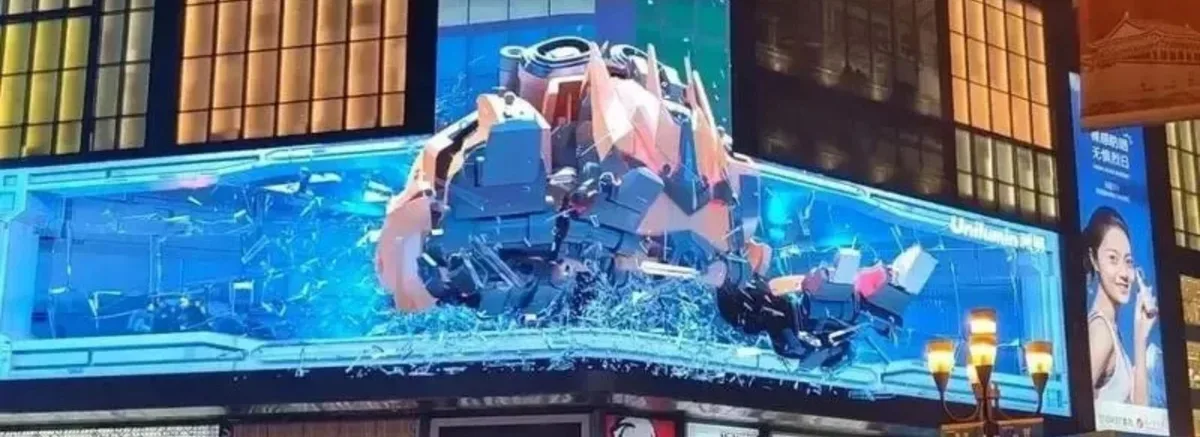

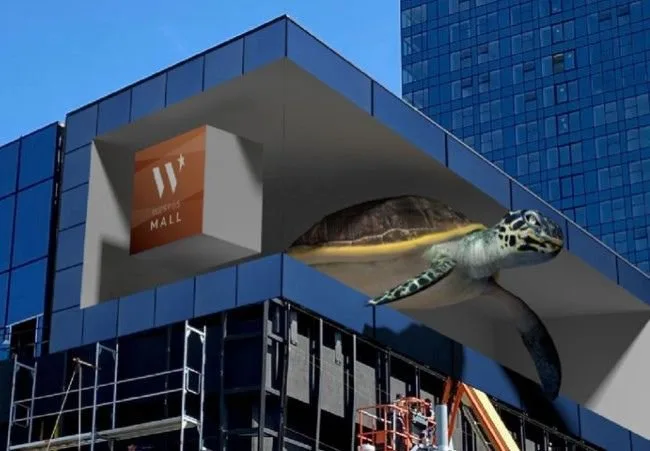

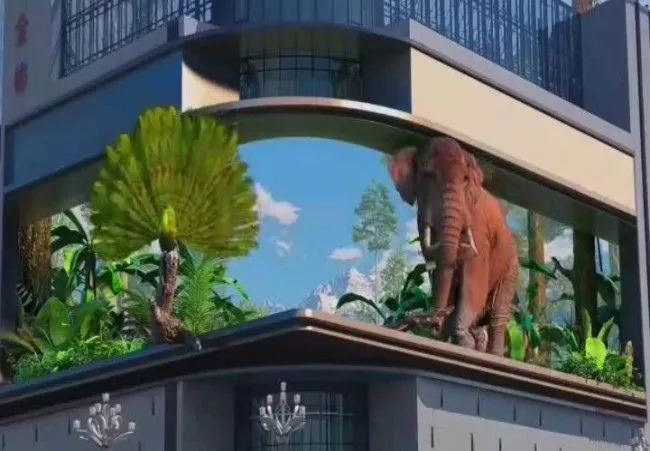

Animal Breakout — Corner Screen
Large animals “breaking out” of a corner screen is the classic format for building corners and plazas.

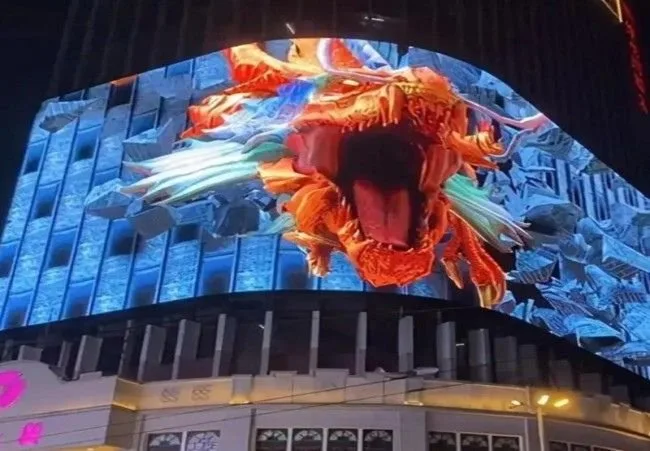

Cultural Symbols — Facade Screen
Dragons, gods and cultural mascots for festival campaigns and heritage-adjacent locations.

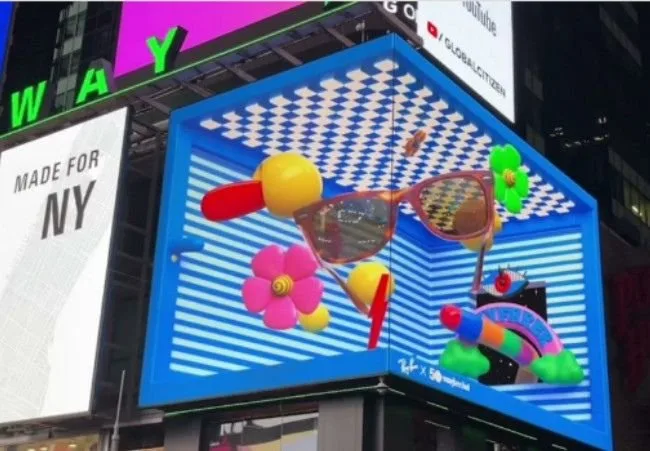

Product Surprise — Retail Campaign
Balloons, boxes and products floating out of the screen for retail and brand launches.
Hardware for your 3D project
LEGIDATECH manufactures the LED cabinets behind these formats — high-brightness outdoor series and fine-pitch indoor series, all customizable:
- B Pro series — DIP high-brightness outdoor billboard cabinets

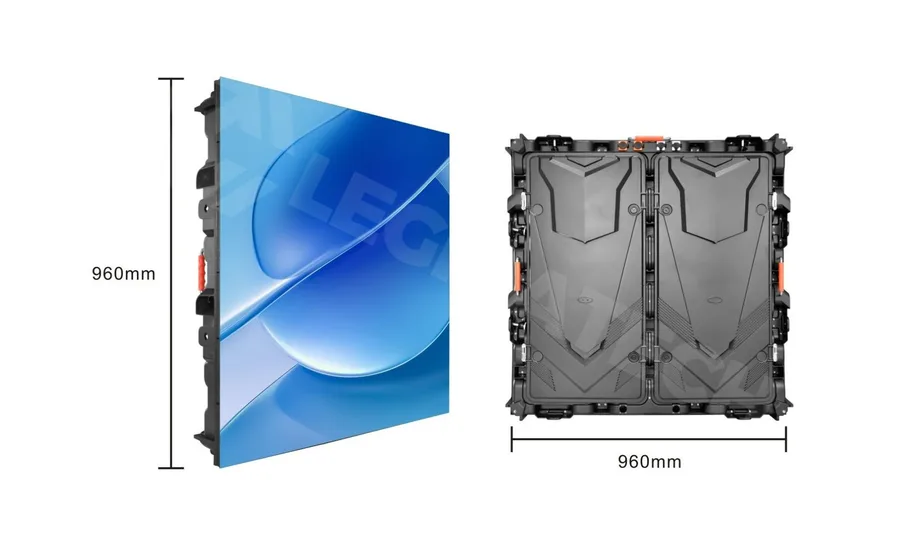

- AB series — outdoor digital signage for media networks
- AC series — outdoor bright LED screens for high-brightness billboards (P4–P10)
- P8 LED display — the most common pixel pitch for 3D LED billboards

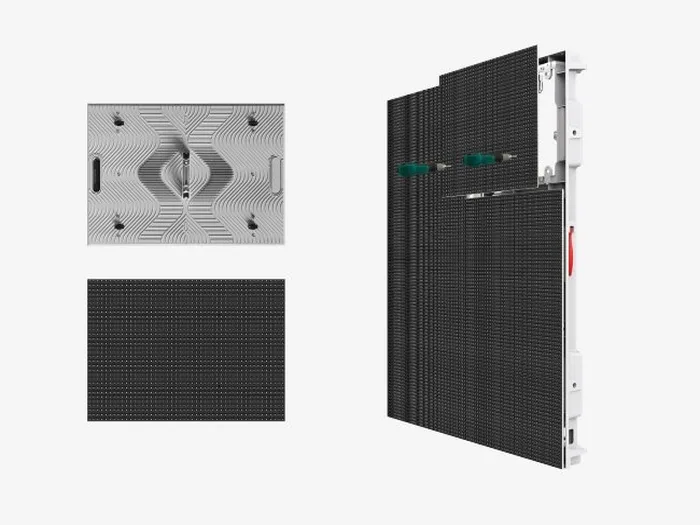

- AD series — advertising screen solutions

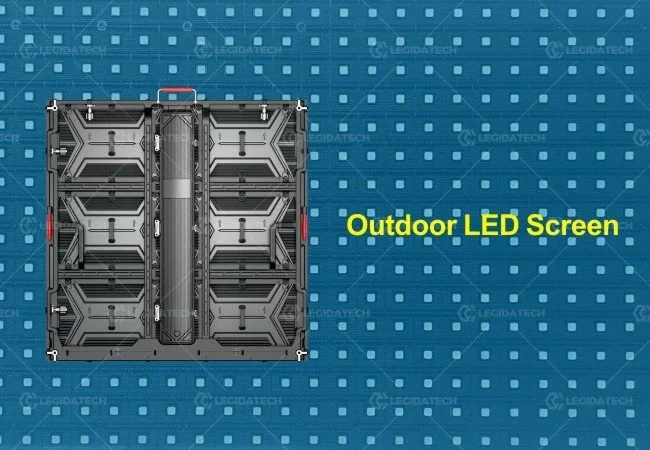

- OF series — energy-saving outdoor billboards
Why LEGIDATECH for Your 3D LED Billboard Project

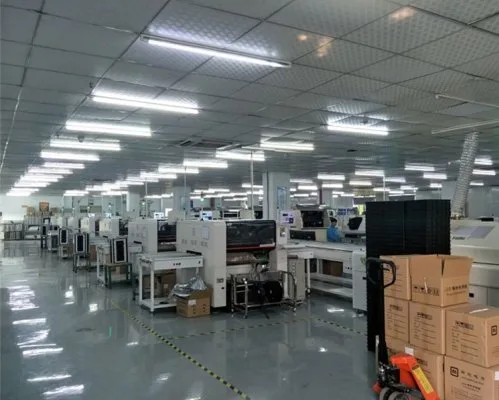

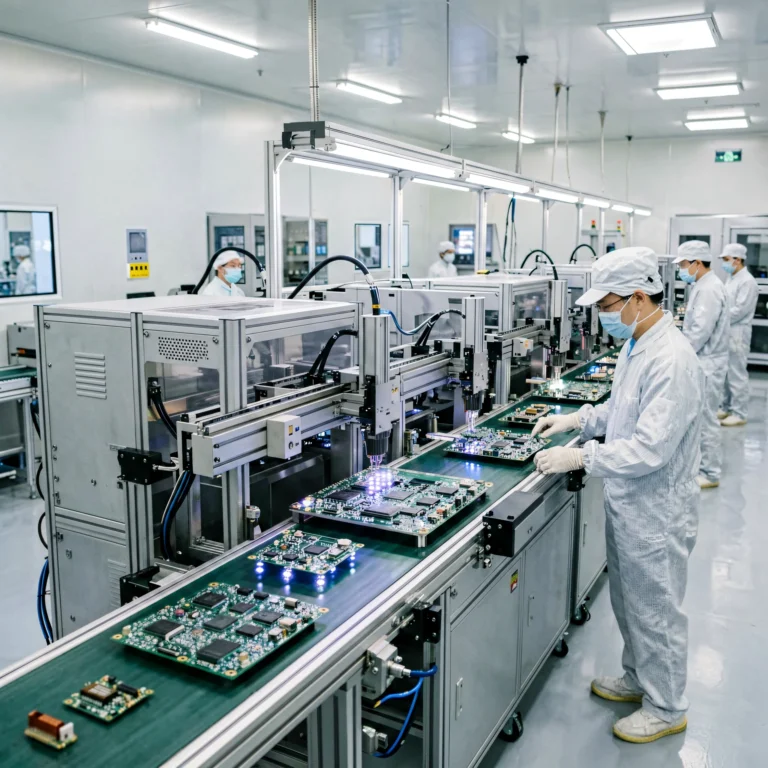

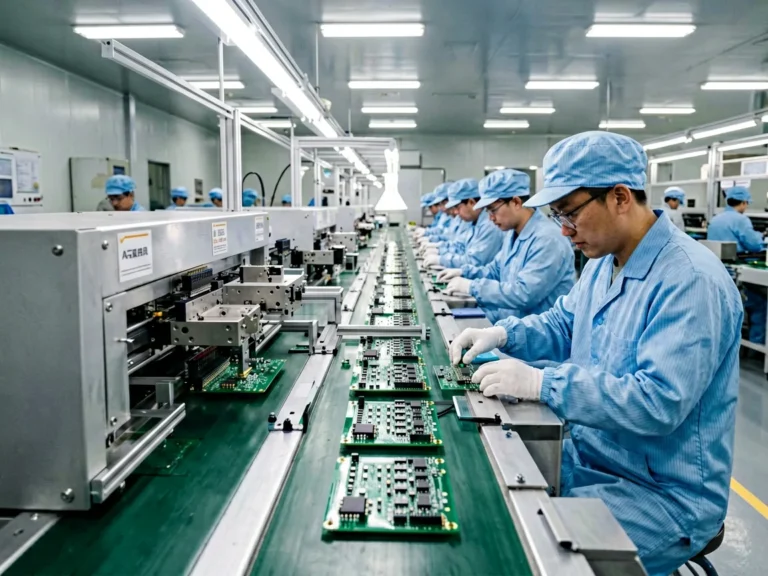

A Shenzhen-based LED display manufacturer with in-house engineering, production and project support.
Product Customization
Any size, any pitch, any corner angle. Cabinets, brightness and interfaces configured for your project specification.
Corner & Special Structure Engineering
Corner modules, curved corners and irregular facade layouts designed and manufactured in-house.
Factory Testing & QC
48-hour aging, waterproof testing, brightness/color calibration and seam inspection before packaging. See the tests above.
Packaging & Shipping
Flight-case or carton packaging per cabinet, marked and photographed before dispatch, delivered to your forwarder worldwide.
Project Support
Installation drawings, remote configuration, spare parts kits and technical support from quotation to commissioning.
One-Stop Sourcing
Screen, control system, steel structure drawings and content workflow — coordinated from a single LED display solution partner.
Naked Eye 3D LED Screen FAQ
What is a naked eye 3D LED screen?
A naked eye 3D LED screen is an LED display that creates a three-dimensional visual effect without 3D glasses. It combines a corner or L-shaped screen structure with specially produced 3D content, so viewers see depth and objects that appear to float out of the screen from a defined viewing position.
Do 3D LED billboards need special glasses?
No. Naked eye 3D LED billboards are designed to be viewed without glasses. The 3D illusion comes from the screen structure (corner or L-shaped) and the perspective of the content, not from stereoscopic eyewear.
How does a 3D LED billboard create the 3D effect?
Most naked eye 3D LED billboards use an L-shaped or curved corner structure combined with anamorphic 3D content. The corner breaks the flat surface and gives the image a second face, while the content is rendered from a perspective matched to the viewer’s position, creating the illusion of depth and objects extending beyond the screen.
What is the difference between a 3D LED billboard and a normal LED billboard?
A normal LED billboard is a flat screen that displays 2D content. A 3D LED billboard uses a corner or L-shaped structure and perspective-correct 3D content to create a naked eye 3D effect. The hardware can be similar, but the structure, content production and viewing design are different, which is why the two are planned as separate solutions.
Can a normal LED screen play 3D content?
A normal flat LED screen can play videos of 3D effects, but it does not create a true naked eye 3D illusion. The genuine naked eye 3D effect requires a corner or L-shaped structure plus content rendered for that geometry. This is the key difference between 3D-looking content and a true 3D LED billboard.
What pixel pitch should I choose for a 3D LED billboard?
For outdoor 3D LED billboards P4 to P10 are common, with P5 and P8 as the most popular choices. For indoor naked eye 3D displays, P1.8 to P4 is typical. The right pitch depends on screen size and the minimum viewing distance of the site.
Can the 3D LED screen be installed indoors and outdoors?
Yes. Indoor 3D LED displays use lower brightness (around 800–1500 nits) with fine pixel pitches, while outdoor 3D LED billboards use high brightness modules (5,500–10,000 nits) with waterproof cabinets rated IP65 front / IP54 rear.
What is the typical viewing distance for a naked eye 3D LED screen?
The best naked eye 3D effect is achieved when viewers stand roughly 1.5 to 3 times the screen height away from the corner of the screen. For a 6-meter tall billboard, the recommended viewing distance is approximately 10–20 meters.
How much does a 3D LED billboard cost?
The price depends on screen size, pixel pitch, corner structure, brightness, control system and content production. A small indoor naked eye 3D display can cost a few thousand US dollars, while large outdoor corner billboards are typically tens of thousands. Contact LEGIDATECH with your site dimensions for an exact quotation.
Can LEGIDATECH make custom corner or L-shaped screens?
Yes. LEGIDATECH designs and manufactures corner, L-shaped and curved 3D LED screens to your site geometry, including corner module processing, custom steel structure and installation drawings.
What content is needed for a naked eye 3D LED screen?
Naked eye 3D content is usually produced in 3D animation software such as Cinema 4D or Blender, rendered at the screen’s native resolution and viewport, then played back through a media player or video processor. LEGIDATECH can recommend content production partners or workflows.
What warranty and support does LEGIDATECH provide?
LEGIDATECH provides standard factory warranty on modules, power supplies and control systems, with technical documentation, remote configuration support and spare parts service for every 3D LED billboard project.
