What is an Indoor LED Video Wall?
Indoor LED video wall is a large screen used in indoor places that is spliced into boxes composed of LED lamps. It can be spliced into any size and shape to play text, pictures, and videos.
It is different from the role of a TV indoors. The size of a TV is limited and only rectangular, while the size and shape of the indoor LED wall are more free and can better meet the needs of large places.
In addition to excellent brightness and contrast, indoor LED displays are more energy-saving and have a longer lifespan. Indoor LED video walls are becoming more and more widely used in indoor environments.
Fixed LED Display Products
All series support factory-direct customization. Select your pixel pitch, cabinet size, and screen dimensions—we’ll engineer the solution to fit your space.
Aluminum box small-pitch indoor screens are more suitable for indoor places such as conference rooms and close-range viewing.
High resolution and brightness images make content more vivid and clear.

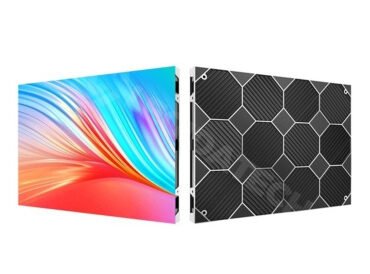

Front maintenance high-end small spacing indoor LED panel, double-sided flat, very suitable for wall installation
Cabinet size 500*1000MM, supports arc and right-angle designs
Privately designed, weighing only 2.5kg, it is the world’s thinnest and lightest magnetic indoor LED screen with a unique shape.
It is a product that meets the demands of quality and is reasonably priced and very cost-effective.
Pixel pitch: P2.604/P2.97/P3.91mm Excellent product among regular pitches
Powerful magnetic module, easy to install and maintain; seamless locking, the entire screen is smoother and more seamless
Pixel Pitch: P0.78/0.93/1.25/1.56 & P1.87 4k HD pre-maintained professional small-pitch indoor screen
First choice for bidding and control room projects
Magnetic installation, plug-in interface, convenient installation
The most popular P3.9 indoor LED panel currently has 300+ cases with excellent results
Cabinet Sizes of Indoor Fixed LED Wall
If the screen size is fixed, you can select the appropriate LED panel dimensions based on the dimensions of your installation site. If the size is adjustable, we recommend choosing Ehonor（480*320）, which offers the best value for money.
-
The 480*320 mm LED screen cabinet is a thin and light magnetic LED screen cabinet. With its unique size and structure that only requires three modules, it can adapt to various screen size configurations while being more efficient, stable, and energy-saving.
And the cabinet is very small, which can save transportation costs. With its compact design, it achieves efficient space utilization and shows unique visual effects, standing out in the bidding project.
-
The 500*500mm LED screen cabinet is one of the most common stage screen cabinet sizes on the market, designed for quick installation and disassembly. Its modular structure makes the installation process easy and convenient, suitable for various stage performances, conference activities and rental markets.
With its standardized size, the 500*500 mm LED cabinet can be easily and seamlessly spliced with other cabinets to form a large display screen, presenting an excellent visual experience to the audience.
-
640×480mm Indoor LED PanelThe 640*480mm LED screen cabinet is uniquely composed of six modules. This design not only significantly improves the brightness and clarity of the display effect, but also greatly enhances the shock resistance and durability of the screen. Its 3:2 ratio design can better show the excellent display effect of the LED screen.
Whether in indoor exhibitions, conference rooms or other scenes that require visual display, this cabinet can provide a good experience. Reasonable structural design makes installation and maintenance work more efficient
-
600×337.50mm Indoor LED ScreenThe 600×337.5mm led screen specification is usually modular in design, which is easy to replace and maintain, reducing maintenance costs and time. It is also very suitable for wall installation and can be flexibly combined into different display layouts to meet specific display needs.
LED screens of this size are generally thin and light in design, easy to install and maintain, and can save space. Indoor LED screens can provide high-resolution display effects, suitable for displaying delicate images and videos, ensuring that the audience can see the content clearly.
Indoor LED Wall Installation Options
All LEGIDATECH indoor fixed screens ship with a mounting structure. Choose the method that fits your space — or send us your floor plan for a custom solution.
Have an unusual space—curved wall, sloped ceiling, or non-standard dimensions? Send us your floor plan, and we’ll design a custom mounting solution at no extra charge.
-
Wall MountThe most common installation method for permanent indoor LED walls. Cabinets are fixed directly to a concrete or steel-framed wall using our included mounting bracket system — no external structure required.
Maintenance: Front access recommended (Ehonor / EDI / ESL all support front maintenance)Wall load requirement: min. 30 kg/m² -
Ceiling HangScreens are suspended from the ceiling using steel cables or a rigging truss, ideal for spaces where wall mounting is not possible — open lobbies, atriums, or where the screen needs to be visible from multiple directions.
Maintenance: Rear access required — plan for service walkway or scissor liftCeiling load: verify structural engineer sign-off before installEhonor cabinet: only 2.7 kg — safe for most commercial ceilings -
Floor StandA freestanding frame supports the screen from the ground — no drilling, no wall fixings. Easily relocated if the display position needs to change. Suitable for semi-permanent retail installations or flexible office environments.
Maintenance: Front access — modules replaceable without moving the screenFloor space: allow 0.3–0.5m depth behind screen for frame and cablingQuickest to install — no structural work required
Applications of Indoor Fixed LED Screens
From permanent video walls to live event stages — see how different buyers use indoor fixed LED screens.
-
“Our projector washes out whenever the blinds are open.”
LED screens deliver consistent brightness in any lighting condition — no warm-up, no bulbs, no bezels. Display presentations, live video feeds, and data on a seamless wall surface that works first time, every time.
Recommended: P1.5 – P2.5 fixed install
-

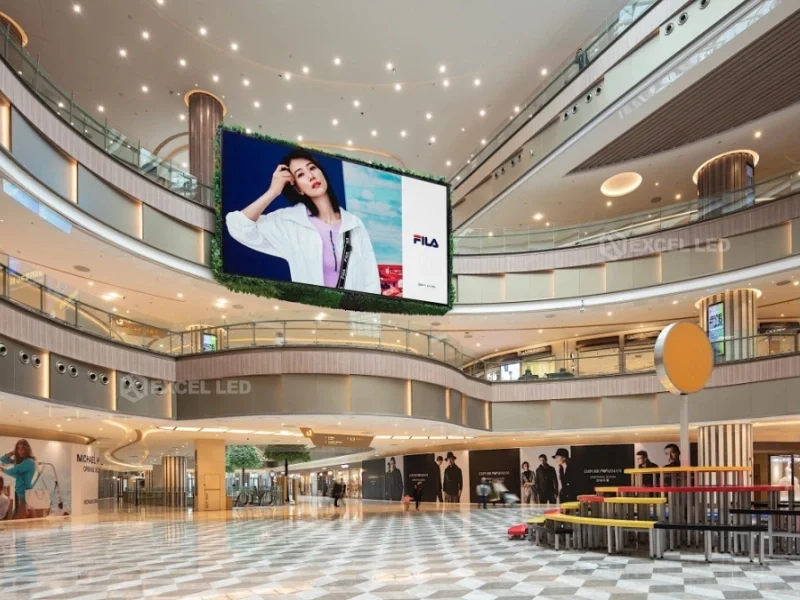

“We need signage that stops shoppers in their tracks.”
Full-colour video content placed at entrances, atriums, and activity zones drives foot traffic and dwell time. Update promotions remotely in real time — no print costs, no downtime between campaigns.
Recommended: P2.5 – P3, column or wall mount
-
“Our congregation can’t see the lyrics from the back rows.”
Mounted behind the pulpit, an LED screen ensures every seat has a clear view of lyrics, scripture, and live video — with soft, adjustable brightness that suits a worship environment without distraction.
Recommended: P2.5 – P3 fixed install
-

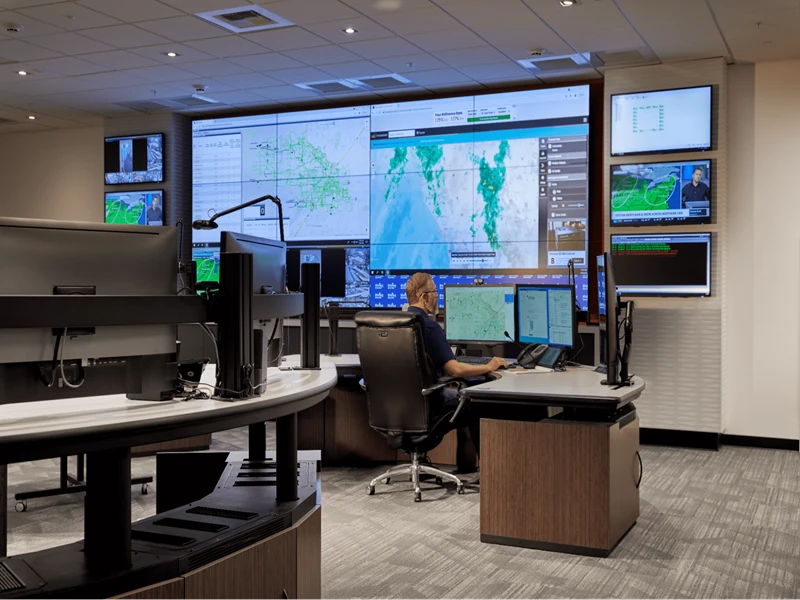

“Operators need to read data clearly from multiple angles.”
Small-pitch LED video walls support 24/7 operation with no single point of failure. Wide viewing angles, high refresh rates, and seamless splicing make multi-source data easy to monitor across the entire team.
Recommended: P1.5 – P1.8 fixed wall -
“Passengers need real-time info visible from far away.”
LED screens publish flight data, wayfinding, and advertising simultaneously — all updated in real time from a central system. Slim cabinets integrate cleanly into terminal architecture without heavy frames.
Recommended: P2.5 – P3, ceiling or wall
Features of Indoor Digital Display
Indoor digital display has become an increasingly popular media carrier, which is inseparable from its own characteristics.
High brightness and clarity
- A wider perspective
- Customizable, more flexible sizes
- Ultra-thin design saves space
- Energy saving and environmental protection, longer life
Digital display has gradually become a symbol of technology, and it is generating more and better indoor screens.
Unique Advantages of Indoor LED Panels
LEGIDATECH’s indoor LED display wall all support COB (Chip on Board) and HOB (Hybrid on Board) processing technologies, which make LED screens more efficient and stable.
The LED screen cabinet is designed to be thin and light, making it easy to install and carry, while the magnetic module design makes maintenance more convenient.
In addition, LEGIDATECH’s indoor fixed LED display can be customized into poster screens and all-in-one conference machines to achieve multi-purpose functions on one screen and are suitable for a variety of scene needs.
Indoor LED Screen Lamp Beads
COB LED Screen
The LED display screen produced by LEGIDATECH is made of 1.5mm thick galvanized iron plate. The advantage is low manufacturing cost, and it can be customized to produce outdoor LED display screens of different shapes according to the needs of different scenes, such as outdoor cylindrical LED display screens, spherical LED display screens, etc. This means that the size of such LED display screens can be freely customized.
HOB LED Screen
Die-cast aluminum cabinets are often used in outdoor LED display screens. They are characterized by high strength and precision, light weight, and more importantly, seamless splicing, which can have better effects on screen display. The die-cast aluminum LED display screen adopts one-time molding of the mold, and the flatness of the cabinet is more guaranteed, which basically solves the problem of cabinet joints; the humanized design is more convenient and lighter to install, and the cabinet joints and connecting wires are more reliable; the weight is light, and the hoisting structure is adopted, which is more convenient and firm to install; the signal and power connection between the cabinets adopts concealed connection, and no traces of connecting wires can be seen after installation. (OK series cabinet pictures can be placed)
SMD LED Screen
Magnesium alloy is an alloy composed of magnesium and other elements. The characteristics of outdoor LED display screens made of magnesium-aluminum alloy are: low density, high strength, good heat dissipation, good shock absorption, greater impact load bearing capacity than aluminum alloy, and good resistance to organic and alkali corrosion. Magnesium alloy is used as outdoor LED display cabinet with high cost performance, easy installation, and excellent heat dissipation, which makes the product more market-advantaged. The disadvantage is that the cost of magnesium alloy cabinet is also higher than other cabinets.
Why Choose LEGIDATECH?
LEGIDATECH has a complete production line, mature LED technology, mid-to-high-end quality assurance and responsible after-sales service.
From customer ordering to production, shipment and transportation, we will let customers know the status of the goods through pictures or videos, and maintain close communication with customers and provide timely feedback.
- Judging from experience, LEGIDATECH has been rooted in the research, development and sales of LED displays for 13 years.
- It has completed more than 1,000 display screen projects with more than 80 countries around the world, and the quality is guaranteed.
- LEGIDATECH has stores on Alibaba and Made in China. This is an honest supplier, not a shell company.
LEGIDATECH follows the principle of convincing people with heart and has always maintained good friendship with new and old customers.
How to Choose an Indoor LED Display？
First, you need to understand the performance of the product, including brightness, refresh, waterproof, etc. Indoor brightness is 800-1200 nits, refresh rate is 3840HZ, and waterproof IP40.
Secondly, you need to understand the product’s materials, lamp beads, control system, power supply, etc., as well as whether it is guaranteed and how long it will last.
There are several installation methods for indoor LED screens, such as wall-mounted installation, standing installation, hoisting installation, box-less installation, etc. Some even require arc-shaped installation.
However, a product may not necessarily support all installation methods, so you need to inform the supplier in advance of the installation method you need.
Price is the third most important factor. It is not recommended to buy products according to your budget from the beginning to avoid buying inferior products.
After the first two elements are met, consider whether the price of the product is within the budget, or whether qualified products can be purchased through bargaining or by appropriately increasing the budget.
The prices of the same product from different suppliers vary greatly and need to be treated with caution.
- Cases Show
- Videos Show
- Related Articles
A complete introduction of indoor LED display-EHONOR
P2.5 Conferance All-in-one Machine LED display to Philippine-quick guide
Are P2.5 LED screen and P3 LED panel the same?
P1.86 640×480mm indoor fixed LED display to USA
P1.875 Indoor LED Screen in South Africa
Church LED Screen for Salvation Ministries
Indoor Led Display Screen Buying Guide
Understanding Cob Led Display A Complete Guide
What Is The Best Aspect Ratio For LED Displays: 16:9 Or 4:3?
It depends on your viewing distance. As a general rule, multiply your pixel pitch by 1,000 to get the minimum recommended viewing distance in millimetres.
Practical guide for conference rooms:
- Room width under 5m → P1.5 or P1.8 (EDI / Ehonor series)
- Room width 5–8m → P2 or P2.5 (Ehonor / ESL series)
- Room width over 8m → P2.5 or P3
If your audience sits at mixed distances — some close, some far — choose the pitch suited to the closest viewer, not the average. Most conference rooms land on P2 or P2.5 as the sweet spot between image quality and budget.
Yes. All three of our indoor fixed series — Ehonor, EDI, and ESL — support custom dimensions. Send us your wall width and height, and we’ll calculate the exact cabinet configuration to fill the space with no awkward gaps or borders.
What we need from you:
- Wall dimensions (W × H in mm)
- Preferred pixel pitch
- Installation method (wall mount / ceiling hang / floor stand)
- Any obstructions (pillars, windows, cable trays)
Our engineering team will respond with a layout drawing and quote within 24 hours.
Front maintenance means modules and power supplies can be accessed and replaced from the front of the screen — no need to access the back of the wall. This is essential when the screen is mounted flush against a wall with no space behind it.
Rear maintenance requires access from behind the screen — either through a service corridor, a hinged panel in the wall, or a scissor lift for ceiling-hung screens.
All Ehonor, EDI, and ESL series screens support front maintenance, making them the preferred choice for permanent wall installations where rear access is not practical.
Our indoor fixed LED screens are rated for ≥ 100,000 hours of operation — equivalent to over 11 years of 24/7 use, or more than 25 years at 10 hours per day.
In practice, lifespan depends on usage hours and environment. We recommend replacing modules when brightness drops below 70% of the original value. With proper maintenance, most installations remain in service for 10+ years.
All products come with a 3-year warranty covering manufacturing defects, and we stock spare parts for every active series.
Yes. All LEGIDATECH indoor fixed LED screens are certified to CE, RoHS, and FCC standards before shipment. Every production batch undergoes aging tests and full pixel inspection at our factory.
We can provide original certificates on request — please mention this when submitting your inquiry and our team will include them with your quotation package.
COB (Chip-on-Board) bonds LED chips directly to the PCB without individual lamp packaging. Compared to standard SMD technology, COB offers:
- Higher pixel density — enables finer pitches like P1.25 and P1.5
- Better shock resistance — no individual lamps to knock off during handling
- Smoother surface — easier to clean, no gaps between lamps
- Lower reflection — better contrast in bright ambient lighting
Our Ehonor series supports COB, HOB, and SMD modules — you can choose the technology that fits your budget and environment.
