Church LED Screen & Video Wall: Complete Buyer’s Guide 2026
Looking for a church LED screen that enhances worship without breaking the budget? LEGIDATECH has installed 1,000+ church LED video walls across 60+ countries — from small 200-seat chapels to 5,000-seat mega-churches. Factory-direct pricing, sizes from 2m×3m to 20m×10m, pixel pitches from P1.5 to P4.8. Free design consultation with every inquiry.
3 Types of Church LED Screens
Not all church LED screens are the same. Your choice depends on where the screen goes and what it needs to display. Here are the three most common configurations we install in churches worldwide. Each LED screen for church use case below is tailored to a specific worship environment.
🎤 Main Stage Screen
The primary display behind or above the pulpit — used for sermon lyrics, Bible verses, live camera feed, and video playback. This is the most important screen in your sanctuary.
- Pixel Pitch: P2.5 – P3.9, 4K-capable
- Typical Size: 4m×3m to 8m×5m
- Budget: $5,000 – $18,000

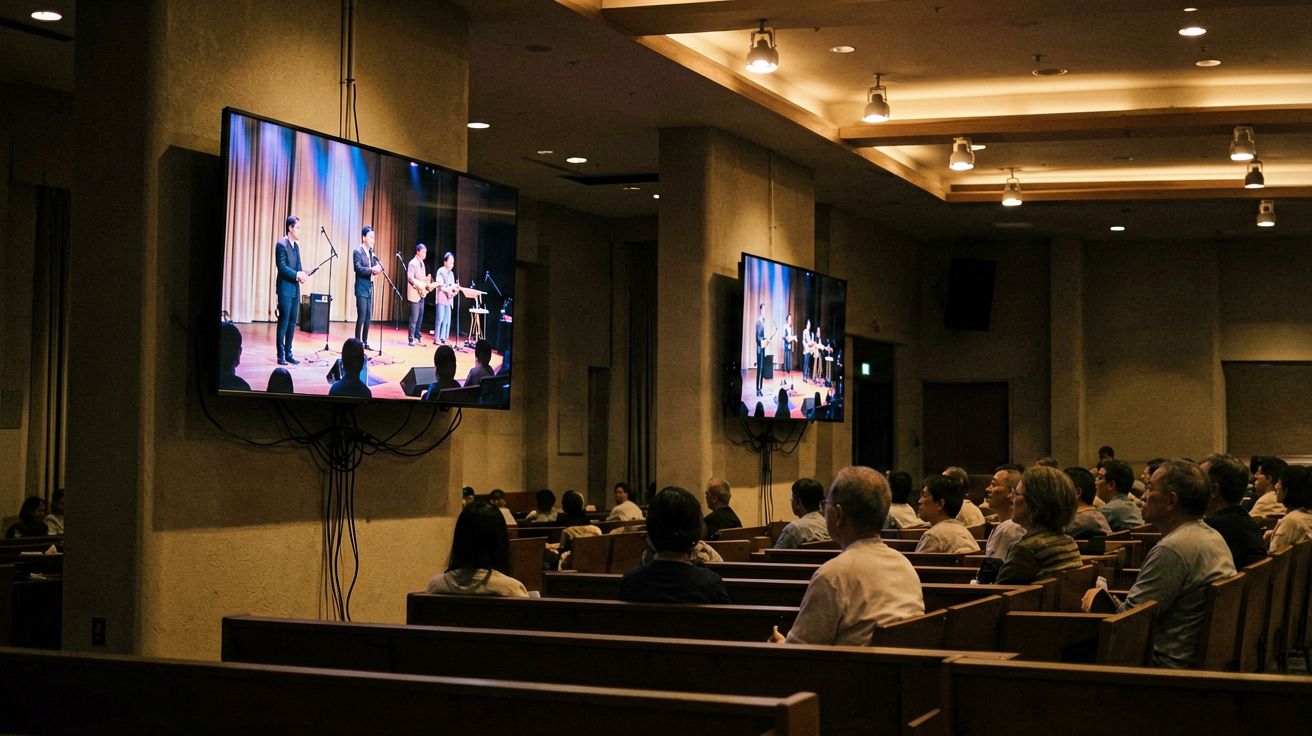

📺 Side Screens & Confidence Monitors
Smaller screens mounted on side walls or columns so people in the back rows or side sections can see clearly. Often called confidence monitors when facing the worship team.
- Pixel Pitch: P2.9 – P4.8
- Typical Size: 2m×2m to 3m×3m per screen
- Budget: $2,000 – $6,000 each
🏢 Lobby & Fellowship Hall Display
Screens for announcements, welcome messages, event schedules, and live service overflow. Installed in foyers, fellowship halls, and outdoor areas of the church campus.
- Pixel Pitch: P2.5 – P4 (indoor), P4 – P6 (outdoor)
- Typical Size: 2m×1.5m to 4m×2.5m
- Budget: $1,500 – $5,000
How to Choose the Right Church LED Screen
The biggest mistake churches make is buying a screen that’s too small for the room or the wrong pixel pitch for the viewing distance. Use this guide to match your sanctuary to the right specifications. A well-chosen church LED display transforms worship by ensuring lyrics, scripture, and video are clear to every seat.
Step 1: Match Screen Size to Your Sanctuary
| Seating Capacity | Recommended Main Screen | Recommended Side Screens | Pixel Pitch | Estimated Budget |
|---|---|---|---|---|
| 100 – 300 seats | 3m×2m to 4m×3m | 2m×2m (1 or 2 screens) | P3.9 | $4,000 – $9,000 |
| 300 – 800 seats | 5m×3m to 6m×4m | 3m×2m (2 screens) | P2.9 – P3.9 | $8,000 – $16,000 |
| 800 – 2,000 seats | 6m×4m to 8m×5m | 3m×3m (2 screens) | P2.5 – P2.9 | $14,000 – $28,000 |
| 2,000 – 5,000 seats | 8m×5m to 12m×7m | 4m×3m (2 – 4 screens) | P1.9 – P2.5 | $25,000 – $55,000 |
| 5,000+ seats | Custom design | Custom design | P1.5 – P2.5 | Contact us |
Step 2: Understand Pixel Pitch vs Viewing Distance
| Pixel Pitch | Optimal Viewing Distance | Best For | Price per m² |
|---|---|---|---|
| P1.5 – P1.9 | 1.5m – 5m (5 – 16 ft) | Small chapels, close-up viewing, high-end sanctuaries | $900 – $1,400 |
| P2.5 – P2.9 | 2.5m – 8m (8 – 26 ft) | Mid-size churches — the most popular range | $700 – $1,000 |
| P3.9 | 4m – 12m (13 – 39 ft) | Large sanctuaries, budget-friendly option | $500 – $750 |
| P4.8 | 5m – 15m (16 – 49 ft) | Mega-churches, outdoor overflow, fellowship halls | $400 – $600 |
Best Church LED Screen Product Lines
All six church LED video wall product lines below are proven in church installations worldwide. The right choice depends on your budget, installation method, and how often you need to move the screen. Click any product for details, or use the quote buttons for pricing.
💰 H Series — Best Value
Our most popular church LED screen. 500×500mm die-cast aluminum cabinet, lightweight (7.5 kg per panel), 3-hour install time for 100m². 1,000+ church installations globally.
Pitch: P2.6 / P2.9 / P3.9 | Cabinet: 500×500mm, 7.5 kg
⭐ E-Pround — Best Overall
Ultra-thin (29mm) and ultra-light (6.5 kg), the best balance of image quality, ease of installation, and price. Our engineers’ top recommendation for churches.
Pitch: P2.6 / P2.9 / P3.9 | Cabinet: 500×500mm, 6.5 kg
🔧 EHONOR — Easiest Maintenance
Front-service with 6 strong magnets — no screws, no tools. 480×320mm module for granular sizing. Perfect for flush wall mounting.
Pitch: P1.5 / P1.8 / P2 / P2.5 | Cabinet: 480×320mm, magnetic
🏆 EDI — Premium Small Pixel
640×480mm cabinet with SMD 3-in-1 LED. Finest pixel pitches for churches wanting the sharpest image — ideal when the front row sits close.
Pitch: P1.2 / P1.5 / P1.8 / P2 / P2.5 / P3 | Cabinet: 640×480mm
🎵 Magic Series — Rental / Multi-Campus
Rental-grade with flight cases. Signal and power backup for zero-blackout reliability. Perfect for churches that host events or share between campuses.
Pitch: P2.6 / P2.9 / P3.9 / P4.8 | Cabinet: 500×500mm
🖥️ All-in-One — Plug & Play
108″ to 165″ smart LED display. No video processor, no complex wiring. Install and use in under 1 hour. Ideal for smaller churches and classrooms.
Size: 108″ / 135″ / 165″ | Resolution: Full HD to 4K
Tell us your sanctuary size and budget — we’ll recommend the best product for your needs
Church LED Screen Projects Worldwide
1,000+ churches trust LEGIDATECH for their LED video wall for church projects. Here are 6 representative projects from different regions and church sizes.
🇬🇷 Greece — Orthodox Church
Product: H Series P3.9
Size: 2m×3m × 2 screens (48 panels)
🇿🇦 South Africa — Pentecostal Church
Product: E-Pround P2.6
Size: 124 panels total
🇪🇸 Spain — Catholic Church
Product: EHONOR P3.9
Size: 6m×3m (72 panels)
🇮🇹 Italy — Evangelical Church
Product: EDI P2.5
Size: 4m×3m + 3m×2m × 2 (96 panels)
🇲🇽 Mexico — Community Church
Product: E-Pround P2.9
Size: 4m×3m + 3m×2m × 2 (96 panels)
🇬🇧 United Kingdom — Anglican Church
Product: H Series P3.9
Size: 3.5m×7m
Why Churches Choose LEGIDATECH
🏭 Factory-Direct Pricing — Save 20 – 40%
When you buy from LEGIDATECH, you’re buying directly from our 10,000m² Shenzhen factory. No distributors, no resellers, no middlemen. The same LED cabinet that costs $1,200/m² through a local AV integrator costs $700 – $900/m² factory-direct.
Every church screen includes a complete accessory kit: receiving cards, power supplies, cables, spare modules, and NovaLCT configuration software — no hidden add-ons. Typical savings: $2,000 – $6,000 per installation.
⛪ 1,000+ Church Projects — We Understand Worship
Church LED screens are not the same as concert or retail screens. We understand that:
- Your screen needs to display static text (lyrics, verses) clearly — not just fast-moving video
- Color temperature must be warm and natural (5,000K – 6,500K), not the cold blue of outdoor billboards
- Brightness should be 500 – 800 nits for indoor worship; 1,500+ nits is overkill and uncomfortable
- Control must be simple enough for volunteers, not just professional AV technicians
🔧 End-to-End Support — Design to Installation
We don’t just ship boxes. Every church project includes:
- Free CAD design — 3D rendering of your screen in your sanctuary
- Pre-configured system — receiving cards mapped, brightness calibrated, .rcfg file pre-loaded
- Remote installation guidance — video call support during your install
- Volunteer training materials — simple PDF guide for your media team
- 3-year warranty with 48-hour replacement part dispatch
Church LED Screen Installation Guide
Installing a church LED wall is simpler than most people think. Here’s the process from unboxing to first service.
Plan Your Layout & Structure
Decide where the screen mounts: wall-mounted (permanent, flush against wall), suspended from ceiling (common in high-ceiling sanctuaries), or floor-standing on a truss frame (flexible, no wall modification needed). We provide CAD drawings showing exact cabinet positions, steel frame dimensions, and mounting points. Power requirement: ~0.3 – 0.5 kW per m² — a 15m² screen needs a standard 220V/110V 16A circuit.
Assemble the Cabinets
Each cabinet clicks into place with quick-lock mechanisms. For our H Series, 3 people can assemble 100m² in ~3 hours. Cabinets connect left-to-right and top-to-bottom. Power and data cables daisy-chain between cabinets — no individual home runs needed. All cabinets are pre-labeled by position before shipping.
Connect the Video Processor & Test
One Ethernet cable from the video processor to the first cabinet — the signal cascades through all remaining cabinets automatically. Load the pre-configured .rcfg file (we ship this on a USB drive). Test with static text (lyrics/scripture) and video before final tightening. Check for dead pixels, color uniformity, and brightness consistency across the entire wall.
Train Your Media Team
We provide a simple 1-page quick-start guide covering: how to switch between your computer (ProPresenter/EasyWorship) and camera feed, how to adjust brightness for service vs rehearsal, and how to power on/off safely. Most church volunteers are comfortable operating the screen within 30 minutes of hands-on practice.
Church LED Screen Frequently Asked Questions
How much does a church LED screen cost?
Short answer: Most church LED screens cost between $3,500 and $18,000 depending on size and pixel pitch. A typical 5m×3m P3.9 screen with all accessories is approximately $8,000 – $11,000 factory-direct.
The total cost includes: LED cabinets, receiving cards, power supplies, cables, video processor, steel mounting frame, and shipping. We provide an all-inclusive quote — no surprise add-ons. Compared to buying through a local AV integrator (who typically marks up 30 – 50%), factory-direct saves churches $2,000 – $6,000 on an average installation.
What pixel pitch is best for an LED screen for church use?
Short answer: P2.9 or P3.9 is ideal for most churches. P3.9 works well for 300 – 800 seat sanctuaries where the closest viewer is 4m away. P2.5 or P2.9 is better if the front row is closer than 3m.
The rule of thumb: optimal viewing distance in meters = pixel pitch number. So P3.9 = best viewed from 3.9m or further. For text-heavy content (lyrics, Bible verses), go one step finer than the formula suggests — crisp text matters more than video sharpness in worship settings.
Can church volunteers operate a church LED display?
Short answer: Yes. The LED screen connects to a computer running ProPresenter, EasyWorship, or similar church presentation software — the same software your media team already uses. The LED screen simply replaces your projector as the display device.
We provide a 1-page quick-start guide and can do a 15-minute video call training session with your media volunteers. Most teams are comfortable within one rehearsal.
LED screen vs projector — which is better for church?
Short answer: LED screens win on brightness, lifespan, and maintenance-free operation. Projectors win on initial cost for very large images (above 8m wide). For most churches, LED is the better long-term investment.
Key comparison: LED screens last 100,000 hours (10+ years) with zero consumables. Projectors need $300 – $800 lamp replacements every 2,000 – 4,000 hours. LED works with stage lights on — no need to dim the sanctuary. LED has no fan noise. The break-even point is typically 3 – 5 years, after which LED is cheaper.
How long does shipping take for a church LED screen?
Short answer: Air freight: 5 – 10 days to most countries. Sea freight: 25 – 40 days (cheaper for large orders). Production time: 7 – 15 days after order confirmation.
We ship to churches worldwide — USA, UK, Europe, Africa, Southeast Asia, Australia, and South America. All shipments are fully insured. We handle customs documentation. For urgent projects, we can air-freight partial shipments.
What warranty and support do you provide?
Short answer: 3-year full warranty on all components. 48-hour replacement part dispatch. Lifetime technical support via WhatsApp, email, or video call.
We maintain spare parts inventory for all current product lines. Even after the warranty period, replacement modules and power supplies are available at factory cost. Most issues can be diagnosed remotely — in 90% of cases, the fix is a simple module or power supply swap that any volunteer can do in under 5 minutes.
Can I become a local distributor for church LED screens?
Short answer: Yes — we actively partner with church AV integrators and regional distributors. After your first successful purchase, we offer distributor pricing (additional 10 – 18% discount), priority production slots, and marketing support.
Several of our current partners started as church customers who were so satisfied they began offering our screens to other churches in their region. Contact us to discuss distributor pricing →
Do you offer on-site installation for churches?
Short answer: We provide remote guidance as standard. On-site installation by our engineers is available for projects above $30,000, at cost (flight + accommodation + $300/day).
For most church projects, remote guidance is sufficient — we walk your team through the process via video call. The cabinets are designed for tool-free assembly. For very large or complex installations (10m+ wide screens, curved designs, outdoor church displays), we recommend on-site support.
