LED Dance Floors - EDF series

  • Floor tile screen with built-in sensor system
  • Can follow human activity to present images
  • Enhances immersion and active participation
  • A unique journey into the magic of interactive displays

Commercial Floor tile screen LED display Features and details

Interactive floor tiles are an innovative technological advancement that has revolutionized the way people experience and interact with their surroundings.

These floor led screen, also known as interactive screen tiles or interactive projection floor tiles, are equipped with advanced and projectors that allow for various interactive features and functionalities.

Flexible and customized size

One of the key features of interactive floor tiles EDF series is their versatility in terms of size and customization. These tiles come in various, from small tiles that can be easily placed in small spaces, to larger floor led screen that can cover a significant area. allows for the creation of interactive floor spaces that are tailored to specific needs and preferences.

Additionally, the tiles can be customized with different designs, colors, and patterns to create visually appealing and engaging interactive experiences.

Safe load-bearing, impact resistance.

High elasticity coefficient, 2T/㎡ load bearing, high impact strength, each square can carry up to several tons of weight, not easy to damage; high strength special material panel, frosted non-slip, to ensure pedestrian safety.

Take the live broadcast/recorded scene of TV station as an example, the floor tile screen will often be placed on the props, and the TV station usually needs to stand in front of the stage for pre-screening work. Good load-bearing design can guarantee the stability and reliability of the TV station’s work.



Interactive Intelligent Design

The most impressive features of interactive floor tiles is their ability to sense and react to the presence and movements of the audience. Using advanced sensors, the tiles can detect the presence of people and track their movements in real-time. for interactive experiences where the projected images or visual effects on the floor tiles can respond to the audience’s actions.

For example, if someone steps on a certain part of the floor led screen, the tiles can project a ripple effect or display an animation that interacts with their movement. This creates a highly immersive and engaging experience that captivates and entertains the audience.



Floor LED Screen Waterproof

Interactive dance floor screen EDF series are designed to be waterproof and moisture-resistant, making them suitable for outdoor environments and ensuring their longevity.

These tiles undergo a rigorous waterproofing process and are sealed with high-quality silicone gel to prevent water damage and moisture penetration.

This enables floor led screen to withstand rain, snow, and other outdoor conditions without compromising their functionality or performance.



High contrast

This interactive floor tiles EDF series is their high color contrast and uniform display. These interactive led floor panels are designed to have a low brightness and high gray scale, which ensures that the projected images or visual effects are and vibrant, even in bright or dimly lit environments.

The high contrast and uniform display of colors contribute to the overall visual appeal of the interactive experience and help create a captivating and mesmerizing atmosphere.



In terms of installation, interactive floor tiles offer flexibility and adaptability. interactive led floor panels can be installed using different methods, such as floor mounting or track installation, depending on the specific requirements of the space.

The height of the led floor tiles can also be adjusted to accommodate different settings and preferences, ensuring that they seamlessly integrate into the existing environment.

LED dance floor screen parameter

Part Item P3.91 P4.81 P6.25
Module Pixel Arrangement Vertical Arrange
Pixel Pitch 3.91mm 4.81mm 6.25mm
Color 1R1G1B
LED  Lamp SMD1921
Module Pixel 65536dots/m² 43264dots/m² 25600dots/m²
Module /Cabinet Size Module Size 250mm×250mm
Module Resolution 64×64 52×52 40×40
Cabinet Size 500mm×500mm      /500mm×1000mm
Cabinet Weight 15/28KCS
Cabinet Thickness 9cm (Include The Module Thickness)
Screen Parameter Out of Control Pixel ≤3/100000
Module Splicing Cap ≤2mm
Best View Distance 5-20m
View  Angle H140°,V120°
Screen Flatness ≤2mm
Ink Color Screen No Reflection
Brightness Uniformity 1:01





Current Supply

Usage Indoor and Outdoor
Humidity 10°~90°RH
Temperature -20°~65℃
Max  Consumption 800w/m²
Average  Consumption 400w/m²




Control System

Control Host Operating System XP Computer+ Control Software Hardware + Play Software Hardware
Control Method Sync Control with Computer VGA
Control System DVI Graphics Card + Screen Control Card + Optical Fiber Transmission
Input  Method PAL/  NTSC/SECAM,S-Video;VGA;RGB;  Composite  Video;SDI.














Screen Technical Parameter

LED Drive 1/16 scan             1/13 scan 1/10 scan
Computer Display Mode 1280×768,1920×1080,800×600
Refresh Rate 2000Hz
Gray Scale R/G/B: 8192 Grades Each Color
Brightness 2000cd/m²,4000cd/m²
Life Time ≥100000Hrs
Display Contents DVD,VCD, TV,images,text, animat ion,et c
MTBF ≥10000Hrs
Interface La nport, Communication RS-422
Control Distance Multimode Fiber <500m, Single Mode Fiber<30km,CAT 5<100m
Screen Protect Damp-proof, Dust-proof, Anti-static
Software Universal LED Video Playback Software

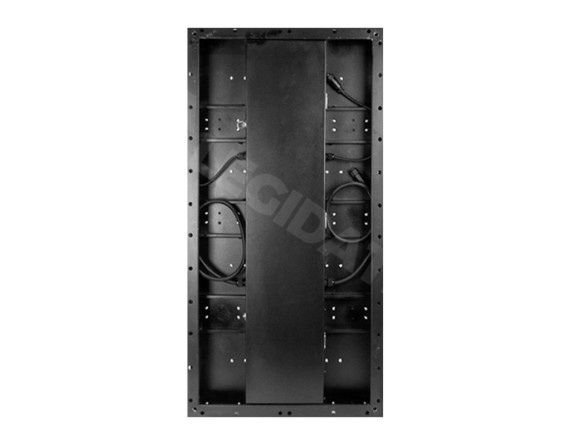

LED dance floor video wall EDF series details

Sensing chips in one module
Screw type power and signal cable
Seamless connection
High load bearing
Good waterproof
High fidelity
Quick installation
High color contrast

Information available for reference and download

What is LED intelligent interactive floor tile screen?

LED floor tile screen also known as LED floor screen or interactive LED floor tile screen. LED floor tile screen is a novel digital full-color LED display equipment on the ground, the use of video synchronization control mode, with intelligent system, to achieve high-resolution soft color display, human screen interaction, fun games and other multiple effects, to complete the stage of virtual scenography and play the perfect combination of interactive.  LED intelligent interactive tile screen is designed for the ground display to create an innovative commercial display products, making the stage space extension, and realize the visual effect of light and shadow interaction, making the whole stage interesting and vivid.

It can be applied to both indoor and outdoor stage scenes, and can also be used as a stage rest area in large shopping malls.

Recent hot case projects and products

How about the price of LED floor tile screen?

The price of LED floor tiles varies with brand, size, brightness, clarity and other factors. Generally speaking, the price of a large LED floor tile screen is higher, but it can provide a more shocking visual effect. In addition, you also need to consider the transportation and installation costs, so please contact LEGIDATECH for a full understanding before purchasing.

The role of interactive floor tile screen

Interactive floor tiles have revolutionized the way people interact with their surroundings, offering a unique and immersive experience. Their versatility in terms of size and customization, durability, interactive capabilities, high color contrast, waterproofing, and flexible installation make them an ideal choice for various settings and applications. Whether used in entertainment venues, educational institutions, or outdoor events, interactive floor tiles have the power to captivate and engage audiences, creating memorable and enchanting experiences

In what scenarios can LED floor tile screens be applied?

LED floor tile screen can be widely used in various fields. In the commercial field, LED floor tile screens can be used as decoration and advertising display in shopping malls, hotels and other places. In the field of entertainment, LED floor tile screens can be used as the background and stage effects of performances such as stages and concerts. In urban landscape planning, LED floor tile screens can also be used in the beautification of parks, squares and other places. In addition, the LED floor tile screen can also be used for information release and publicity in public places such as schools, hospitals, and exhibition halls.

What are the installation steps of the LED floor tile screen?

The installation steps of the LED floor tile screen are relatively simple. First of all, determine the location that needs to be installed, and then do the basic work on the ground, including power wiring and cement leveling of the foundation ground. Next, according to the requirements of the design pattern, splice the LED floor tiles and connect the power supply. Finally, carry out debugging and acceptance work to ensure that the LED floor tile screen works normally.
