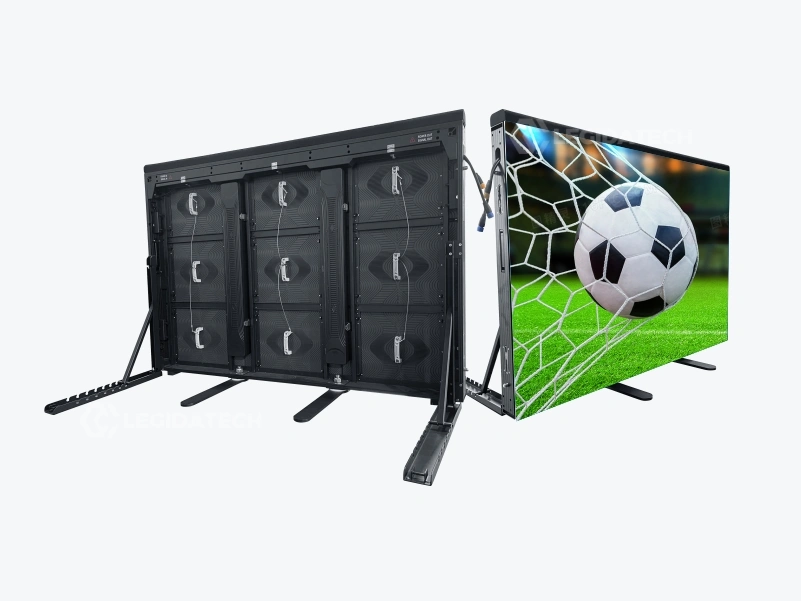

1440x960mm Stadium LED Display — ST1440 Series Ultra-Wide Perimeter LED Screen
A 1440x960mm stadium LED display is the ultra-wide perimeter format built for long, straight advertising runs at football stadiums, rugby grounds and multi-sport arenas. LEGIDATECH builds the ST1440 Series with a 47 kg full die-casting aluminum cabinet (91 mm thin), IP66 front-and-rear sealing, 3840 Hz broadcast-grade refresh at 6500+ nits, and Common Cathode technology that cuts electricity use by more than 30% — plus a soft EVA foam top and rubber mask that meet pitchside athlete safety requirements. One cabinet covers 1.5 standard segments, so a 100-meter run needs about one third fewer seams and connections. Quoted factory-direct with engineering drawings before production.
✓ 1440×960 mm ultra-wide cabinet
✓ P8 / SMD 2727
✓ Front & rear service
✓ 90°–120° adjustable tilt
✓ 5-year warranty
What Is a 1440x960mm Stadium LED Display?
A 1440x960mm stadium LED display is an outdoor perimeter screen format that runs sponsor branding, live match content and event information along the edges of sports fields — built on a 1440 mm wide, 960 mm high cabinet that covers one and a half standard segments per unit. Venues with long straight runs use fewer cabinets, fewer seams and fewer power connections to cover the same distance.
The ST1440 is P8 (FC8, 8 mm pixel pitch). Most spectators in the stands sit 8 meters or more from the field edge, and at that distance P8 produces a sharp, clean image that broadcast cameras read without flicker — one reason P8 is the most common pitch for professional sports venues. Each cabinet carries three 480×320 mm modules across its width (180×120 pixels per cabinet).
It is part of the complete outdoor LED display range from LEGIDATECH, a Shenzhen factory-direct manufacturer that ships engineering drawings before production. Module-level detail on the pitch is covered in our P8 LED module detailed guidance.
ST1440 Series demo — ultra-wide 1440x960mm perimeter screen
ST1440 Series at a Glance
From raw cabinet to pitchside perimeter — real photos of the ST1440 in the field.

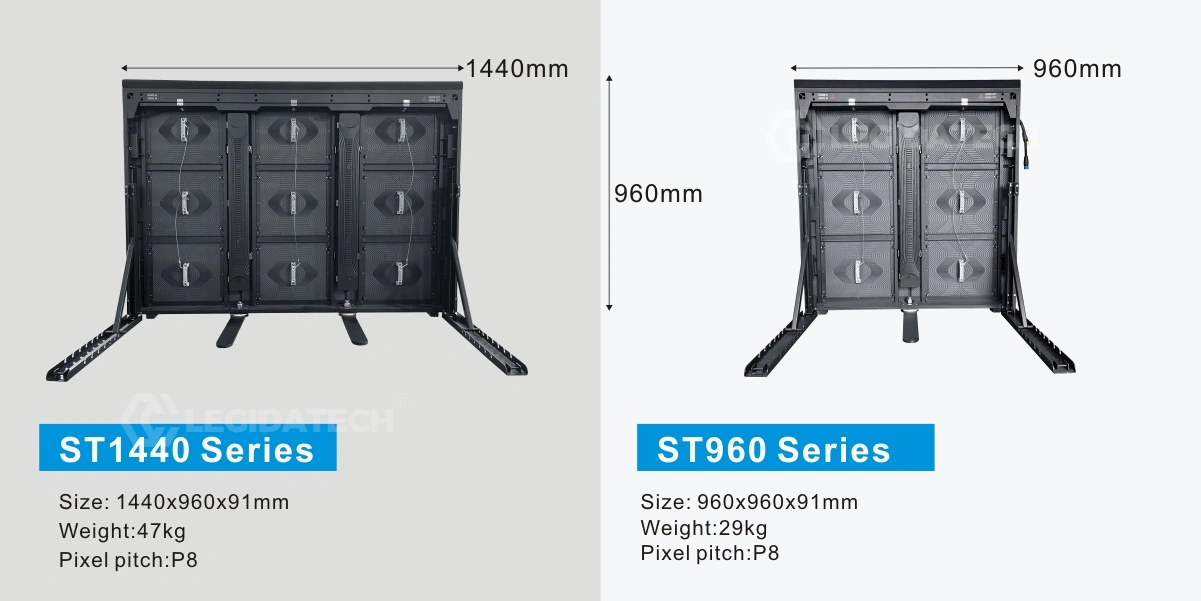

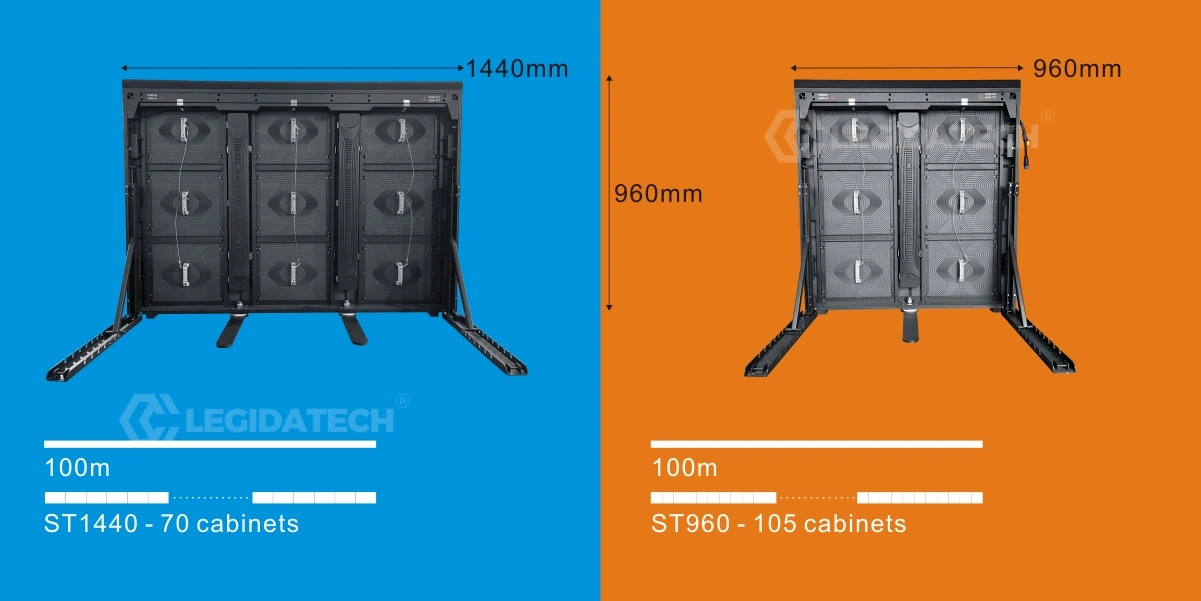

1440×960 vs 960×960 — Choosing the Right Cabinet Format

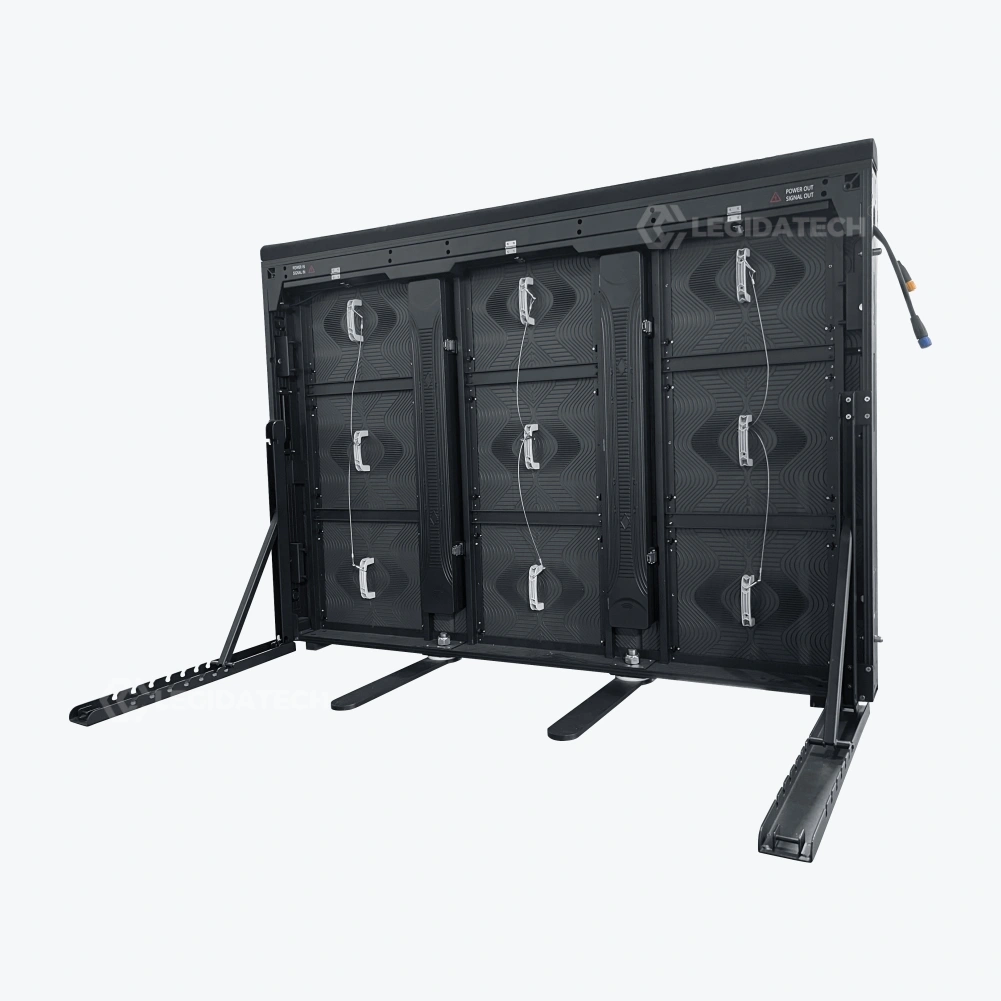

The ST1440 uses a 1440x960mm cabinet with full die-casting aluminum construction — 47 kg per cabinet and only 91 mm thick. Every other core specification matches the 960 mm family: same P8 pitch, same 3840 Hz refresh, same IP66 sealing, same soft-mask safety design.
The difference shows up when you plan a run. A 100-meter perimeter takes about 70 cabinets in the 1440 mm format — or about 105 in the 960 mm format. That is roughly one third fewer seams, power drops, signal connections and install positions for the same advertising length, which means faster installation, fewer future failure points and a visually cleaner advertising face.
As a rule: long straight runs (football, rugby, athletics) favor the 1440 mm format; venues with many corners, tight segments or rental fleets favor the ST960 960x960mm stadium LED display. Both formats ship from the same production line and share spares.
ST1440 Series Key Features
Engineered around the five costs that matter at a stadium: format efficiency, energy, maintenance, safety and broadcast quality.

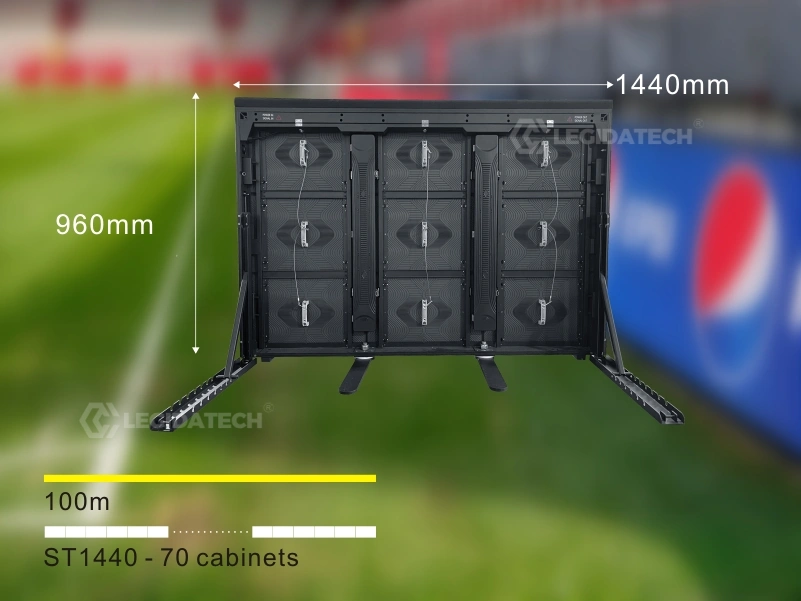

Each cabinet spans 1440 mm — one and a half standard segments. A 100-meter perimeter needs about 70 cabinets instead of 105: fewer vertical seams on the advertising face, fewer power drops and signal connections, fewer positions to align and maintain over the screen’s life.

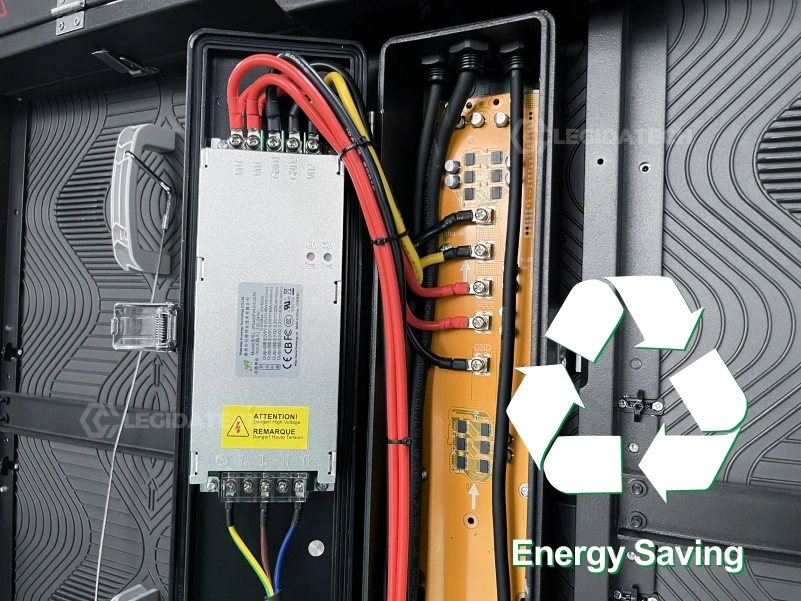

Each LED color channel receives its own voltage, cutting power use by over 30% versus standard designs and running the screen about 15°C cooler — less stress on LEDs, longer service life, lower season-long electricity bills.

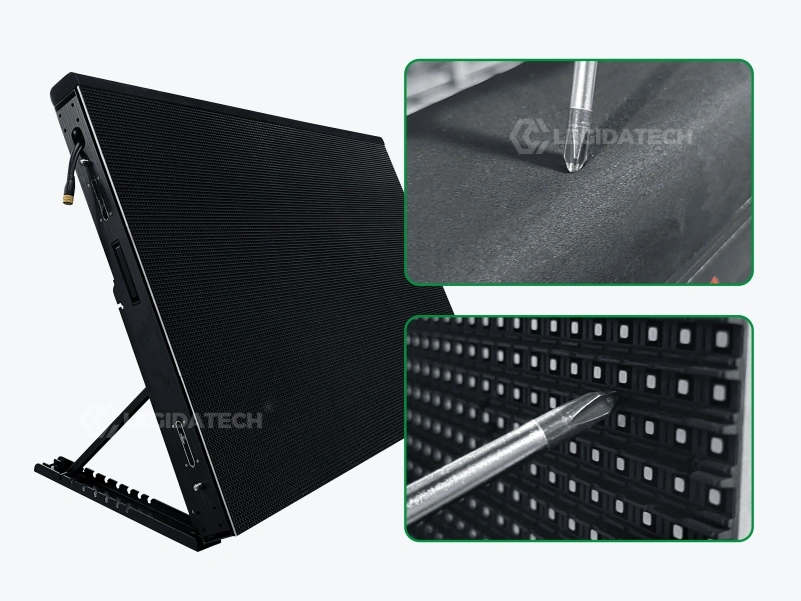

The top edge carries a soft EVA foam cover and the LED surface a rubber mask. If a player runs into the screen, the soft materials absorb the impact, reduce injury risk and protect the LEDs from collision damage — a key requirement for pitchside installation.

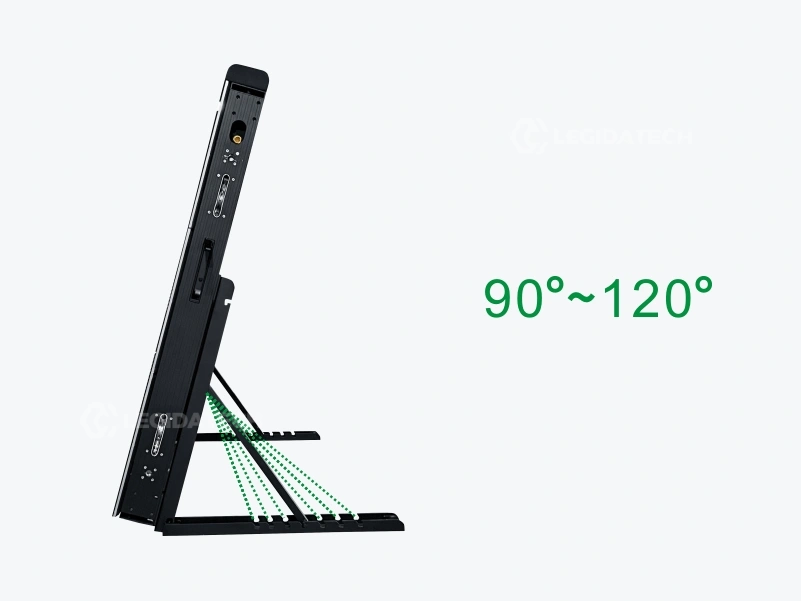

The base opens with a 90° rotation and the screen angle locks into seven positions: 90°, 95°, 100°, 105°, 110°, 115° or 120°. Aim the display at specific seating sections or camera positions; fold it flat for storage between matches.

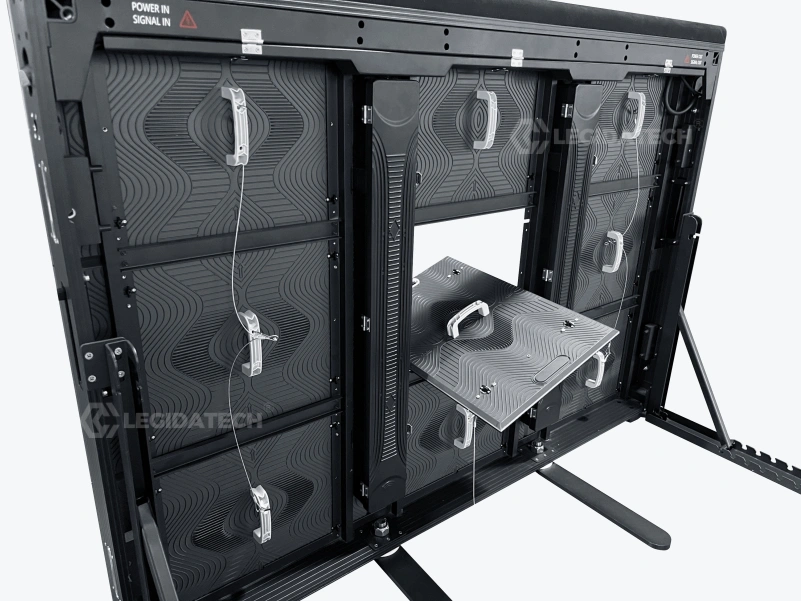

Each 480×320 mm module has a mechanical latch and built-in handle. One technician can swap a module from the front or rear without special tools — critical when rear access at a stadium perimeter is tight.

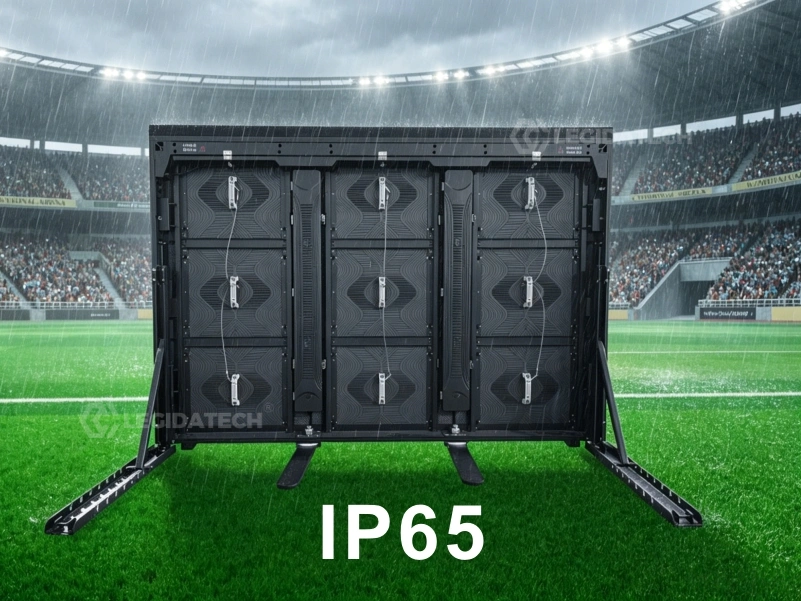

Sealed to IP65 on both front and rear, the cabinet withstands dust and heavy rain with no additional enclosure — built for year-round outdoor installation and rainy match days.

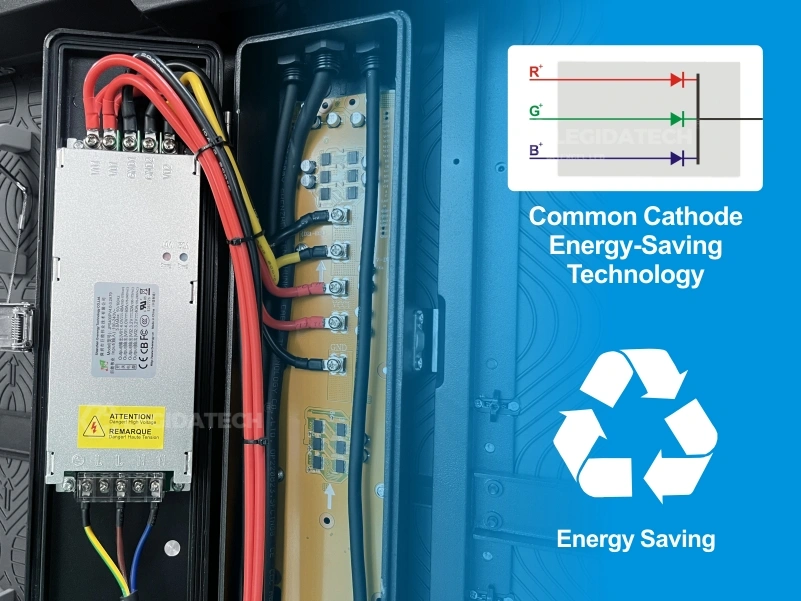

Common Cathode Saves You 30%+ on Stadium Display Electricity
Energy is the second-largest ownership cost of a perimeter LED screen after the hardware itself. The ST1440’s Common Cathode driving reduces average power consumption from the conventional profile to roughly 130 W/m² at typical content, and the numbers compound over a season:
* Assumes 200 m² of P8 perimeter screen, 8 h operation per day, 365 days per year — the same footprint as a 200-meter run at 1 m height. Your actual savings depend on content, brightness and local tariff — send your operating profile with your inquiry and we will include a year-one energy cost comparison in your quote. General budgeting references: LED screen price.
ST1440 Series Specifications
Full technical data sheet — the same cabinet family also supports the ST960 (960×960 mm) format.
Module-level detail on the driving ICs and calibration process is covered in our P8 LED module detailed guidance.

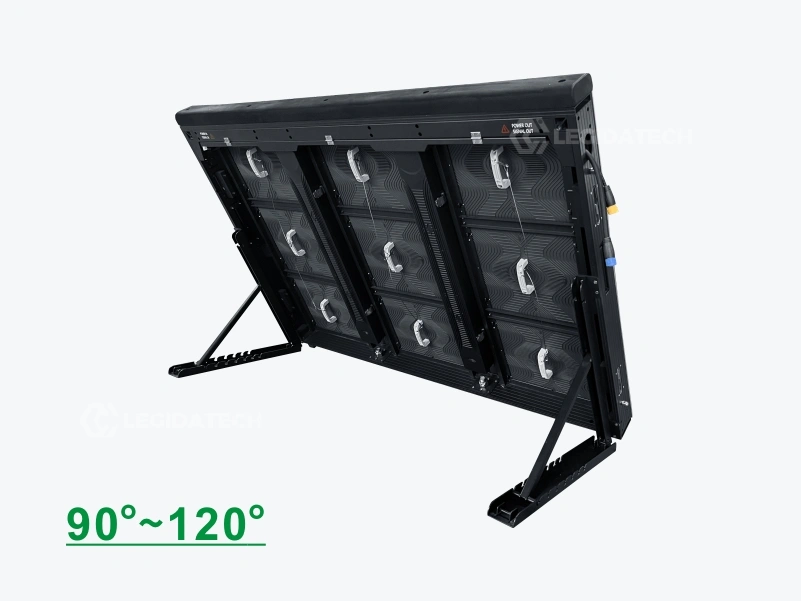

Deployment: Tilt Adjustment, Stability and Rapid Setup
The ST1440 base support opens with a 90° rotation for quick setup, then locks the screen into any of seven viewing angles (90°–120°) to aim at seating sections or camera positions. When not in use, the stand folds flat for compact storage.

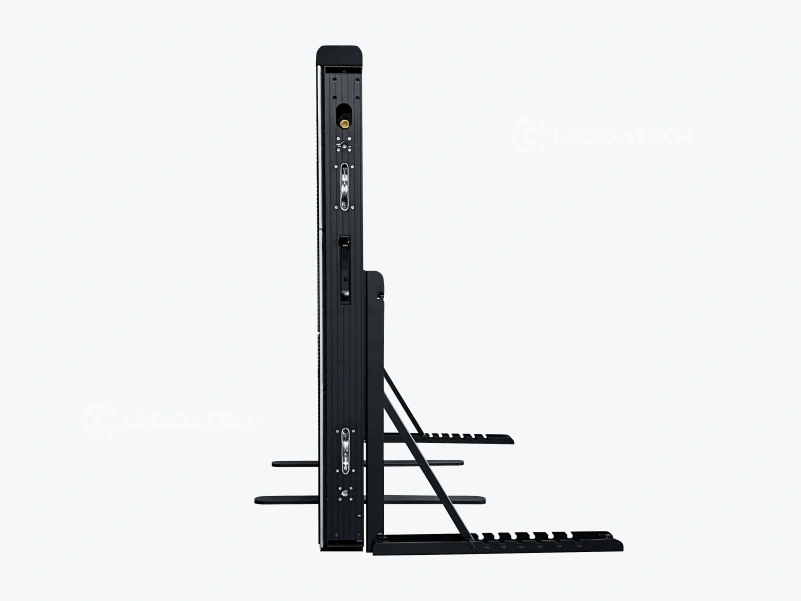

A steel ground supporter and locking buckles hold the cabinet stable on uneven ground, keeping the picture steady under ball impact and strong wind. All power and data cables run through a covered duct along the top of the cabinet — no visible cabling, and rain is kept away from the connectors.
Installation Effort: 100-Meter Run
Maintenance Cost Comparison
For stadium perimeters where rear access is tight or blocked by seating, front service keeps downtime measured in minutes — see our LED stadium screens application guide for layout planning.
Applications of the ST1440 Stadium LED Display
The ultra-wide format earns its keep wherever the run is long and the advertising face matters.

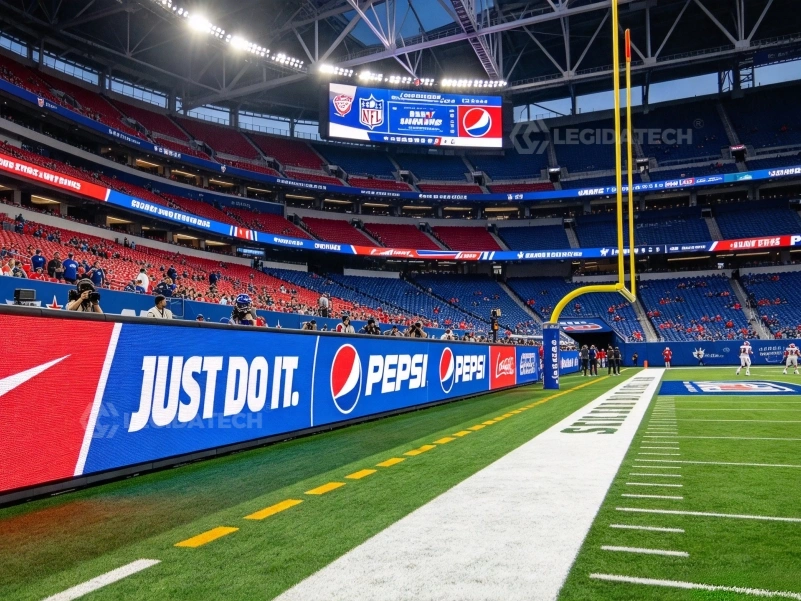

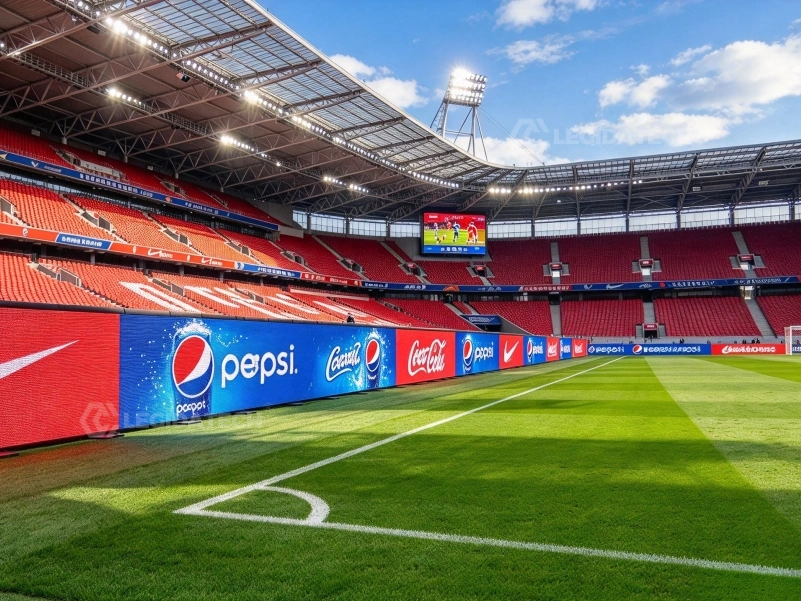

Long, straight pitchside runs are where the 1440 mm format wins — fewer seams across the sponsor board, broadcast-clean 3840 Hz refresh, 6500+ nits under floodlights.
Wide venues with long perimeter runs and generous sightlines — the ultra-wide cabinet covers ground faster with fewer install positions.

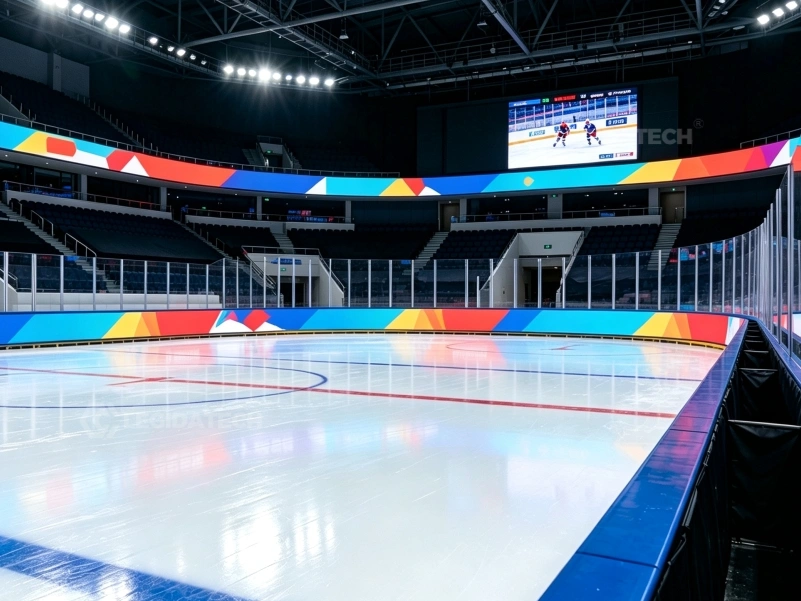

Soft EVA top and rubber mask absorb impacts from players and pucks against the boards.

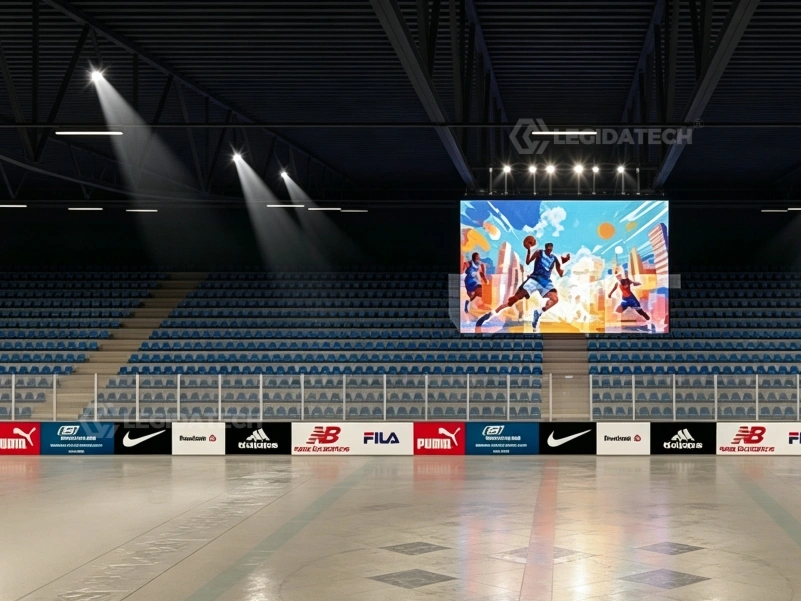

One system reconfigures for every event in the calendar — deployed as a matchday perimeter, folded and re-aimed as event staging.
These applications align with our wider sports LED display portfolio and LED stadium screens case coverage.

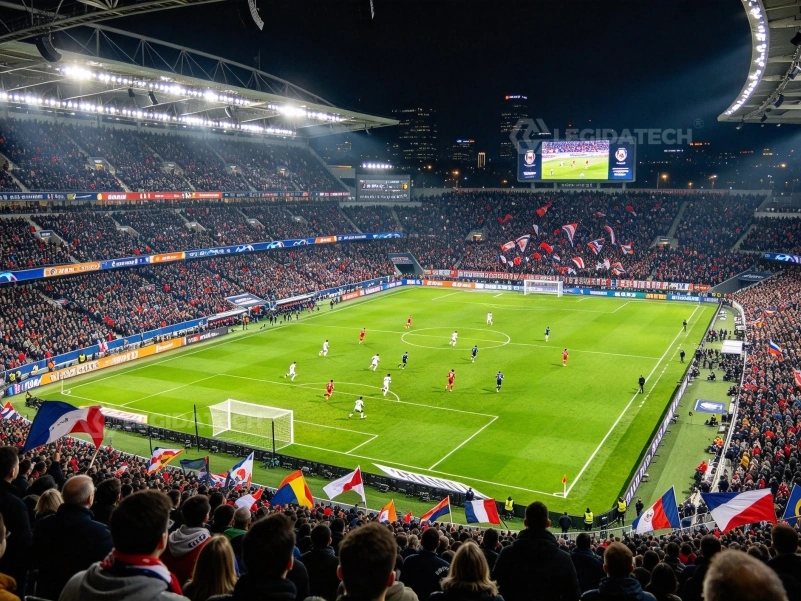

3840 Hz Refresh — Broadcast-Clean in Slow Motion
Television money is won on camera. The ST1440 runs at 3840 Hz with 14–16-bit grayscale, which means no flicker banding in slow-motion replays — a failure mode that plagues low-refresh perimeter screens during broadcast close-ups.
At 6500+ nits with a 140°/120° viewing angle, sponsor ads and match graphics stay legible from every seating block, in full sunlight or under stadium floodlights.
The same signal chain is used across our outdoor LED screen range, so control hardware, spare modules and calibration settings are shared across projects — including the ST960 format.
Why LEGIDATECH — A Factory You Can Audit

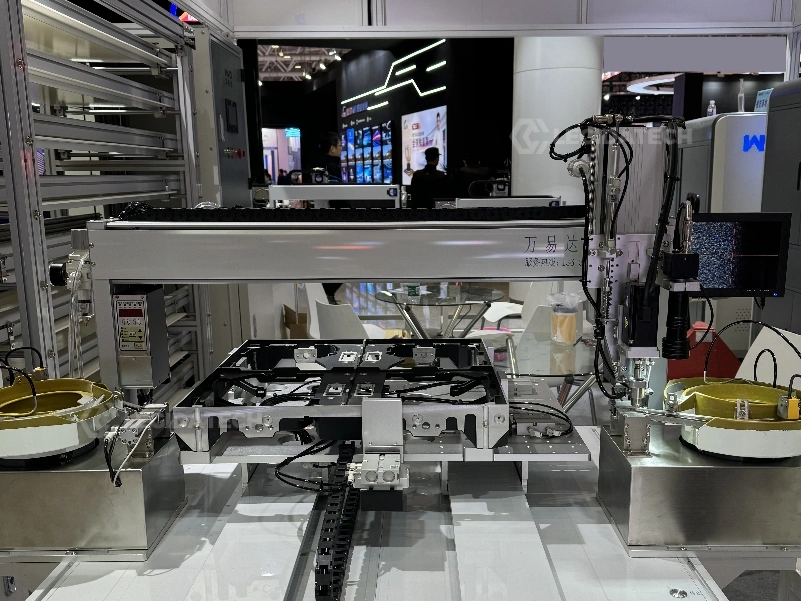

LEGIDATECH is a Shenzhen-based LED screen manufacturer that controls the full production chain — die-casting, SMT, aging and final assembly under one roof. Every ST1440 project ships with engineering drawings, a wiring plan and a factory test report before dispatch.
Every module passes a 72-hour aging test before shipment — the single biggest filter for early-life LED failure.
CE, RoHS and FCC compliance on the ST1440 series, with test reports available on request. See our certification page for the full list.
Standard 5-year warranty with spare-module pricing locked at order time — no surprise part costs mid-season.
Stadium LED Display FAQs
What is a 1440x960mm stadium LED display used for?+
It runs along the edges of sports fields — football stadiums, rugby grounds, athletic arenas — to show sponsor branding, live match content and event information. The 1440 mm cabinet width suits long straight perimeter runs, where fewer cabinets mean fewer seams and connections for the same advertising length.
What is the difference between the 1440x960mm and 960x960mm cabinets?+
Cabinet width and weight: the ST1440 is 1440 mm wide (47 kg, 180×120 pixels per cabinet), the ST960 is 960 mm wide (29 kg, 120×120 pixels). Both share the same height, 91 mm thickness, P8 pitch, IP66 sealing, 3840 Hz refresh and safety design. Choose 1440 for long straight runs; choose the ST960 when corners, tight segments or rental flexibility matter more.
How many 1440x960mm cabinets do I need for a 100-meter perimeter run?+
About 70 cabinets (70 × 1.44 m = 100.8 m). The same run takes roughly 105 cabinets in the 960x960mm format — so the ultra-wide format cuts the number of seams, power drops, signal connections and install positions by about one third.
How much does a 1440x960mm stadium LED display cost?+
Cost depends on pixel pitch, brightness, protection level and energy-saving technology — cabinet format affects structure and installation more than unit price. Typical factory-direct projects range from $50,000 for small community venues to $1,000,000+ for large professional stadiums. See our stadium LED display price guide for estimates by venue type.
Is a 47 kg cabinet manageable for a two-person installation team?+
Yes. At ≈34 kg/m² the ultra-wide cabinet stays in aluminum-cabinet territory, and a two-person team handles it with the folding support frame. You also place about one third fewer cabinets per run than the 960 mm format, so total handling effort on a long run is comparable or lower.
Can the viewing angle be adjusted toward different stands?+
Yes. The foldable rotating support frame adjusts the screen angle from 90° to 120° in seven locked positions (90°, 95°, 100°, 105°, 110°, 115°, 120°), letting you aim the display at both the live audience and TV camera positions.
Is the ST1440 safe for athletes during play?+
Yes. The top edge is covered with soft EVA foam and the LED surface uses a soft rubber mask. If a player makes contact at full speed, the materials absorb the impact — reducing injury risk while protecting the LEDs from collision damage.
What maintenance does a perimeter LED display require?+
Routine maintenance means checking modules, cleaning the surface and inspecting cables. The ST1440’s front and rear service access lets one technician swap a module in seconds with no special tools — and with fewer cabinets per run, there are fewer connection points to inspect in the first place.
Ready to Maximize Your Stadium Advertising ROI?
Send your stadium dimensions, viewing distance and environment — you receive a complete spec sheet, engineering drawings and a factory-direct price within 24 hours. Energy-cost comparison included with every Common Cathode quote.
Related Products & Articles
The compact format of the same cabinet family, 29 kg per cabinet, for corners, tight segments and rental fleets — see the ST960 stadium LED display page.
The same cabinet size configured for billboard networks — see the 960x960mm series page.
The full venue portfolio — from scoreboards to perimeter walls: sports LED display hub.
Browse the complete range of all LED display products, including LED video wall and video gallery.
How to Plan a Stadium Perimeter LED Display: Cabinet Formats, Seam Count and 2026 Cost Guide
Buying Guide · Updated 2026 · LEGIDATECH Engineering Team
Planning a stadium perimeter is a geometry problem before it is a purchasing problem. The screen has to wrap a field of known length, survive weather and ball impacts, look clean on broadcast cameras and stay inside a budget that also covers structure, installation and electricity. This guide walks through the decisions in the order our engineers ask them — cabinet format first, because it drives everything downstream — using the same numbers we quote from on real projects.
What Determines the Price of a Stadium LED Display?
Five variables drive 90% of the price difference between two stadium screens. Knowing them lets you trade cost against quality deliberately instead of accepting whatever the quote says.
1. Pixel pitch. For a perimeter screen where viewers sit 8 meters or more away, P8 is the cost-performance sweet spot: sharp on camera, and roughly 15–25% cheaper per m² than P6. Finer pitches add module count faster than they add perceived quality at that distance.
2. Brightness and protection. Outdoor stadiums need 6500+ nits to stay visible under direct sunlight, and IP65/IP66 sealing to survive rain and dust for a decade. A cheaper indoor-grade screen in an outdoor stadium fails within one or two seasons.
3. Cabinet material and format. Die-cast aluminum cabinets cost more than sheet-steel or plastic boxes, but they hold flatness for years, survive repeated assembly cycles and cut the steel structure behind the screen. Format — 1440 mm wide versus 960 mm wide — changes the downstream math more than any other cabinet property, as the next section shows.
4. Energy technology. Common Cathode (CCT) driving costs more up front than conventional driving. It also cuts power use by over 30% and runs the screen about 15°C cooler — over 5 years the electricity saving usually exceeds the price premium.
5. Maintenance access. Front service lets one technician swap a module in seconds. Rear-only access needs 2–3 people, tools and clearance behind the screen — space that usually doesn’t exist at a pitchside perimeter. It is the most under-priced feature in a stadium LED display quote.
Cabinet Format Economics: 1440×960mm vs 960×960mm
Both formats come from the same engineering family — same P8 pitch, same 3840 Hz refresh, same IP66 sealing, same 91 mm thickness. The difference is how they tile a long run. A 100-meter perimeter takes about 70 cabinets in the 1440 mm format (70 × 1.44 m = 100.8 m) versus about 105 in the 960 mm format (105 × 0.96 m = 100.8 m). Every cabinet you don’t place is a seam you don’t have, a power drop you don’t run and a signal connection that can never fail.
The trade-off is per-cabinet weight: 47 kg versus 29 kg. Per meter of run, however, the two formats are nearly identical — roughly 33 kg/m for the 1440 format against 30 kg/m for the 960 format — so your steel structure cost per meter is essentially flat. What changes is handling: the wider cabinet wants a two-person lift, while the total number of lifts drops by a third. On long straight runs the 1440 format wins on total effort; on venues with many corners, tight segments or a rental fleet that reconfigures weekly, the 960 format’s smaller unit wins on flexibility.
A practical planning rule from our project files: count corners before you count meters. If more than about a fifth of the run turns a corner or steps in depth, specify the 960 mm format; if the run is dominantly straight, the 1440 mm format delivers the cleaner face and the shorter install. Mixed venues can — and often do — run both formats from the same production batch and spare pool.
Stadium LED Display Price Ranges by Configuration
The table below reflects typical factory-direct project pricing for complete perimeter systems including cabinets, control system, power distribution and basic structure. These are planning ranges — exact quotes depend on your dimensions and environment.
A P8 perimeter screen in either the 1440x960mm or 960x960mm format lands in the middle of these bands. Per-square-meter pricing on P8 aluminum cabinets typically runs 15–25% below P6 of the same quality, which is why P8 dominates professional football perimeters. For current estimates aligned with these bands, see our stadium LED display price guide and the general LED screen price reference.
A practical rule for pitch selection: minimum comfortable viewing distance in meters is roughly the pixel pitch in millimeters × 1,000. At P8 that is 8 meters — matching the typical gap between the field edge and the first rows of seating, which is exactly why P8 is the default perimeter pitch. At P10 the minimum moves to 10 meters, so P10 belongs on upper-tier ribbon boards where cameras never get close; at P6 the 6-meter minimum buys sharper close-ups but raises the module count per m² by roughly 40% versus P8. Match the pitch to the closest camera and seating position, not to the marketing page.
Installation, Structure and Maintenance Costs
The screen hardware is usually 60–70% of a stadium project budget. The rest is structure, installation and the control chain — and this is where project costs escape their estimates.
Steel structure. Every kilogram of screen weight requires roughly 1.5–2 kg of steel behind it, including foundations and wind loading for outdoor perimeters. Because the two ST cabinet formats carry nearly the same weight per meter of run (≈33 kg/m for 1440, ≈30 kg/m for 960), structure cost per meter is essentially a constant — format decisions should be driven by seams and handling, not by steel tonnage.
Installation labor. Standard-format cabinets install with no on-site cutting or custom parts; non-standard screens can add 20–30% to installation labor. The ultra-wide format cuts the number of placements, alignments and connections by about a third on a straight run — labor you pay once during installation and again every time a technician services the run. The foldable stand with 90°–120° tilt also lets venues deploy perimeter segments as temporary event installs
Control system and media server. A broadcast-compliant perimeter needs a sending system rated for 3840 Hz refresh, plus a video processor for multi-zone ad rotation. Budget for the control chain even if you already own a scoreboard — our engineers map your existing infrastructure before quoting.
Power, networking and commissioning. A 200 m² P8 perimeter draws roughly 26–37 kW at maximum brightness (550 W/m² max, 186 W/m² average) — your electrical contractor needs that load planned per distribution point, plus a fiber or redundant network path to the media server. Fewer cabinets per run also means fewer distribution points to plan. Commissioning — color calibration, brightness mapping and control-system integration — is usually 3–5% of project cost and is non-negotiable for broadcast work: an uncalibrated screen shows visible brightness seams between cabinets under camera.
Broadcast Compliance — Why 3840 Hz Protects Your TV Revenue
A perimeter screen’s first job is commercial: sponsor boards around the pitch are sold as broadcast inventory, and broadcasters hold venues to technical standards because a flickering board ruins a slow-motion replay. Two specifications decide whether your perimeter passes on camera: refresh rate and grayscale depth.
At 3840 Hz with 14–16-bit grayscale, the ST1440 shows no scanning lines or banding in slow-motion footage — the failure mode that appears on low-refresh screens when a camera drops below 1/500 s shutter. At 6500+ nits with 140°/120° viewing angle and 6500–9000 K adjustable color temperature, sponsor colors and match graphics render consistently from every camera position and seating block. If your sponsor agreement includes technical performance clauses (and most professional ones do), the refresh-rate line in your spec sheet is a contract-protection decision, not a performance preference.
The 5-Year TCO Advantage of Common Cathode Technology
Energy is the hidden line item in every stadium LED display budget. Take a 200 m² P8 perimeter running 8 hours a day: a conventional screen averages roughly 186 W/m², while a Common Cathode screen averages about 130 W/m². Over a 365-day season at $0.12/kWh, that difference is worth roughly $3,900 per year — about $19,500 over five years for one screen. A stadium with a full 800 m² perimeter multiplies that saving by four.
The 15°C lower junction temperature of CCT design also matters for longevity: LED life halves with every ~10°C of extra junction heat. Cooler operation is the difference between a module fleet that still matches brightness in year six and one that needs early replacement — a cost that never appears on the purchase order.
There is a revenue side to the same screen. A perimeter board facing the main stand delivers roughly one ad impression per seat per rotation; a 20,000-seat stadium running 8 sponsor rotations per match generates about 160,000 paid impressions per fixture. That math is why venue operators treat refresh rate, brightness and uptime as revenue infrastructure — and why the maintenance-access decision in the checklist below belongs in the same budget conversation as the screen price itself.
A Stadium LED Display Buying Checklist
Before you sign any quote, verify these seven items in writing:
- Refresh rate ≥ 3840 Hz with grayscale depth of 14–16 bits — anything less will flicker in broadcast slow motion.
- IP66 on both front and rear for outdoor perimeters — IP65 rear-only screens leak at the cabinet gasket over time.
- Front and rear service access — verify with your structural plan that rear clearance exists; it usually doesn’t at pitchside.
- A cabinet format matched to your run geometry — long straight runs favor 1440x960mm; corner-heavy venues favor 960x960mm; ask for the seam count on your specific layout.
- Common Cathode or equivalent energy design — ask for the average W/m² figure, not the max.
- Athlete safety features — soft masks and edge protection if the screen sits within playing distance.
- Engineering drawings before production — a factory that won’t show you the cabinet layout before cutting aluminum is a factory you should not order from.
LEGIDATECH checks every box above by design: production, aging and assembly run under one roof in Shenzhen, both cabinet formats ship from the same line with a shared spare pool, and every ST1440 project includes engineering drawings, a factory test report and locked spare-module pricing before the deposit is due.
Conclusion
A stadium perimeter is priced in four layers — hardware, structure, installation and energy — and the cheapest quote usually wins only the first. Cabinet format decides how the other three behave: a 1440x960mm stadium LED display cuts the seams, connections and install positions on a long run by about a third, while the 960x960mm format keeps maximum flexibility for corner-heavy venues. Buy on the data, not the sticker: ask your supplier for the seam count on your layout, the average W/m², the refresh rate at the cabinet, and the drawings before you commit. If you are planning a stadium project in 2026, send us your dimensions and viewing distance — you will get the same engineering data from us that this guide is based on, and a factory-direct price in the ranges above.
