NovaStar MRV416-N LED Receiving Card — 512×512 16-HUB75E General Controller
A cost-effective general receiving card with 16 standard HUB75E connectors, 32-group parallel RGB data, 18bit+ grayscale enhancement, pixel-level calibration, and EMC Class A compliance. Engineered by NovaStar, factory-supplied by LEGIDATECH for B2B LED display projects worldwide.
What Is the NovaStar MRV416-N LED Receiving Card?

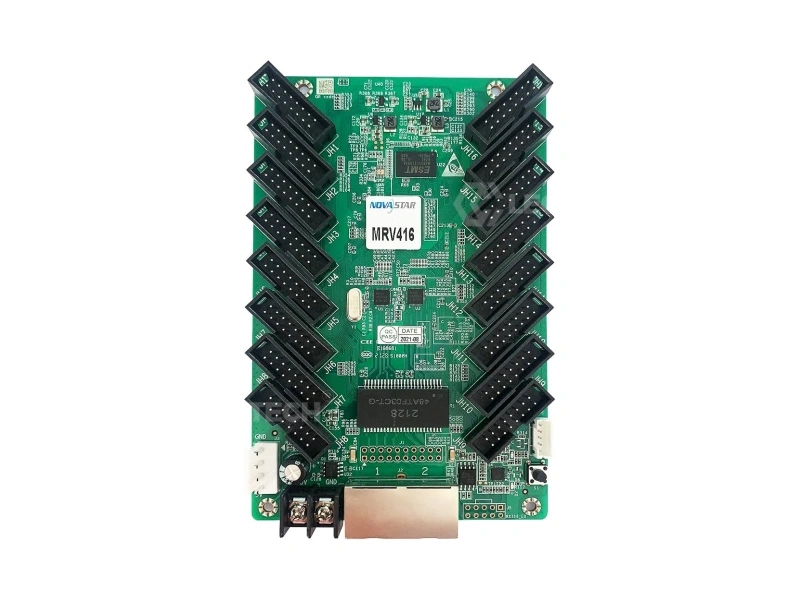

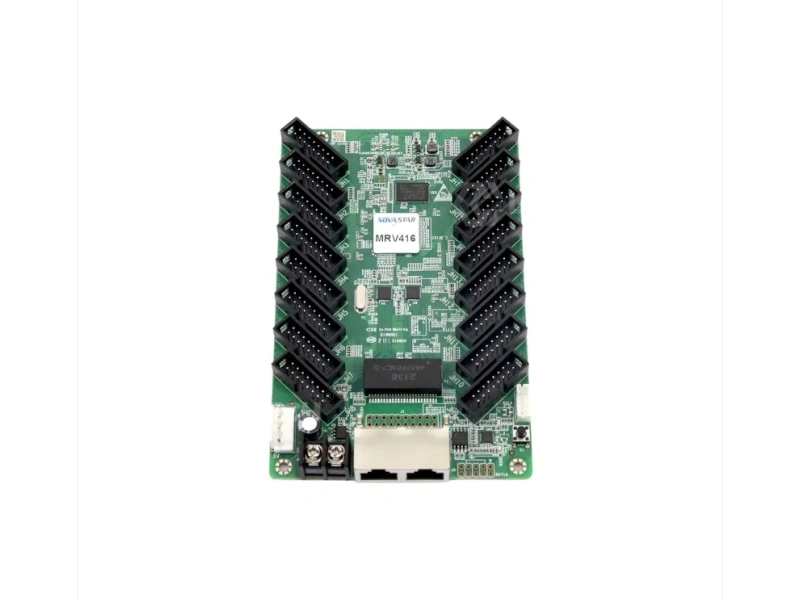

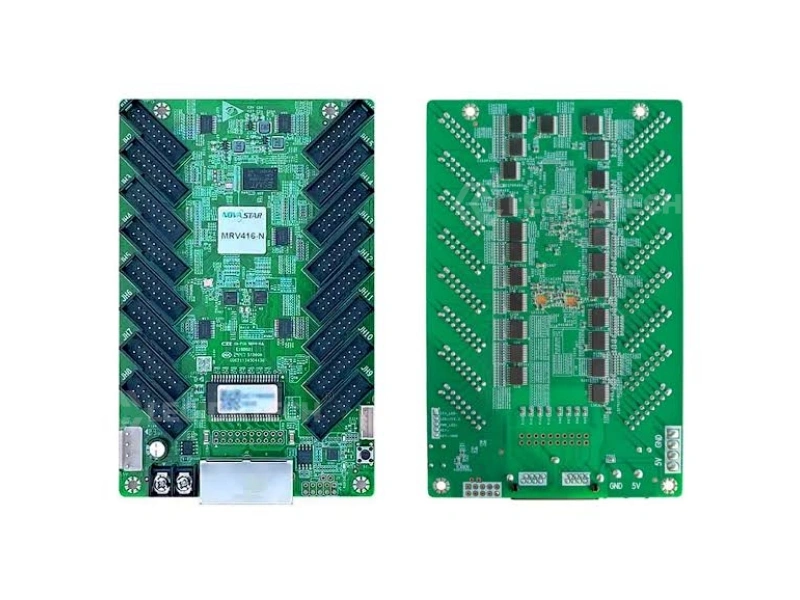

The NovaStar MRV416-N LED receiving card is a cost-effective general receiving card supporting up to 512×512 pixels @ 60Hz (PWM driver IC) or 512×384 (common IC) with 8-bit video sources. Equipped with 16 standard HUB75E connectors and 32 groups of parallel RGB data, it delivers professional-grade LED display control at an accessible price point.
Unlike budget cards that lack advanced processing, the MRV416-N includes Color Management (Rec.709/DCI-P3/Rec.2020), 18bit+ grayscale enhancement (4× improvement), pixel-level calibration, and unique features like Ethernet cable disconnection detection. It is optimized for fixed installations, rental staging, and commercial LED displays where reliability matters more than flagship features.
Key Features of the MRV416-N Receiving Card
Cost-effective does not mean compromised. Each feature addresses a real B2B integration requirement.
◆ Color Management, 18bit+ & Display Enhancement
Supports standard color gamuts (Rec.709, DCI-P3, Rec.2020) plus custom profiles for precise color reproduction. 18bit+ improves grayscale by 4× to prevent loss at low brightness. Pixel-level brightness and chroma calibration eliminates LED variance. Multi-batch adjustment corrects display inconsistencies from different production batches — critical for large installations with cabinets manufactured months apart.
◆ Loop Backup, Dual Redundancy & Reliability
Loop backup ensures uninterrupted display even when a cable fault occurs — data routes the long way around the ring. Dual program backup stores two firmware copies to prevent bricking during updates. Dual configuration parameter backup (application + factory areas) allows instant restoration of working settings. Ethernet cable disconnection detection monitors and logs link drops — a unique MRV416-N feature for proactive maintenance.
◆ Smart Diagnostics & Maintainability
Mapping 1.1: cabinets display controller number, receiving card number, and Ethernet port assignment on-screen for instant topology visualization. Temperature & voltage monitoring built-in — no external devices needed. Bit error detection monitors Ethernet communication quality in real time. Cabinet LCD integration shows live metrics. 3D output, 90° image rotation, low latency (1 frame), and individual RGB gamma adjustment round out the advanced feature set.
18bit+ Grayscale Enhancement: 4× Smoother Images
The MRV416-N may not have 22bit+, but its 18bit+ technology still delivers measurable image quality improvement.
Color Management
Supports standard gamuts (Rec.709, DCI-P3, Rec.2020) and custom color gamuts for precise color reproduction. Critical for rental and broadcast where color accuracy is non-negotiable.
- Real-time gamut switching
- Standard + custom profiles
- Camera-ready color accuracy
18bit+ Enhancement
Improves grayscale by 4 times compared to standard processing. Prevents grayscale loss when brightness is reduced — a common scenario in indoor applications.
- Avoids low-brightness grayscale loss
- Smoother dark gradients
- Works with common driver ICs
Multi-Batch Adjustment
Adjusts brightness across cabinets or modules to minimize discrepancies from different production batches — a unique MRV416-N advantage for large-scale deployments.
- Batch-to-batch uniformity
- Essential for multi-phase projects
- Reduces calibration time
MRV416-N Technical Specifications
MRV416-N vs MRV412 vs MRV416 — Which One Fits?
Same MRV family, different capabilities. Choose based on resolution and budget.
| Feature | ★ MRV416-N | MRV412 | MRV416 |
|---|---|---|---|
| Max Resolution (PWM) | 512×512 | 512×512 | 512×384 |
| HUB75E Connectors | 16 | 12 | 16 |
| Grayscale | 18bit+ (4×) | 18bit+ (4×) | 18bit+ (4×) |
| Color Management | ✔ | ✔ | ✔ |
| 3D / Low Latency | ✔ | ✔ | ✔ |
| Loop Backup | ✔ | ✔ | ✔ |
| Ethernet Disconnect Detect | ✔ | ✘ | ✘ |
| Multi-Batch Adjustment | ✔ | ✔ | ✔ |
| EMC Class | Class A | Class A | Class A |
| Best For | Fixed, Rental, General | Compact budget installs | Legacy projects |
Where the MRV416-N Excels: Application Scenarios
Fixed Installation
DOOH, retail, corporate lobbies. 16 HUB75E connectors + loop backup ensure reliable 24/7 operation with easy maintenance access.
Rental & Staging
Concerts, events, exhibitions. Low latency (1 frame), 3D support, and quick mapping reduce setup and teardown time.
Broadcast & Virtual Production
Color Management with standard + custom gamuts, individual RGB gamma, and EMC Class A make it studio-ready.
Creative & Custom-Shape
90° image rotation + multi-batch adjustment handle curved, angled, and free-form installations reliably.
How to Install and Configure the MRV416-N
Hardware Installation
- Power off completely. Never hot-plug the receiving card — high-density connectors are sensitive.

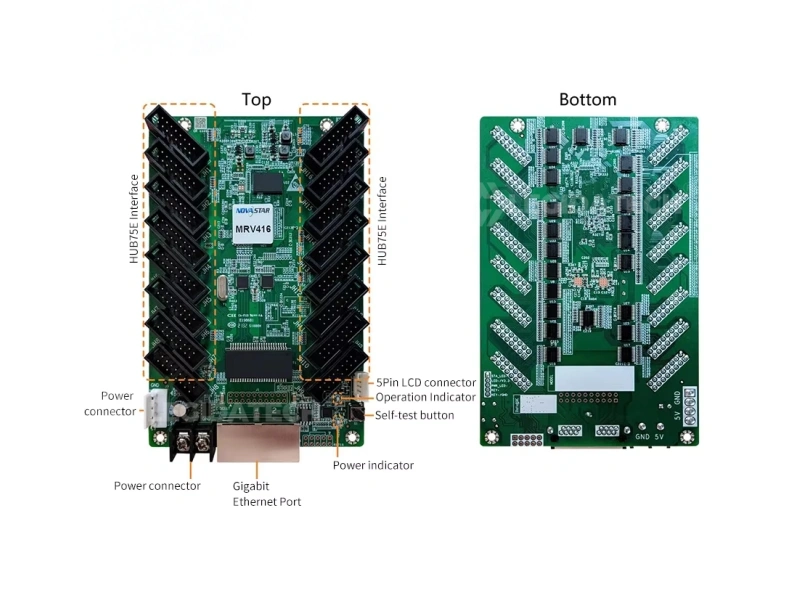

- Mount on the hub board. The MRV416-N uses 16 HUB75E connectors. Align and press firmly. Secure with mounting screws through the designated holes.

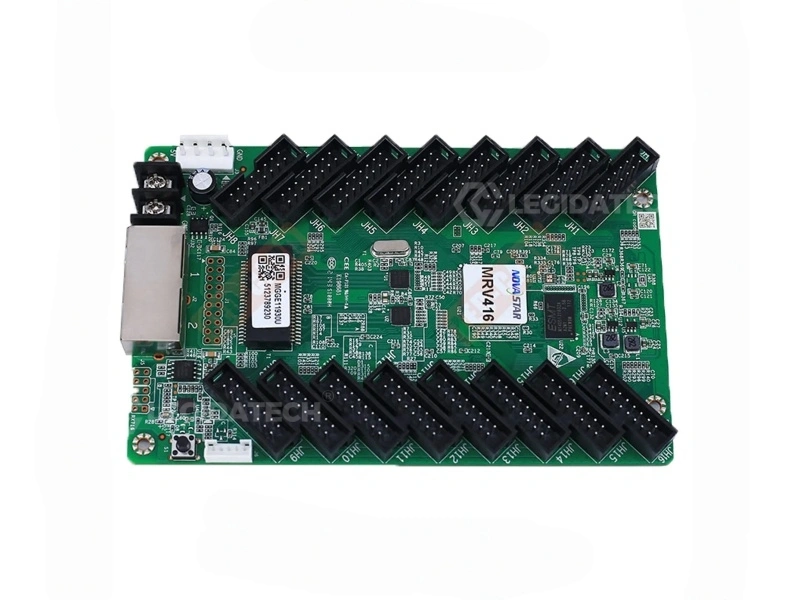

- Connect power. Supply DC 3.8–5.5V. Either power connector can be used — never bridge both.
- Connect Ethernet. Each gigabit port can be input or output. For loop backup, connect both ports in a ring topology.
- Verify indicators. Green running LED flashing 1/sec = normal. Flashing 3/sec = Ethernet issue. 8 quick flashes/0.5s = loop backup active.
Software Configuration (NovaLCT)
- Launch NovaLCT — auto-detects all connected MRV416-N cards.
- Load RCFG configuration file for your LED module type. Screen Configuration → Receiving Card → Load Config → Save to Hardware.
- Perform calibration using NovaStar’s calibration system for pixel-level brightness and chroma uniformity.
- Enable features: 18bit+, Color Management, Multi-batch adjustment, 3D, low latency — all configurable per project.
Why Source Your MRV416-N from LEGIDATECH?
As a professional LED screen manufacturer, we don’t just resell — we integrate, test, and support every card.
Factory-Direct Supply
Authorized NovaStar distribution. No counterfeit risk. Every card tested before shipping.
Pre-Shipment Burn-In
72-hour aging test inside real LED cabinets. Signal integrity and firmware stability verified.
Global Export
60+ countries. FOB/CIF/DDP. 100 cards per box standard packing.
Engineering Support
Pre-sales configuration + post-sales troubleshooting in English. RCFG selection included.
Frequently Asked Questions
Get a Quote for NovaStar MRV416-N LED Receiving Cards
Tell us your cabinet size, pixel pitch, quantity, and application. Engineering reply within 12 business hours with BOM, configuration, and B2B pricing.
✉ legidatechled@gmail.com | 📞 +86 185 6949 2693
NovaStar MRV Series LED Receiving Card Buyer’s Guide: MRV416-N, MRV412, and Beyond
Published: August 2026 | Reading Time: 10 minutes | Author: LEGIDATECH Engineering Team
1. The MRV Family: NovaStar’s Workhorse Receiving Card Line
NovaStar’s MRV series represents the company’s general-purpose, cost-effective receiving card line. Unlike the premium A-series (A5s, A8s, A10s Pro) which target high-end applications with 22bit+ grayscale, HDR, and advanced image processing, the MRV cards are engineered for reliable, everyday LED display control at a price point accessible to volume B2B deployments.
The MRV416-N sits at the top of the current MRV lineup. It offers the highest connector count (16 HUB75E), the largest loading capacity (512×512), and the most comprehensive feature set in the family — including unique capabilities like Ethernet cable disconnection detection that even some premium cards lack.
2. 16 HUB75E Connectors: Why More Ports Matter

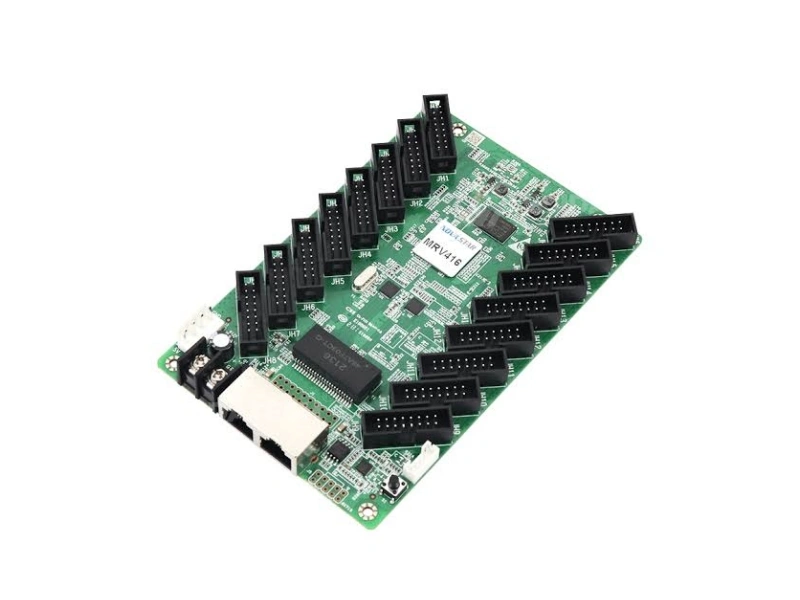

The MRV416-N’s 16 standard HUB75E connectors are its defining physical characteristic. Each connector drives one LED module via ribbon cable. With 16 ports and 32 groups of parallel RGB data, a single card can control up to 16 separate LED modules simultaneously — reducing the per-module cost of the control system in large installations.
Compare this to the MRV412 (12 ports) or entry-level cards with 8 ports: the MRV416-N requires 33% fewer cards than a 12-port card for the same installation, and half as many as an 8-port card. For a 200-module LED wall, that translates to 13 MRV416-N cards versus 17 MRV412 cards versus 25 entry-level cards — a meaningful BOM cost difference that compounds with scale.
3. 18bit+ vs 22bit+: Practical Differences for B2B Buyers
The MRV416-N features 18bit+ grayscale enhancement (4× improvement), while premium cards like the A8s offer 22bit+ (64× improvement). For most fixed installation and rental applications, 18bit+ delivers entirely adequate grayscale performance — smooth gradients, no visible banding at normal brightness, and clean color transitions.
The scenarios where 22bit+ matters most are: (1) ultra-low brightness operation where every grayscale step counts, (2) HDR content that demands expanded dynamic range, and (3) premium broadcast where cameras capture every subtle gradation. For the 80% of B2B LED display projects that don’t require these extremes, the MRV416-N’s 18bit+ is the cost-effective sweet spot.
4. EMC Class A vs Class B: What It Means for Your Installation
The MRV416-N is certified EMC Class A, which is suitable for industrial and commercial environments. Class A allows slightly higher electromagnetic emissions than Class B (found on the A8s), which is required for residential and broadcast-studio environments. For outdoor billboards, warehouse displays, trade show booths, and most commercial installations, Class A is perfectly adequate. If your LED display will operate adjacent to sensitive broadcast equipment or in residential areas, consider the A8s with its Class B certification instead.
5. TCO Analysis: MRV416-N as the Value Leader
The MRV416-N occupies the optimal price-performance position in NovaStar’s receiving card portfolio. With 16 ports, 512×512 loading, 18bit+, Color Management, pixel-level calibration, and full redundancy features (loop backup, dual program, dual config), it delivers approximately 80% of the A8s’s feature set at roughly half the cost. For budget-conscious B2B projects that still demand professional-grade reliability, the MRV416-N is the value leader.
6. Conclusion
The NovaStar MRV416-N LED receiving card is the smart choice for B2B buyers who need professional LED display control without flagship pricing. Its 16 HUB75E ports, 512×512 capacity, 18bit+ grayscale, and unique Ethernet disconnect detection make it the most capable card in the MRV family. Sourced through LEGIDATECH with pre-shipment testing and engineering support, it’s an investment that pays for itself through reduced card count, lower maintenance, and reliable operation.
