Colorlight X8m LED Video Controller — Ultra 4K Processor with 8 Ethernet Ports & 5.24M Pixel Capacity
The Colorlight X8m is an Ultra-4K LED video controller with powerful video signal input and processing abilities. It supports 4K@60Hz input via DP1.2 and HDMI2.0, drives up to 5.24 million pixels across 8 Gigabit Ethernet ports, and delivers up to 6 simultaneous windows with independent layer control. Built for high-end rental staging, broadcast studios, fine-pitch command centers, and large-scale commercial displays.
What Is the Colorlight X8m LED Video Controller?
The Colorlight X8m is Colorlight’s mid-to-high-end Ultra-4K LED video controller, purpose-built for demanding applications requiring 4K@60Hz input, multi-layer compositing, and high pixel density output. As an evolution beyond the X4 and X8, the X8m introduces 4K-capable DP1.2 and HDMI2.0 inputs, 8 Gigabit Ethernet outputs with a combined 5.24 million pixel capacity, and an advanced 6-window layer engine. USB drive playback, Genlock synchronization, 3D support, and 128 preset scenes make it the go-to choice for rental staging companies, broadcast OB vans, and large-format fine-pitch installations. As a leading LED screen manufacturer, LEGIDATECH supplies the X8m factory-direct with 3-year warranty and pre-shipment testing.
🎭
4K Input Ready
DP1.2 + HDMI2.0 accept up to 4096×2160@60Hz. Four additional HDMI1.4 ports for 2K sources. Custom EDID, independent cropping per input.
📈
5.24M Pixel Capacity
8 Gigabit Ethernet ports drive up to 5.24M pixels at 8-bit 60Hz. Max 16,384 width × 8,192 height. Per-port redundancy for mission-critical displays.
🎦
6-Window Multi-Layer
Up to 6 independent windows with free positioning, scaling, and cropping. Minimum window 64×64 pixels. Seamless input switching with Genlock frame sync.
Colorlight X8m Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Colorlight X8m (X-Series) |
| 4K Inputs | 1× DP1.2 (4096×2160@60Hz), 1× HDMI2.0 (4096×2160@60Hz) |
| 2K Inputs | 4× HDMI1.4 (1920×1200@60Hz), HDCP 1.4 |
| Total Loading Capacity | 5,240,000 pixels (5.24 million) at 8-bit 60Hz |
| Max Output Width | 16,384 pixels |
| Max Output Height | 8,192 pixels |
| Ethernet Outputs | 8× RJ45 Gigabit Ethernet, 655,360 pixels per port |
| USB Media Playback | 1× USB drive port, supports NTFS/FAT32/exFAT, video & image playback |
| Max Windows/Layers | Up to 6 windows, 1 layer per window, minimum 64×64 pixels |
| Genlock Sync | Internal V-sync, signal source input, auto-genlock by layer |
| Preset Scenes | 128 user-defined presets with tour mode |
| 3D Support | Optional (active 3D glasses sold separately) |
| OSD | Optional on-screen display support |
| Front Panel | LCD screen, Rotary knob, Function keys (OK/Bright/ESC/Lock), Source keys (HDMI2.0/DP/HDMI1-4), Media/Mode keys |
| Control Interfaces | USB 2.0 (Type-B IN, Type-A OUT for cascading), RJ45 LAN, RS232 (RJ11) |
| Audio | 1× AUDIO IN (3.5mm), 1× AUDIO OUT (3.5mm), HDMI/DP audio decoding |
| Color Management | Precise color temperature, adjustable color gamut, improved low-brightness grayscale |
| Input Voltage | AC 100–240V, 50/60Hz |
| Rated Power | 52W |
| Dimensions | 482.6 × 44.0 × 360.0 mm (1U rack-mount, no foot pads) |
| Net Weight | 4.24 kg (9.35 lbs) |
| Operating Temperature | −20°C to +50°C (−4°F to 122°F) |
| Certifications | CE, FCC, IC, UKCA |
Key Features of the Colorlight X8m
1. Ultra-4K Input via DP1.2 & HDMI2.0
Both DP1.2 and HDMI2.0 ports accept up to 4096×2160@60Hz resolution with custom EDID settings. Maximum custom width: 8,192 pixels (8192×1080@60Hz). Maximum custom height: 8,192 pixels (1080×8192@60Hz). Independent cropping per input port.

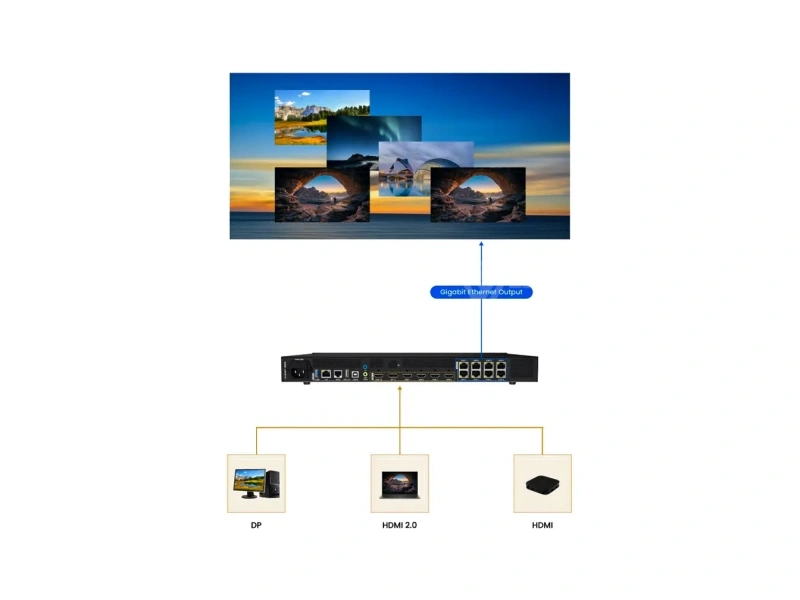

2. 6-Window Multi-Layer Compositing
Up to 6 simultaneous windows with free positioning, scaling, and independent cropping. When using one 4K source plus four HD sources, supports up to 5 windows. Two 4K sources support 2 independent windows. Each layer can be freely positioned and resized with a minimum of 64×64 pixels.
3. USB Drive Standalone Playback
Built-in USB media player supports NTFS, FAT32, and exFAT drives. Plays video formats (3GP, AVI, FLV, M4V, MKV, MP4, TP, TS, VOB, WMV, MPEG) and images (JPEG, PNG, WEBP, GIF, BMP). Maximum playback resolution: 4096×2160@60Hz. No PC required for digital signage applications.
4. 128 Preset Scenes with Tour Mode
Save and instantly recall up to 128 complete display configurations. Tour mode auto-cycles through presets at configurable intervals — ideal for advertising networks, control rooms, and multi-purpose venues.
5. Genlock Frame Synchronization
Internal V-sync locking, external signal source input, and auto-genlock by active layer ensure zero-tear, frame-accurate output across all cascaded units. Essential for broadcast studios and multi-camera live productions.
6. Precise Color Management
Independent color temperature and gamut adjustment per output. Improved low-brightness grayscale rendering maintains full 16-bit precision at reduced luminance — critical for indoor fine-pitch displays and HDR-mapped content.
7. LAN + RS232 + USB Control
Three redundant control paths: Ethernet LAN for networked management, RS232 for central control system integration, and USB for direct PC configuration via LEDVISION. Mobile app control also supported.
8. Redundancy & Reliability
Per-port Ethernet redundancy backup ensures zero downtime. Built-in power protection with replaceable fuse. Wide operating temperature range (−20°C to +50°C). CE, FCC, IC, UKCA certified.
Colorlight X8m Front & Back Panel Interface Guide

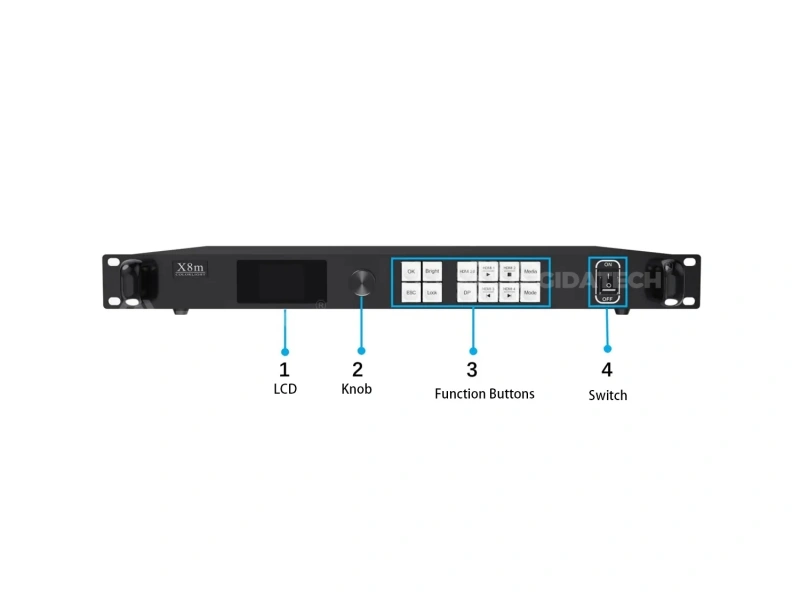

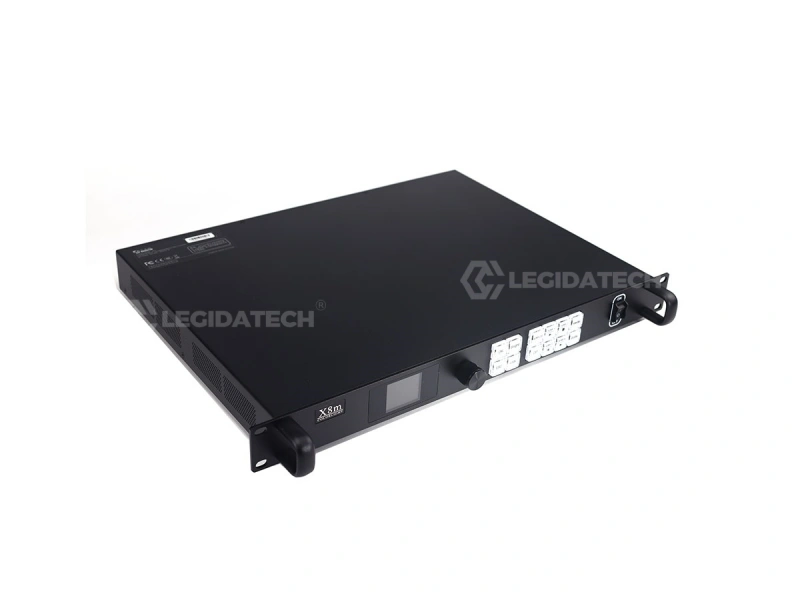

Front Panel Controls
| LCD Screen | Displays operation menu and system information |
| Knob | Rotate to scroll menus; press to enter/confirm |
| OK | Confirm selection |
| Bright | Quick brightness adjustment |
| ESC | Exit current interface |
| Lock | Lock front panel buttons |
| Source Keys | HDMI2.0/DP/HDMI1/HDMI2/HDMI3/HDMI4 — direct signal switching |
| Media | Enable USB media playback |
| Mode | Select preset scene |
| Power | ON/OFF switch |

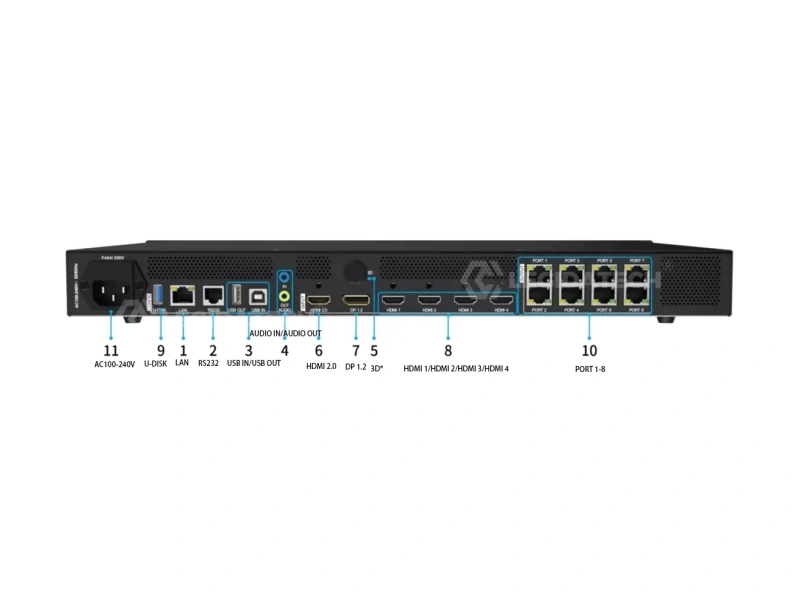

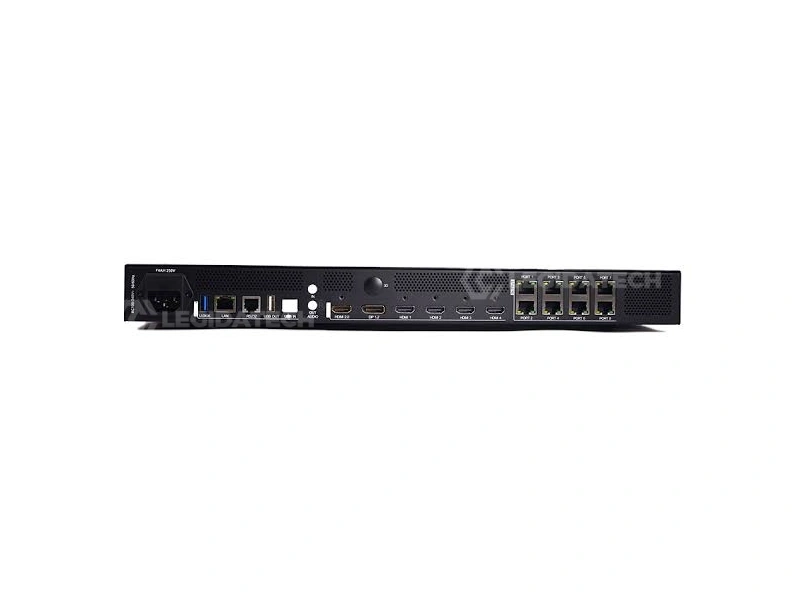

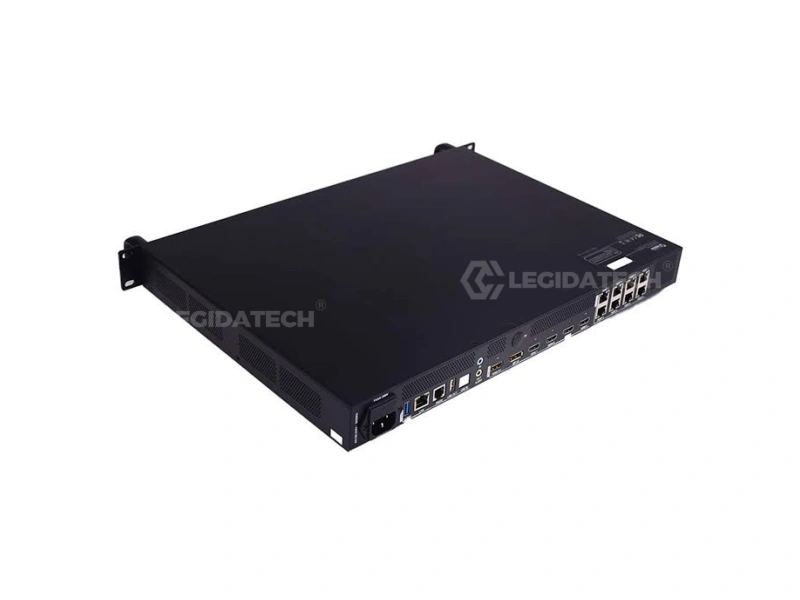

Back Panel Interfaces
| HDMI2.0 | 1×, up to 4K@60Hz, HDCP incompatible |
| DP1.2 | 1×, up to 4K@60Hz |
| HDMI1-4 | 4× HDMI1.4, 1920×1200, HDCP 1.4 |
| U-DISK | USB drive playback port |
| PORT 1-8 | 8× RJ45 Gigabit Ethernet |
| LAN | RJ45 network control |
| RS232 | RJ11 central control |
| USB IN/OUT | Type-B (PC config), Type-A (cascade) |
| AUDIO IN/OUT | 3.5mm stereo |
| 3D | 3D sync output (optional) |
How to Set Up the Colorlight X8m Controller
The X8m is configured via LEDVISION software (Windows). A USB cable, Cat5e/6 Ethernet cables, and your video sources are all the additional hardware required.

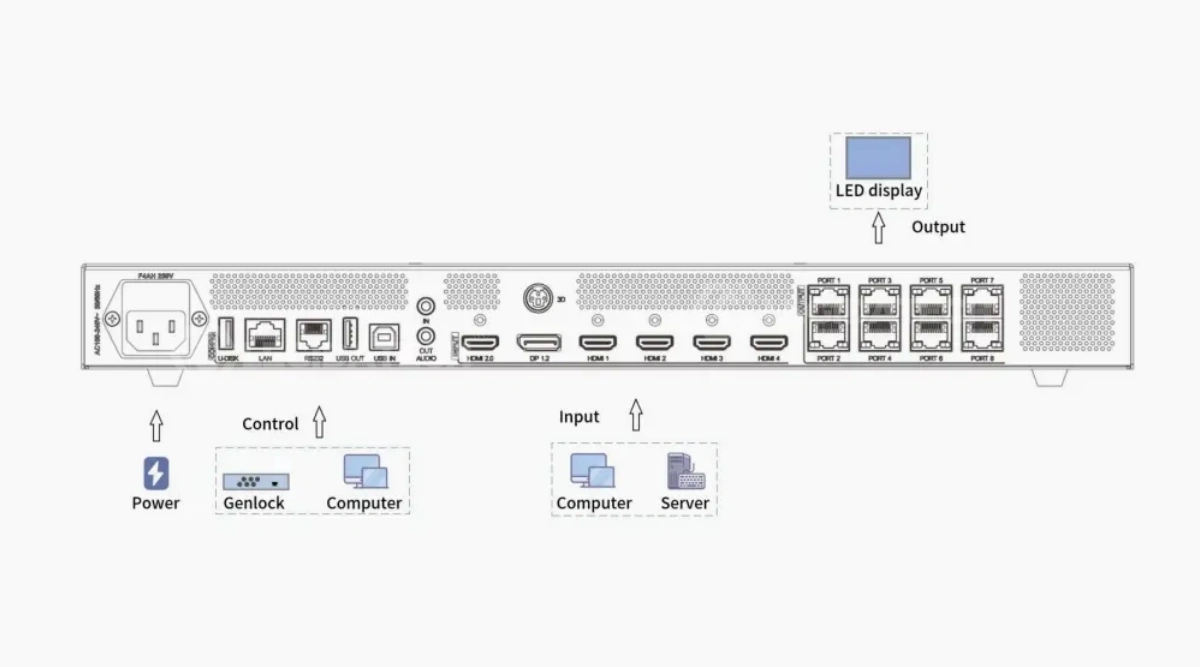

Hardware Connection
Connect USB IN to PC. Plug video sources into DP/HDMI ports. Connect Ports 1-8 to receiving cards via Cat5e/6. Attach power — LCD displays firmware version on boot.
LEDVISION Configuration
Launch LEDVISION. Auto-detect X8m via USB. Configure screen parameters, receiving card mapping, and Ethernet port assignments. Set input resolution and window layout. Send to hardware.
Calibration & Go Live
Adjust brightness, color temperature, and gamma. Configure Genlock sync source. Save as a preset. For cascaded setups, verify frame sync across all units. System ready for live operation.
Product Gallery — LEGIDATECH Colorlight X8m Controller
Actual photographs of Colorlight X8m controller units stocked and shipped from our Shenzhen facility.
Product Videos — Colorlight Official Demonstrations
X4m Video Controller Walkthrough
Official Colorlight product walkthrough of the X4m video controller — the X8m shares the same interface design and LEDVISION workflow.
LED Calibration Explained
How Colorlight ensures perfect display uniformity — calibration techniques applicable to X8m-controlled LED walls.
5G+8K Display Technology Solutions
World’s first mass-produced 5G control system — see the technology behind Colorlight’s high-end controller lineup including the X8m.
ISLE 2026 High-End Receiving Cards
ISLE 2026 showcase of Colorlight’s latest high-end receiving cards — fully compatible with the X8m controller.
Why Source Your Colorlight X8m from LEGIDATECH?
✅
Genuine Factory-Sealed
Direct from Colorlight authorized channel. Serial number verification available.
📦
Pre-Tested Before Shipping
Each X8m powered on, connected to test LED wall, all 6 inputs and 8 outputs verified.
🌎
Global Shipping
40+ countries. DHL/FedEx (3–5 days), Air (7–10), Sea (25–35). English support.
🛡
3-Year Warranty
Full 3-year warranty — double the industry standard. 30-day DOA replacement.
Frequently Asked Questions
What is the maximum loading capacity of the Colorlight X8m?
5.24 million pixels (5,240,000) across 8 Gigabit Ethernet ports at 8-bit 60Hz. Each port drives up to 655,360 pixels. Maximum output resolution: 16,384 × 8,192 pixels. For larger projects, multiple X8m units can be cascaded via USB with Genlock synchronization.
Does the X8m support 4K input?
Yes. The X8m features one DP1.2 port and one HDMI2.0 port, both supporting 4096×2160@60Hz (Ultra 4K). Custom resolutions support up to 8,192 pixels in width (8192×1080@60Hz) or height (1080×8192@60Hz). Four additional HDMI1.4 ports handle 2K sources at 1920×1200@60Hz with HDCP 1.4.
How many windows can the X8m display simultaneously?
Up to 6 windows. When using 1× 4K source + 4× HD sources: up to 5 windows. With 2× 4K sources: 2 windows. Without 4K sources: up to 6 HD windows. Each window supports free positioning, scaling, and cropping with a minimum size of 64×64 pixels.
What’s the difference between X8m and X4?
The X8m represents a significant upgrade: 4K input (vs 2K), 8 Ethernet ports (vs 4), 5.24M pixel capacity (vs 2.3M), 6-window multi-layer (vs single layer), USB media playback, Genlock sync, 128 presets, and 3D support. The X8m is built for high-end applications; the X4 serves mid-scale projects. For more on the ecosystem, see what is Colorlight control system.
Can the X8m play content without a PC?
Yes. The built-in USB drive port supports standalone playback of videos and images. Supported formats include MP4, MKV, AVI, MOV, JPEG, PNG, WEBP, GIF, and BMP. Video playback supports up to 4096×2160@60Hz (H.264/H.265). USB drives must be formatted as NTFS, FAT32, or exFAT.
Does the X8m support 3D displays?
Yes, 3D is supported as an optional feature. The 3D sync output on the rear panel connects to active 3D glasses emitters (sold separately). Both frame-sequential and side-by-side 3D formats are supported.
How do I update the X8m firmware?
Via LEDVISION software: download the latest firmware package from Colorlight’s website, connect X8m to PC via USB, navigate to Device Settings → Version → Upgrade. The process takes 3–5 minutes. Always export a backup of your configuration before updating.
What is the factory-direct price of the X8m from LEGIDATECH?
As an authorized Colorlight distributor, LEGIDATECH offers the X8m at factory-direct pricing significantly below retail. Volume discounts apply for 2+ units. Contact us for a customized quotation including controllers, receiving cards, and express worldwide shipping.
