Colorlight X2 LED Display Controller
The Colorlight X2 is a professional-grade LED display controller with 1.3 million pixel capacity, 5 video inputs (SDI/HDMI/DVI/VGA/CVBS), dual Gigabit Ethernet outputs, and independent LCD control panel. Supplied factory-direct by LED screen manufacturer LEGIDATECH with pre-configuration, testing, and global shipping.
What Is the Colorlight X2?
The X2 is the most widely deployed mid-range controller in the Colorlight ecosystem — trusted for rental LED walls, fixed indoor installations, conference rooms, and commercial advertising screens worldwide.

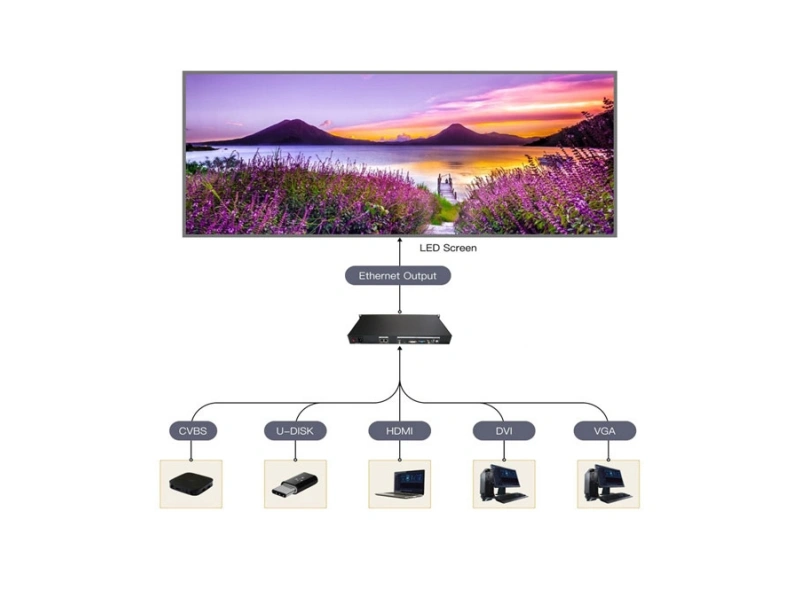

Multi-Source Flexibility
SDI, HDMI, DVI, VGA, and CVBS inputs cover everything from broadcast cameras to legacy equipment — no external converters needed in most setups.
Dual Gigabit Ethernet
Drives up to 2560 pixels width/height per port. At P3 pitch, one X2 handles ~7 m² — perfect for mid-scale commercial installations.
On-Device Control
Full menu-driven access to brightness, EDID, input switching, and output settings — configure without a laptop on site.
6 Core Capabilities of the Colorlight X2
Multiple Video Signal Inputs
5 independent ports (SDI, HDMI, DVI, VGA, CVBS) plus audio input. Seamless integration with cameras, media players, laptops, and legacy equipment.
1.3 Million Pixel Load
2 Gigabit Ethernet outputs drive up to 2560 pixels width/height. Cascade multiple units via USB for larger displays.

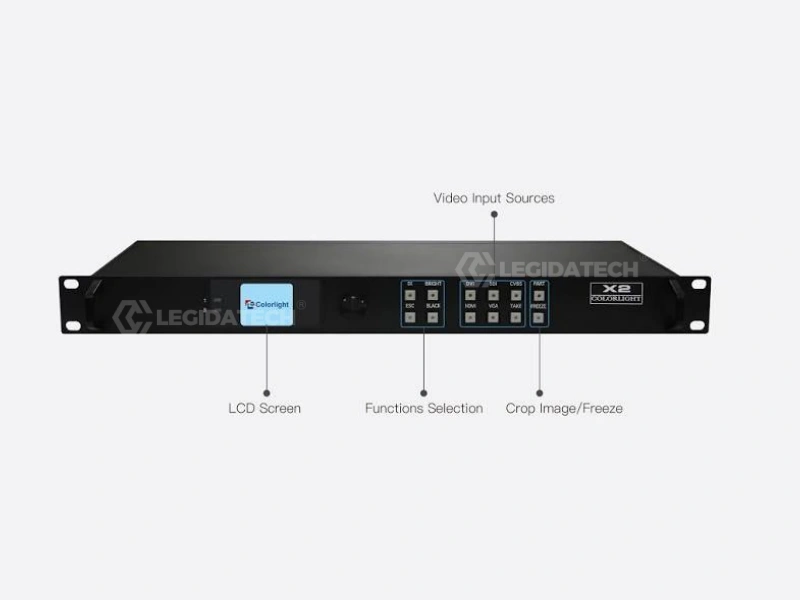

Independent LCD Control Panel
1.8-inch display with rotary knob and function keys (BRIGHT, BLACK, TAKE, PART, FREEZE) for on-device operation.
Improved Low-Brightness Grayscale
Superior gray-scale rendering at reduced luminance — essential for indoor conference rooms and broadcast studios.
Multi-Controller Sync
Strict frame-level synchronization via USB daisy-chaining. Pixel-perfect alignment across multiple units with unified brightness control.
HDCP 1.4 & Full Ecosystem
Protected content playback. Compatible with all Colorlight receiving cards, multifunction cards, and fiber transceivers.
Technical Specifications
Based on the official Colorlight X2 User Manual V1.0. All units undergo 72-hour burn-in testing before shipment.
| Parameter | Specification |
|---|---|

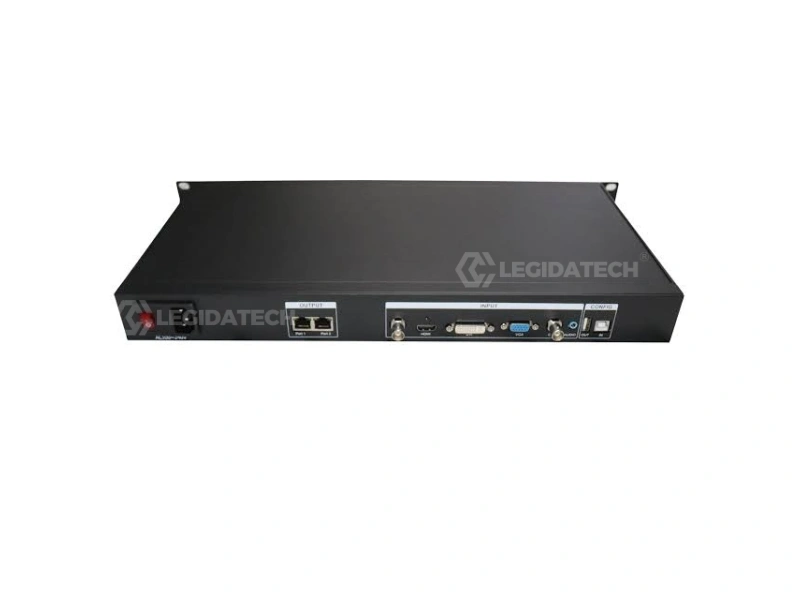

| Video Input Ports | SDI x1, HDMI x1, DVI x1, VGA x1, CVBS x1, Audio x1 |
| Max Input Resolution | 1920 x 1200 pixels @ 60 Hz |
| Loading Capacity | 1.3 million pixels |
| Max Width / Height | 2560 pixels (per port) |
| Ethernet Outputs | 2 x Gigabit Ethernet (RJ45), CAT5E/CAT6 |
| USB Interfaces | USB IN (PC config) + USB OUT (cascade) |
| Front Panel | 1.8-inch LCD + rotary knob + function keys |
| Power Input | AC 100-240V, 50/60Hz |
| Power Consumption | 20W (typical) |
| Operating Temp | -25C to +80C (-13F to 176F) |

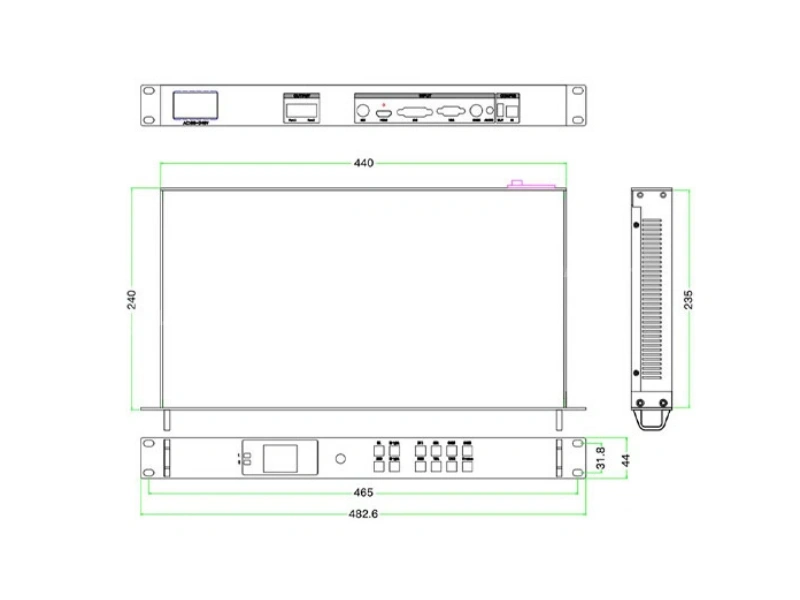

| Mounting | 1U standard rack-mountable |
| Net Weight | 2.0 kg (4.4 lbs) |
| HDCP Support | HDCP 1.4 compliant (DVI/HDMI) |
| Control Software | LEDVISION (free download) |
Colorlight X Series: Which Controller Fits Your Project?
| Model | Pixel Load | Ethernet | Max Resolution | Video Inputs | Best For |
|---|---|---|---|---|---|
| X1 | 0.65M | 1x GbE | 1920×1200 | DVI, HDMI, VGA | Small fixed displays |
| X2 RECOMMENDED | 1.3M | 2x GbE | 1920×1200 | SDI/HDMI/DVI/VGA/CVBS | Rental, fixed, commercial |

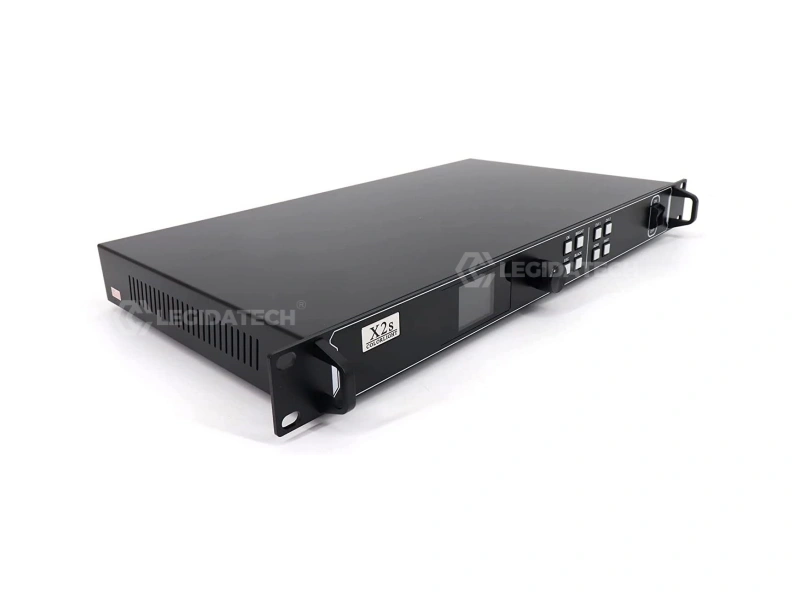

| X2s | 1.3M | 2x GbE | 1920×1200 | HDMI, DVI | Budget rentals |
| X4 | 2.6M | 4x GbE | 1920×1200 | SDI/HDMI/DVI/VGA/CVBS | Large screens, splicing |
| X4s | 2.6M | 4x GbE | 1920×1200 | HDMI, DVI | Cost-sensitive large installs |
LEDVISION 7-Step Configuration
Hardware Connection
Connect X2 to AC 100-240V power. Use USB A/B cable from X2 USB IN to PC. Connect video sources (SDI/HDMI/DVI/VGA/CVBS). Run CAT5E/CAT6 cables from Port 1/2 to receiving cards.
Install LEDVISION
Download from colorlightinside.com. Compatible with Windows 7/8/10/11. Select English during installation.
Detect Senders & Receiving Cards
Navigate Control > Screen Control. Click Detect Senders, then Detect Receiver Cards per port. Verify card count matches installation.
Screen Parameters
Configure Output (signal source, scaling), EDID (resolution), and Screen Parameters (load .rcfg file for your LED module). Click Send to push to receiving cards.
Connection Mapping
Set Row/Col Count per port based on cabinet layout. Use Connection Pattern tool for auto-fill or manual selection for irregular arrangements.
Calibration
Adjust brightness and color temperature (default 6500K). Enable Better Gray mode for indoor displays. Pair with SSR-L29 sensor for auto-brightness.
Save & Deploy
Click Save to Receiver to write parameters permanently. X2 auto-loads configuration on startup — no PC needed for normal operation.
4 Core Application Scenarios
Rental LED Video Walls
Multi-input switching + cascading for live events. Front-panel source toggling enables seamless transitions. Ideal for stage rental LED displays.
Fixed Indoor Installations
Conference rooms, auditoriums, houses of worship. Silent fanless design, 20W power, stable 24/7. Perfect for indoor LED screen projects.
Commercial Advertising
Shopping malls, retail stores, outdoor LED billboards. HDCP compliance for protected content + auto-brightness via light sensors.
Broadcast & Virtual Production
SDI input + improved low-brightness grayscale for XR virtual production studios where color accuracy and camera-friendly refresh rates are critical.
Why LEGIDATECH
Why Buy X2 from LEGIDATECH?
Factory-Direct Pricing
As an LED screen manufacturer, we supply X2 at factory prices — no distributor markups. Bundle with LED panels for additional savings. Volume discounts available.
Pre-Configured & Burn-in Tested
Every X2 ships with rcfg files matching your LED modules. 72-hour burn-in test across all ports before packing. Plug-and-play — no hours of setup required.
2-Year Warranty + Global Shipping
Genuine product with full manufacturer warranty. Lifetime tech support via WhatsApp, email, video call. Air express (3-7 days) or sea freight (25-40 days) to 80+ countries.
Complete Your LED Controller Setup
Pair the Colorlight X2 with these compatible products for a complete LED display control system.
Colorlight X4 Controller
2.6M pixels, 4x GbE ports, full SDI/HDMI/DVI/VGA/CVBS input. Next step up for larger LED displays.
Novastar MCTRL300
1.3M pixel alternative controller. Compare features and pricing with the X2 for your specific needs.
Colorlight S20 Sender
Professional sending box with 20 GbE ports. Ideal for large-scale fixed LED display installations.
Huidu HD-A6L Controller
Cost-effective asynchronous controller for digital signage and simple display applications.
LED Control System Bundle
Controller + receiving cards + power supplies + cables. Pre-configured, plug-and-play system.
LED Display Screen Solutions
Complete LED screens with pre-installed controllers. Indoor, outdoor, and rental — factory direct pricing.
Frequently Asked Questions
What video input ports does the X2 support?
Short answer: 5 ports — 1x SDI, 1x HDMI, 1x DVI, 1x VGA, 1x CVBS — plus audio input. Covers broadcast cameras to legacy VGA sources.
How many pixels can the X2 control?
Short answer: 1.3 million pixels across 2 Gigabit Ethernet ports, max 2560 pixels per port. Optimal for P3 displays up to ~7 m² or P4 up to ~15 m².
Can multiple X2 units be cascaded?
Short answer: Yes. USB OUT to USB IN daisy-chaining with strict frame-level sync. Each controller manages its display section with unified output.
What receiving cards are compatible?
Short answer: All Colorlight cards — E320, 5A-75B/E, i5A-905/907, 5A-F, A8, i9, i9+ — plus multifunction cards (iM9, M9) and fiber transceivers (H2F, H10Fix, H16F).
What is the price of the X2?
Short answer: $125-$350 USD depending on supplier and quantity. Factory-direct from LEGIDATECH with volume discounts. Contact us for a quote.
X2 vs X2s — what is the difference?
Short answer: X2s drops SDI/VGA/CVBS inputs and the LCD panel, priced $110-$150. X2 keeps full 5-port suite and LCD — better for professional use.
Does the X2 support 4K input?
Short answer: No. Max input is 1920×1200@60Hz. For 4K, upgrade to Colorlight X5/X7/X8/X20 series or consider Novastar COEX processors.
How long does shipping take?
Short answer: 24-72h handling. Air express 3-7 days. Sea freight 25-40 days. DDP terms available for select destinations.
Get Your Colorlight X2 Factory Price Today
Tell us your LED display configuration — we’ll recommend the optimal controller with pre-configuration and testing. Response within 2-4 hours.
