P10 LED Module

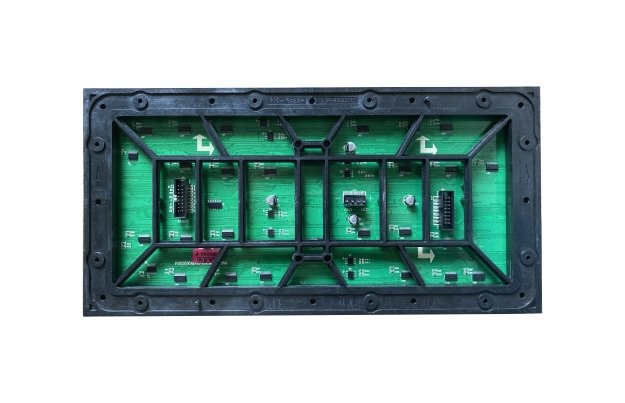

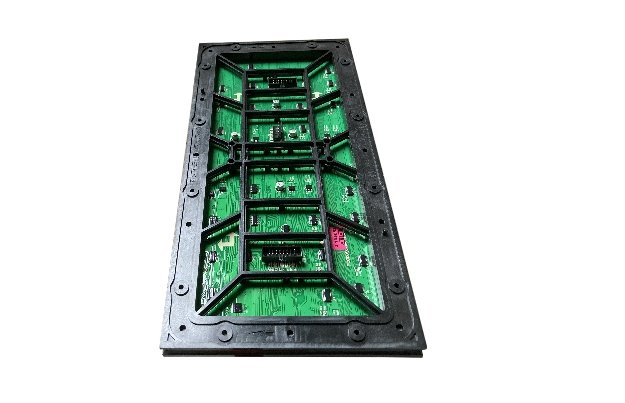

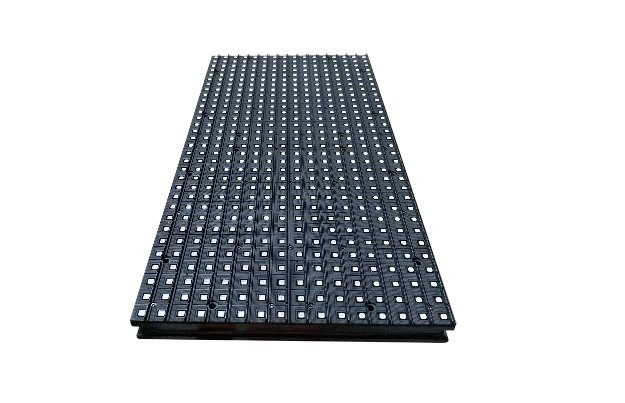

P10 Outdoor LED Screen Module 320mmx160mm
- Pixel Pitch: 10mm
- Module Size: 320*160mm
- Module Resolution: 32*16
- CE,RoHS,FCC Approved
- 2 Years Warranty
- In Stock
- P10 led module
- Data sheet
- TECH ARTUCLES
Brightness and refresh of LED modules
Whether it is an indoor or outdoor LED display, customers will pay attention to its brightness and refresh to judge the quality of the LED screen.
For outdoor LED modules, we provide a variety of brightness options: the brightness of the LED module for stage activities is 4500nits, the brightness of the outdoor advertising LED display is 6000nits, and it can also be 8000 and 10000nits.
The refresh rate of all our LED screens and modules is 3840hz, unless the customer requires low refresh rate products due to budget reasons.
Full color lamp beads
High-quality full-color surface-mount lamp beads, stable quality, good color rendering effect and long life.
Waterproof of led module
When installing screens, many customers want to save the cost of the box but are worried about the waterproofness and durability of the module for outdoor use.
We can promise that LEGIDATECH’s outdoor modules are as highly waterproof and moisture-proof as the outdoor LED display.
LED display module lighting test
After the production is completed, we will place each module on the aging rack for lighting testing.
Ensure that every lamp bead of every module is inspected, and faulty modules are repaired and replaced in a timely manner to ensure the quality of the modules and prevent customers from receiving dead lamp products.
Complete accessories
pure copper wire; power adapter; power cables; rainbow wiring; screws; flat cables
vacuum plastic sealing; foam strips to protect the surrounding area
| Value | |
| Pixel Pitch | 10 |
| Module Size(mm) | 320*160 |
| Module Pixel | 32*16 |
| Brightness | 4500 |
| Pixel Configuration | SMD2121 |
| Colors | 281trillion |
| Refresh Rate (HZ) | ≥3840 |
| Pixel Matrix Per Sq.m | 43264 |
| View Angle (H/V) | 140/140 |
| Power Comsuption(max/avg) | 400/150 |
| IP Rate | IP45/65 |
| Input Voltage (AC) | 110/240 |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
Outdoor LED Screen Module Manufacture &Aging Test
Our LED modules not only provide superior lighting effects, but also have excellent contrast capabilities.
The high contrast of LED modules makes the image sharper and clearer, allowing viewers to better appreciate every detail in the image.
Compared to traditional lighting products, Outdoor LED modules have a higher contrast ratio and are able to present more realistic and vivid colors, creating a more lifelike visual experience.
Whether it’s on an outdoor billboard, a mall display, or an indoor video wall, our LED modules provide excellent contrast performance to make your content unique and eye-catching.
By utilizing our LED modules to the fullest, you can display higher-quality images, attract more attention, and enhance your brand image for greater market competitiveness.
Our packaging materials are composed of strong cartons and bubble wrap, which can effectively resist physical impact and extrusion from the outside world. The cushioning effect of the bubble film can minimize the collision and damage of the module during transportation. We also use special padding to ensure each module remains secure and stable in the packaging.
During the packaging process, we strictly adhere to international transportation norms and standards. Each LED module will be carefully inspected by our professional team and properly packaged and labeled to ensure the integrity of the goods.
In the aging test, we expose the LED module to an environment of high temperature, high humidity, and high pressure, and run it continuously for a period of time to simulate long-term working conditions under actual use. Through this aging test, we can evaluate the stability, reliability and lifespan of the LED module.
In testing, we focus on the following aspects:
1. Brightness stability: Whether the brightness of the LED module remains stable without any obvious attenuation after long-term operation.
2. Color retention: Whether the color of the LED module is durable and whether there will be obvious color shift.
3. Light attenuation: the degree of light attenuation of the LED module and whether it meets the product performance indicators.
4. Power supply stability: Whether the LED module can work stably at the set voltage and current to ensure normal operation for a long time.
Through these tests, we can determine the stability and life of the LED module, discover and correct possible problems in a timely manner, and ensure that product quality meets customer needs.
