Huidu HD-C16C: The Wi-Fi LED Control Card That Needs No Receiving Card

1. The Over-Engineering Problem: Why Most Small Displays Have More Controller Than They Need

Walk down any commercial street and count the small LED displays: a 640×192 price board outside a gas station. A 384×256 menu display above a fast-food counter. A 512×128 welcome sign at a parking entrance. These displays share two characteristics: they are small (well under 100,000 pixels), and — if you opened their electrical enclosures — you would likely find a metal-box controller connected to a separate receiving card connected to a power supply, with a tangle of cables in between.

This is over-engineering. A traditional control box + receiving card setup is designed to drive displays of 500,000 pixels or more. Using it for a 50,000-pixel display is like using a server-grade power supply to charge a smartphone — it works, but you are paying for capacity you will never use, in a form factor that complicates installation, consumes unnecessary power, and occupies space that small-display enclosures simply do not have.

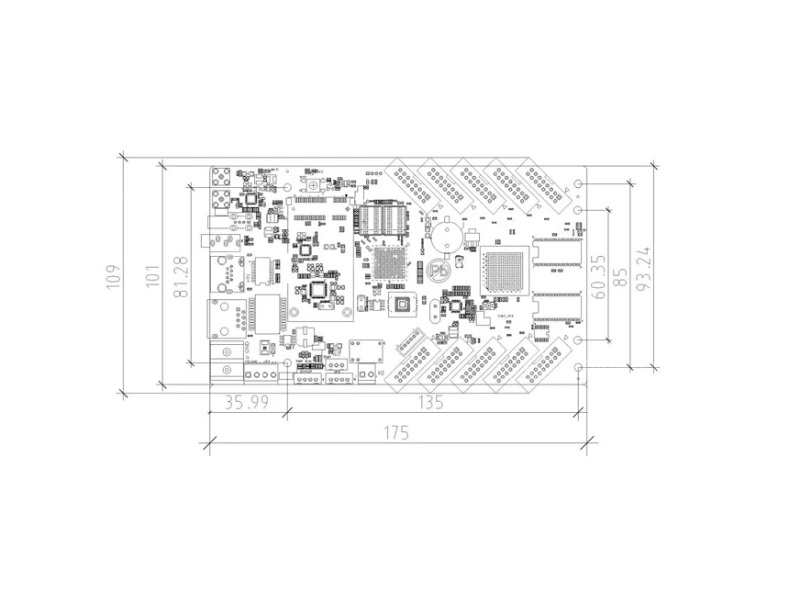

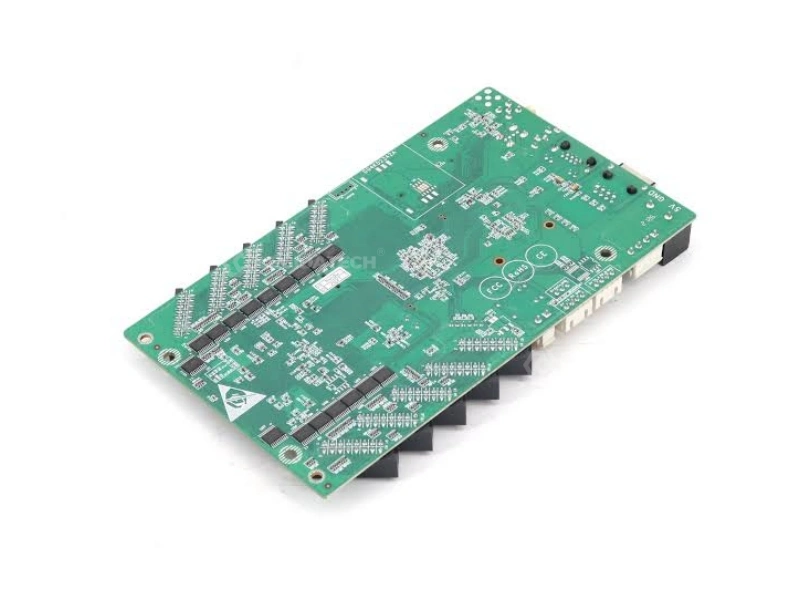

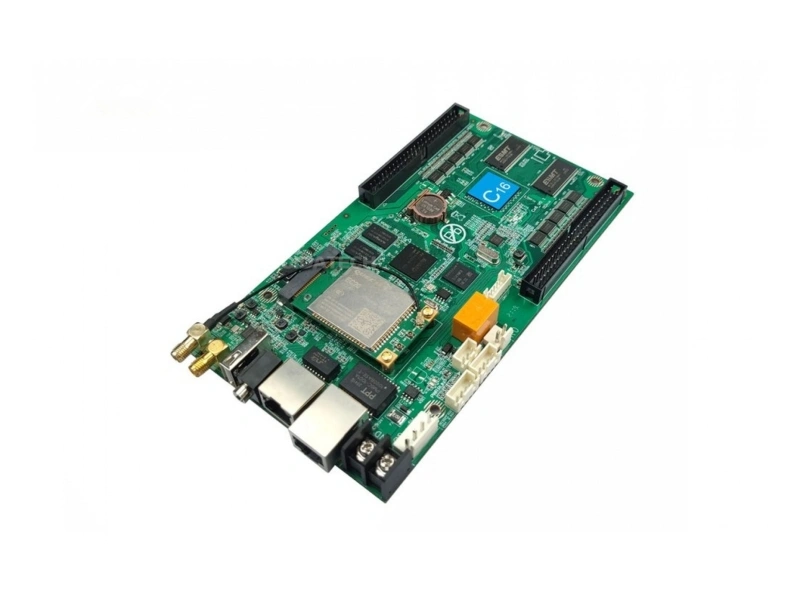

The Huidu HD-C16C Wi-Fi LED control card was designed specifically for this overlooked majority of the market. By integrating the sending card, receiving card, and Wi-Fi module onto a single 0.12 kg PCB with direct HUB75E output, it eliminates the unnecessary hardware that traditional controller architectures impose on small displays. The result: simpler installation, lower BOM cost, smaller enclosure, and lower power consumption — without sacrificing any essential playback capability.

2. Integrated vs. Separated: The Hardware Count Difference

Let us count the devices in a typical small LED display installation using both approaches, driving a 384×256 full-color display (98,304 pixels — well within the C16C’s 120K limit):

Traditional approach (control box): 1× control box (e.g., A3), 1× receiving card, 1× 12V power supply for the controller, 1× 5V power supply for the modules, RJ45 cables, HUB75E ribbon cables, Wi-Fi antenna, mounting brackets. Total devices in the signal chain: 4 (controller, receiver, 2 power supplies) plus cables.

C16C approach (integrated card): 1× C16C card, 1× 5V power supply (shared — powers both the card and the modules), HUB75E ribbon cables, Wi-Fi antenna. Total devices in the signal chain: 2 (card, 1 power supply) plus cables. That is a 50% reduction in active components. Each eliminated device removes a potential point of failure, reduces installation labor (fewer connections to make and test), and shrinks the required enclosure volume — particularly valuable for small displays where every cubic centimeter matters.

3. The C16C Architecture: What “Sending + Receiving on One Board” Actually Means

The C16C achieves its integration through a unified FPGA architecture that handles both the content management functions of a sending card (program storage, decoding, scheduling, network communication) and the display driving functions of a receiving card (scan control, grayscale processing, module communication via HUB75E). On a traditional two-device setup, these functions are handled by separate processors on separate boards communicating over a Gigabit Ethernet link. The C16C collapses them onto a single processor with a shared memory bus.

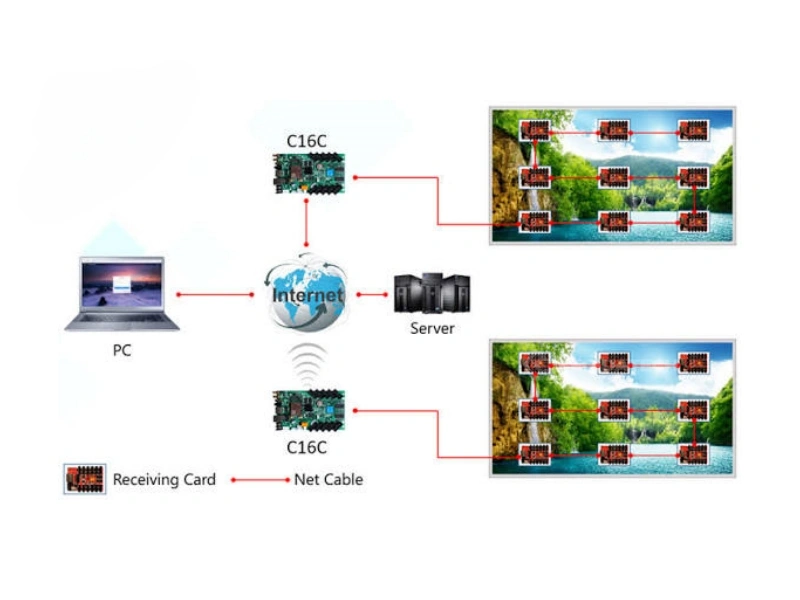

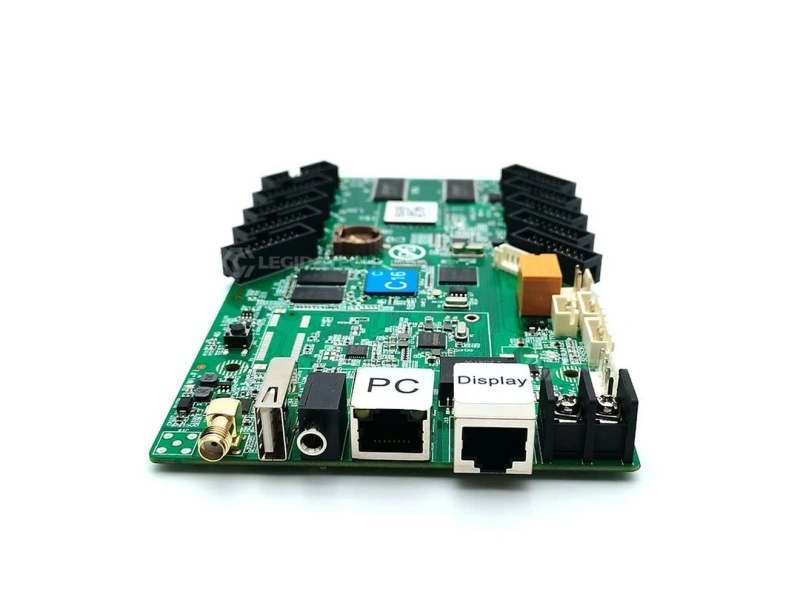

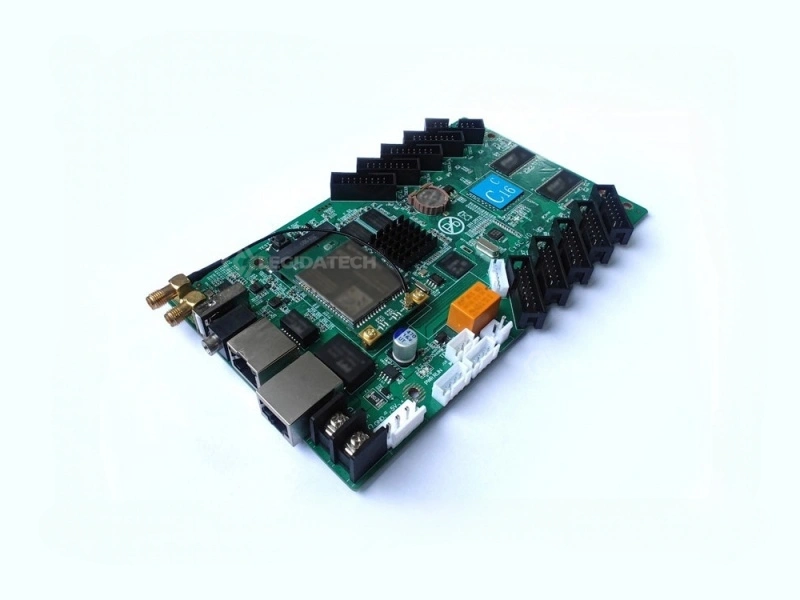

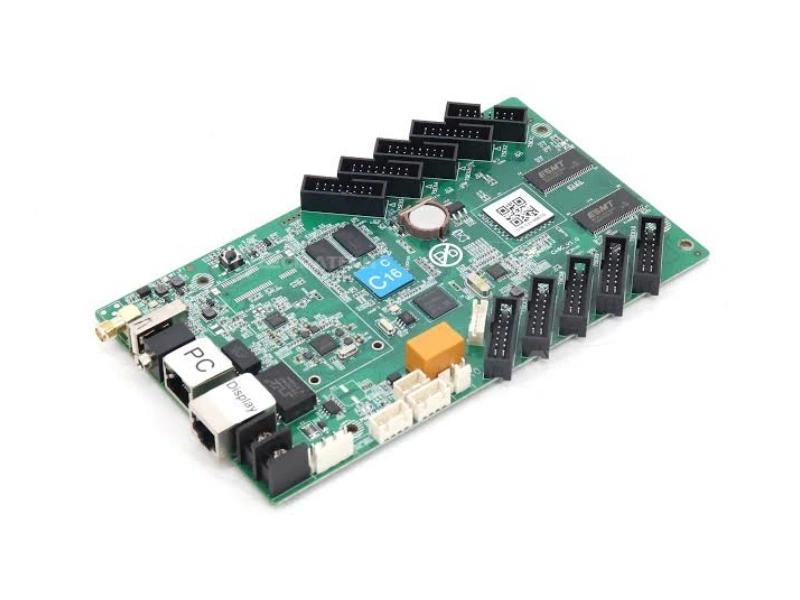

The 10 HUB75E ports are not an afterthought — they are the primary output interface. Each port uses the industry-standard 2×8 PIN layout and communicates directly with the LED module’s driver ICs. For displays requiring more than 10 modules or exceeding 120,000 pixels, the Gigabit output port activates and the C16C reconfigures its FPGA to function as a pure sending card — offloading display driving to external R Series receiving cards. This architecture gives integrators a straightforward decision: under 120K pixels and 10 modules = direct connect. Over either limit = add a receiving card. Same controller either way.

4. Installation Time Comparison: Card vs. Box in the Field

Based on feedback from system integrators who have deployed both architectures, here is the real-world installation time difference for a typical small display (6 modules, 384×192 pixels):

Control box approach: Mount the control box in the enclosure (4 screws). Mount the receiving card (2-4 screws or standoffs). Connect 12V power to the control box. Connect 5V power to the receiving card. Connect RJ45 from control box to receiving card. Connect HUB75E ribbon cables from receiving card to each of the 6 modules. Configure HDPlayer — set control box IP, receiving card parameters, module scan mode. Typical time: 45-75 minutes for an experienced installer.

C16C card approach: Mount the C16C card on standoffs (2-4 screws). Connect 5V power — shared with the modules. Connect HUB75E ribbon cables directly from the C16C to each of the 6 modules. Configure HDPlayer — the C16C auto-identifies; enter module parameters. Typical time: 20-30 minutes.

The difference is not just hardware count — it is the elimination of the network configuration step between controller and receiver, the reduction in power cabling (one voltage rail instead of two), and the simpler physical mounting (one card vs. box + card). Over a deployment of 20 small displays, the C16C approach saves approximately 15-20 hours of installation labor.

5. The Relay Advantage: Remote Power Control Without Additional Hardware

One of the C16C’s most practical features is the built-in relay controller — a feature absent from most controllers in this price band, including the more expensive A3. The relay switches the LED display’s main AC power supply on or off based on a schedule you program in HDPlayer or the mobile APP. Why does this matter?

A typical small outdoor LED display consuming 200W that runs 24/7 costs approximately $210 per year in electricity (at $0.12/kWh). If the display only needs to operate from 7 AM to 10 PM (15 hours), the nightly 9-hour shutdown saves $79 per year — a 38% reduction. The C16C’s relay achieves this automatically, with no external timer, no smart plug, no electrician-installed contactor. Over a 5-year deployment, the electricity savings alone can exceed the cost of the controller. This is the kind of practical, ROI-focused engineering that distinguishes purpose-built control cards from repurposed general-purpose controllers.

6. When to Step Up: C16C → C36C → A3 Decision Framework

The Huidu product line is designed as a ladder. Each step adds capacity and features for progressively larger or more demanding deployments. Here is the decision framework in one paragraph:

If your display is under 120,000 pixels and you want the simplest possible installation → C16C. Direct HUB75E connect, built-in relay, 5V power. If your display is between 120K and 262K pixels and you still want direct-connect simplicity → C36C. Same form factor, 2.2× the pixels, 10 HUB75E ports, but no relay. If your display is over 262K pixels or you need an industrial metal enclosure with more certifications and storage → A3 (655K pixels, 8GB, 5 certifications). If you need dual-mode async + HDMI sync with auto-scaling → A5. The key insight: don’t over-buy. A C16C driving a 50,000-pixel restaurant menu board will perform identically to an A3 driving the same display — at a fraction of the hardware cost, power consumption, and installation complexity.

7. The Bottom Line: Who Should Standardize on the C16C

After examining the integrated architecture, field installation data, and total cost picture, the recommendation is clear: System integrators and signage installers who regularly deploy small-to-medium LED displays (under 120,000 pixels) should make the C16C their default controller. The combination of integrated sending + receiving functionality, direct HUB75E module connection, built-in Wi-Fi, relay power control, 5V operation, and 0.12 kg weight delivers a simpler, faster, and more cost-effective installation than any control box + receiver combination in the same price band.

For displays exceeding 120K pixels, the C36C and A3 provide logical upgrade paths. But for the thousands of small displays powering retail windows, restaurant counters, community notice boards, parking signs, gym schedules, and school announcements — the C16C is the right controller. Not because it is the most powerful, but because it is the most appropriate. Sometimes the best engineering decision is knowing when less hardware does the job better.
