virtual production led wall-EXR
An virtual production led wall specially built for film and television shooting
- Pixel Pitch: P1.5/1.83/1.95/2.5 & P2.6
- Module Size: 250mm × 500mm
- LED Configuration: SMD 1415
- Cabinet Size: 500mm × 500mm
- Excellent cabinet design
- Good cooling design
- Easy maintenance

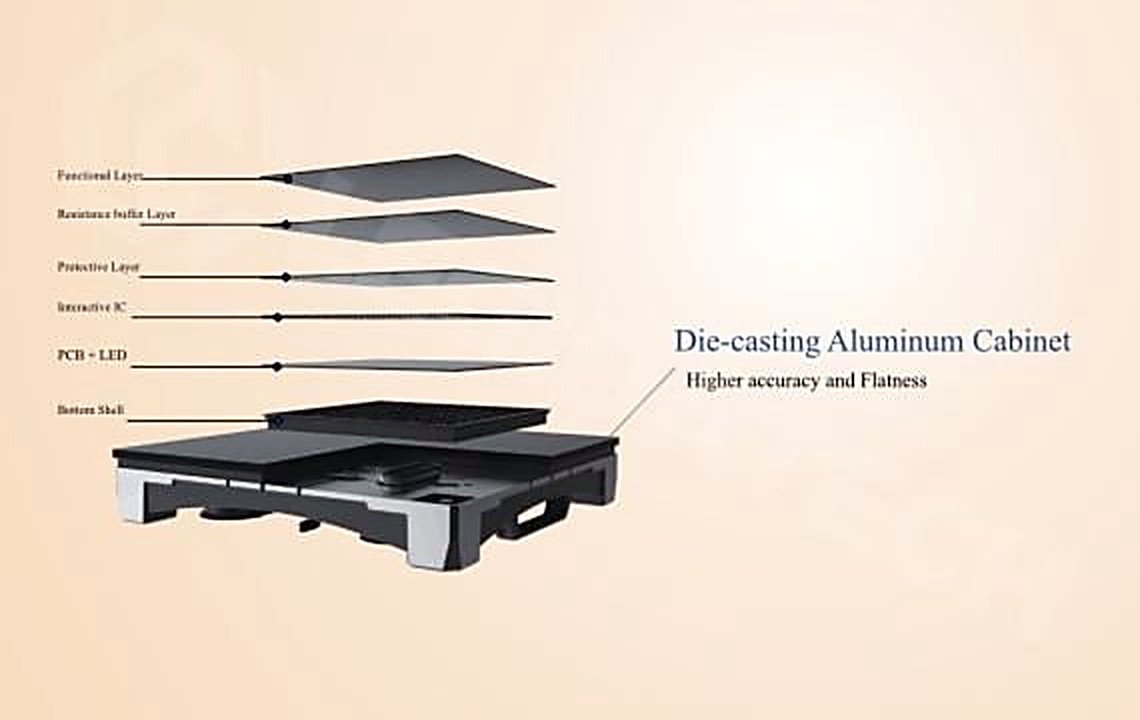

Virtual production led wall structure
The mask is made of high-strength PC material with good light transmittance and impact resistance, which can effectively protect the LED chip from interference from the external environment.
The PCB signal line is made of high-quality copper material, which has good conductivity and oxidation resistance, ensuring stable and reliable signal transmission.
Application features
LED Film display screen has high display effect, reliability and adaptability, and can be used with multiple screens.

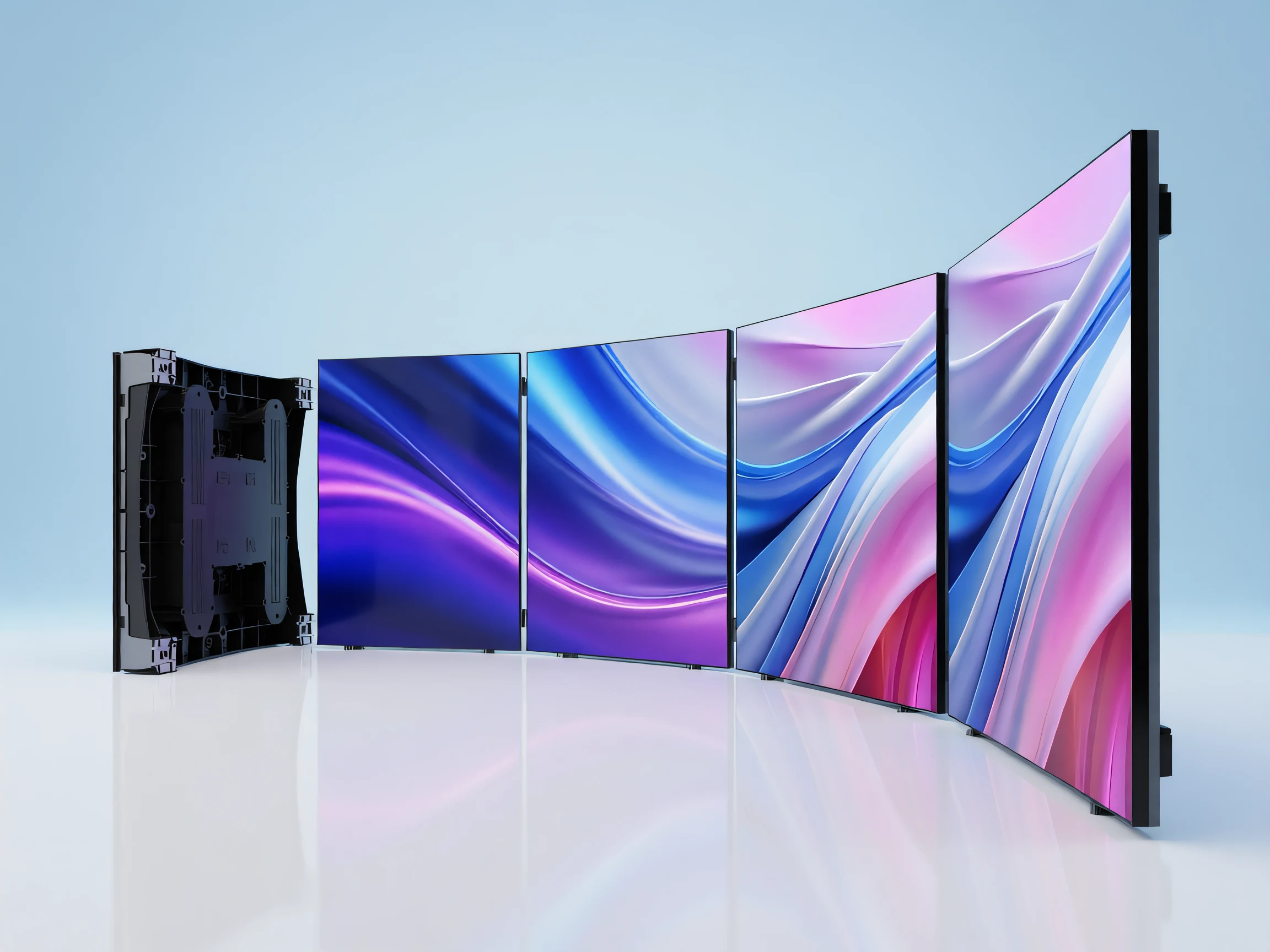

It can be used as a floor tile screen, a curved screen or even a U-shaped screen, so it is widely used in many fields, such as studios and exhibition halls.
As well as commercial plazas that attract people’s attention through high-brightness and high-definition images to promote product sales and brand promotion.

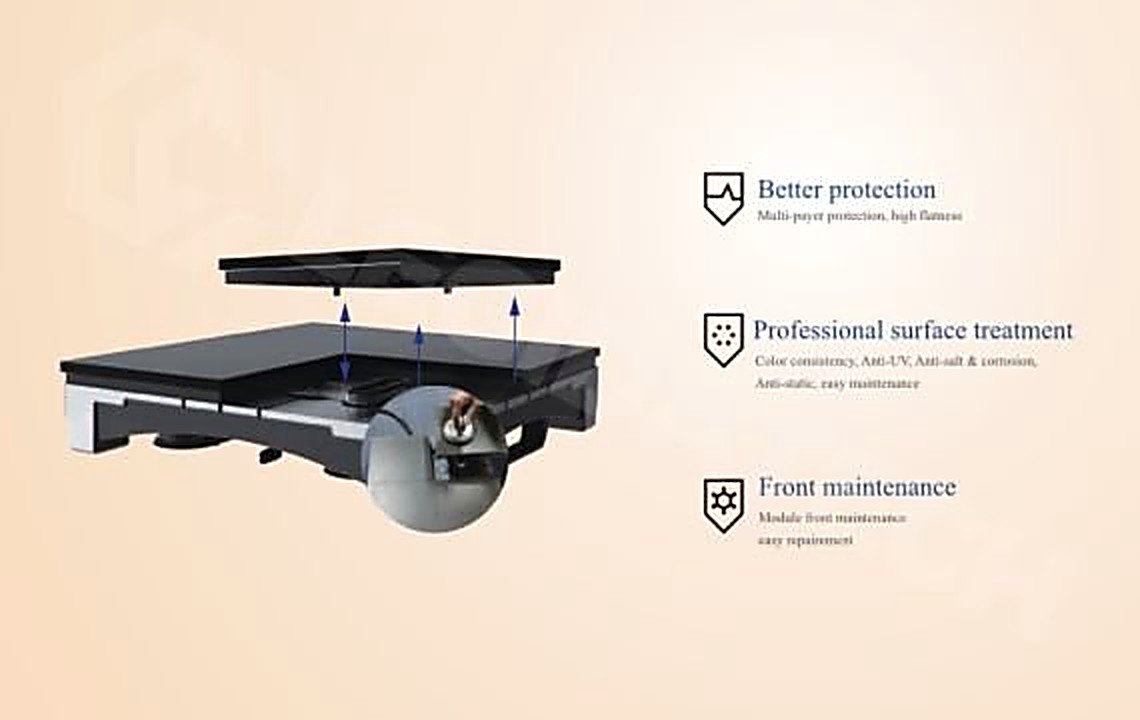

Details and features
Better protection
Multi-party payment protection, high flatness
Professional surface treatment
Color consistency, UV resistance, salt corrosion resistance,
Anti-static and easy to maintain
Pre-maintenance
Module front maintenance, supports direct removal
Easy to repair

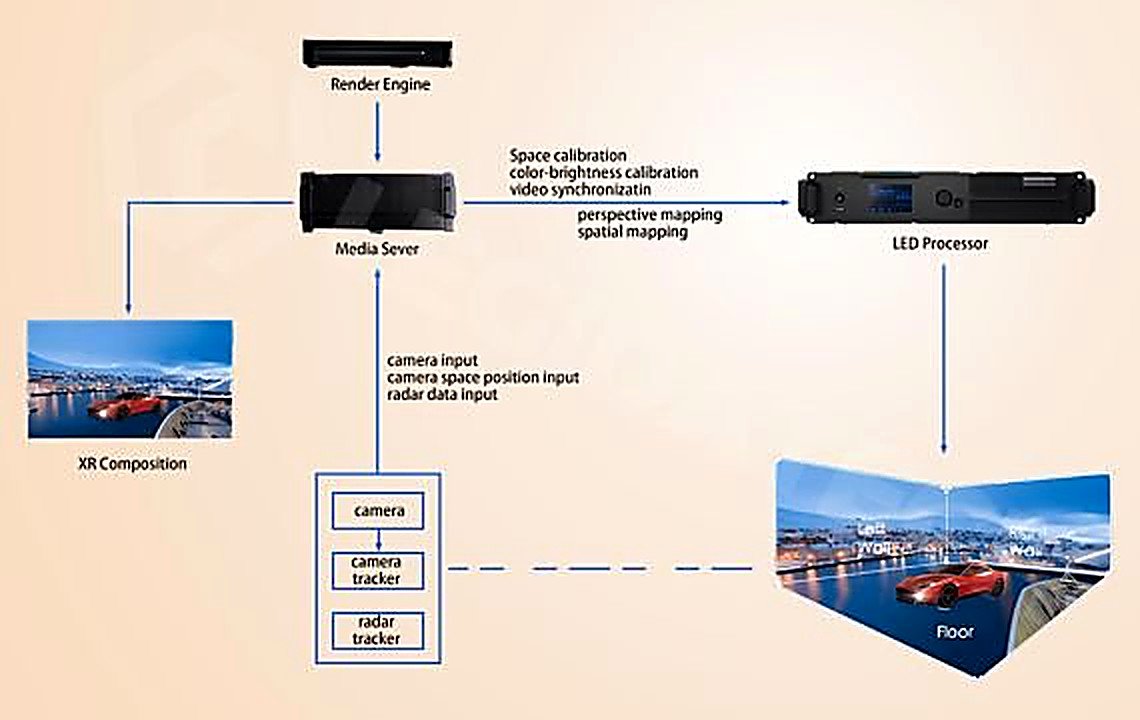

System connection
The XR LED screen can be connected to a computer or other device using HDMI, DP (DisplayPort) or DVI, or through a video output port such as a network connection.
Some XR LED screens require the use of dedicated control systems to transmit and manage data.
The specific connection and data transfer methods may vary depending on the brand and model of the XR LED screen. Before connecting and transferring data, be sure to follow the screen’s user manual
- Data sheet 1
- Date sheet 2
| Model Number | XR0115 | XR0118 | XR.0119 | XR 0125 | XR 0126 |
| Pixel Pitch(mm) | 1.52 | 1.83 | 1.95 | 2.5 | 26 |
| LED Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1415 | SMD1415 |
| Module Resolution | 164×164 | 136x 136 | 128×128 | 100×100 | 96×96 |
| Module Dimensions (mm) | 250×250×19.5 | 250×250×19.5 | 250×250×195 | 250×250×19.5 | 250×250×195 |
| Cabinet Dimensions | 328×328 pixels | 272×272 pixels | 256×256 pixels | 200×200 pixels | 192×192 pixels |
| Cabinet Dimensions (mm) | 500x500x87.5 | 500×500×87.5 | 500×500×875 | 500×500×87.5 | 500×500×875 |
| Contrast Ratio | >6,500:1 | >6,500:1 | >6,500:1 | >6,500:1 | >6,500:1 |
| Brightness(cd/m) | 600 | 600 | 600 | 600-1200 | 600-1200 |
| Max./Avg.Power | 200/100 | 200/100 | 200/100 | 200/100 | 200/100 |
| Viewing Angle | 160°/160° | ||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||
| Refresh Rate | 7680Hz | ||||
| IPRating(Front/Rear) | IP54/IP45 | ||||
| Cabinet Weight (Kg | 11.5 | ||||
| Cabinet Materi al | Aluminum Dicasting | ||||
| Max Load-Bearing | 1000Kg | ||||
| gray level | 12-16bits | ||||
XR LED display——Virtual production LED wall
XR LED (Extended Reality LED) display technology is an innovative display technology that combines augmented reality (AR), virtual reality (VR) and mixed reality (MR) technologies to provide a more realistic and immersive visual experience.
This article will introduce the principles, advantages and applications of virtual production led wall in detail, and answer some related questions.
1. Principle of virtual production led wall technology
Virtual production LED wall technology is based on LED (Light Emitting Diode, light emitting diode) technology. Its principle is to use the high brightness, high contrast and fast response characteristics of LED point light sources to create images on the human body through specific imaging algorithms and electron microscope technology.
Presented within the pupil of the eye. By changing the position and brightness of the LED point light source, visually realistic virtual images are created.
2. Advantages of virtual production led wall
1. High contrast: Virtual production LED wall technology can achieve high-contrast image display, making the virtual world and the real world seamlessly connected, enhancing the user’s immersion.
2. Fast response: The LED point light source of XR LED display technology responds very quickly and can present images at millisecond speed, reducing image afterimages and providing smoother visual effects.
3. High brightness: The LED point light source of xr studios technology has the characteristics of high brightness, which can provide clear and bright images in bright environments and improve user experience.
4. Power saving and environmental protection: Compared with traditional liquid crystal display technology, XR LED display technology requires less energy and does not contain harmful substances such as mercury, making it more environmentally friendly.
5. Strong customizability: virtual production led wall can be customized according to different application requirements, including resolution, screen size, screen shape, etc., providing greater flexibility.
3. Application of virtual production led wall
1. Game entertainment: XR LED display technology can provide more realistic visual effects for games, improving the immersion and realism of games.
2. Education and training: XR studios technology can be used in teaching scenarios such as virtual laboratories and virtual classrooms to help students better understand and learn.
3. Healthcare: virtual production led wall can be used in medical simulation, surgical training and other medical fields to provide a more realistic experience and operating environment.
4. Design and engineering: XR LED display technology can help designers and engineers better perform virtual design, modeling and simulation, and improve work efficiency.
5. Military and aerospace: XR studios technology can be used in flight simulators, tactical training and other fields to provide a highly realistic virtual training environment.
4. Answers to some common questions about virtual production led wall
1. What are the advantages of XR LED display technology compared with traditional liquid crystal display technology?
Answer: XR studios technology has the advantages of high contrast, fast response, high brightness, etc. It is more realistic, immersive, power-saving and environmentally friendly.
2. Does virtual production led wall technology require special equipment support?
Answer: Yes, XR LED display technology requires special equipment support, including LED point light sources, electron microscopes, etc.
3. Does XR LED display technology have a glasses-like display effect?
Answer: Yes, XR LED display technology can display virtual images by wearing XR glasses.
4. Is XR LED display technology suitable for outdoor environments?
Answer: Yes, XR studios technology has the characteristics of high brightness and is suitable for display needs in outdoor environments.
Summary: Virtual production LED wall is an innovative display technology that combines augmented reality, virtual reality and mixed reality technology.
It has the advantages of high contrast, fast response, high brightness, etc., and is suitable for games and entertainment, education, training, health care, design and applications in many fields such as engineering.
With the continuous development and improvement of technology, virtual production led wall is expected to become an important development direction of display technology in the future.
