Church LED Screen in Apapa, Lagos: Apostolic Church P2.5 Case Study
This is a real installation, documented on site. In November 2025, the Apostolic Church in Apapa, Lagos, installed a 1.92 × 0.96 m Ehonor P2.5 LED screen on the front wall of its main sanctuary. Both photos below were taken inside the church while the final installation was still in progress.
Short answer: The Apostolic Church in Apapa, Lagos runs a 1.92 × 0.96 m P2.5 indoor LED screen (Ehonor series) hung on the sanctuary’s front wall, centred above the platform. At 2.5 mm pixel pitch it resolves 768 × 384 pixels — about 1.84 m² of display, compact enough to mount flat against the wall and sharp enough to carry lyrics and sermon media to every seat, gallery included. LEGIDATECH built and shipped it as a standard-panel system.
Project Facts
| Client | The Apostolic Church, Apapa |
|---|---|
| Country | Nigeria — Apapa, Lagos |
| Application | Church main sanctuary — front-wall stage screen |
| Product | Ehonor Series indoor fixed LED display |
| Pixel Pitch | P2.5 (2.5 mm) |
| Screen Size | 1.92 × 0.96 m (≈ 1.84 m²) |
| Resolution | 768 × 384 px |
| Screen Type | Indoor fixed installation, wall-mounted front screen |
| Supplier | LEGIDATECH |
- One 1.92 × 0.96 m screen on the sanctuary’s front wall — the room’s single display, seen from the floor seating and the gallery above.
- P2.5 pixel pitch — 160,000 pixels per square metre, 768 × 384 pixels across the full screen.
- A wall-mounted fixed install: the screen hangs flat against the plaster wall above the platform — the setup ladders were still beside it when these photos were taken.
- Already live during the final installation — playing full-motion video in one photo and holding a slide in the other, while the platform furniture was still under covers.
The Client
The Apostolic Church’s Apapa assembly meets in a mid-size sanctuary in Apapa, the port district on Lagos’s harbour front. The room is built for a community congregation — cream-plastered walls, red-carpeted wooden pews, ceiling fans against the Lagos heat, and a gallery running above the main floor behind a dark timber railing.
The LED screen hangs on the front wall above the platform — the one surface every seat already faces. Placement matters more than size in a room like this, which is why fixed front-wall builds keep coming up across church LED screen projects in Nigeria: permanent, wired in, and matched to the geometry of the space.
The Screen: Ehonor Series P2.5 Indoor LED Display
The screen is an Ehonor Series P2.5 indoor LED display — the fine-pitch indoor line behind several of our Nigerian church builds, and at 1.92 × 0.96 m the smallest of them so far. Four things matter for a compact build like this:
- A fine pitch on a small canvas. The screen resolves 768 × 384 pixels. On a display this size, pitch does the work area does in a bigger hall — 2.5 mm keeps scripture readable from the back pews, with no pixel grid showing.
- Built to hang on a wall. A slim fixed indoor cabinet that mounts flat against the plaster wall — no truss, no floor footprint, and the sanctuary keeps its full depth for choir and instruments.
- Camera-friendly refresh. A high refresh rate keeps the screen clean on camera — no scan lines or banding when the church films its services, which both site photos confirm.
- Standard panel system. The display assembles from eighteen standard Ehonor cabinets in a 6 × 3 grid, so a spare module is a plug-and-play swap — minutes of downtime, not a lost Sunday.
Installation: What the Site Photos Show

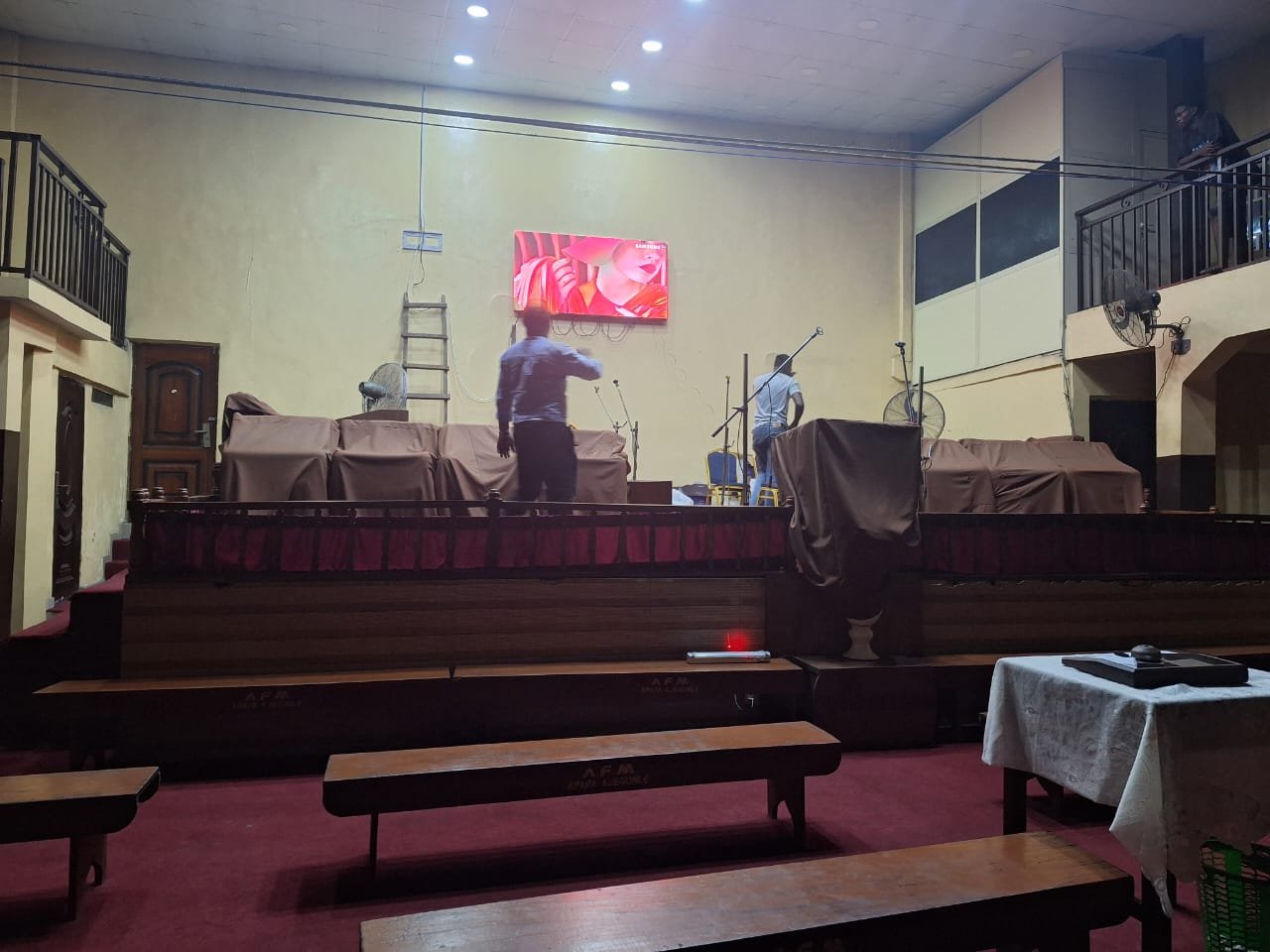

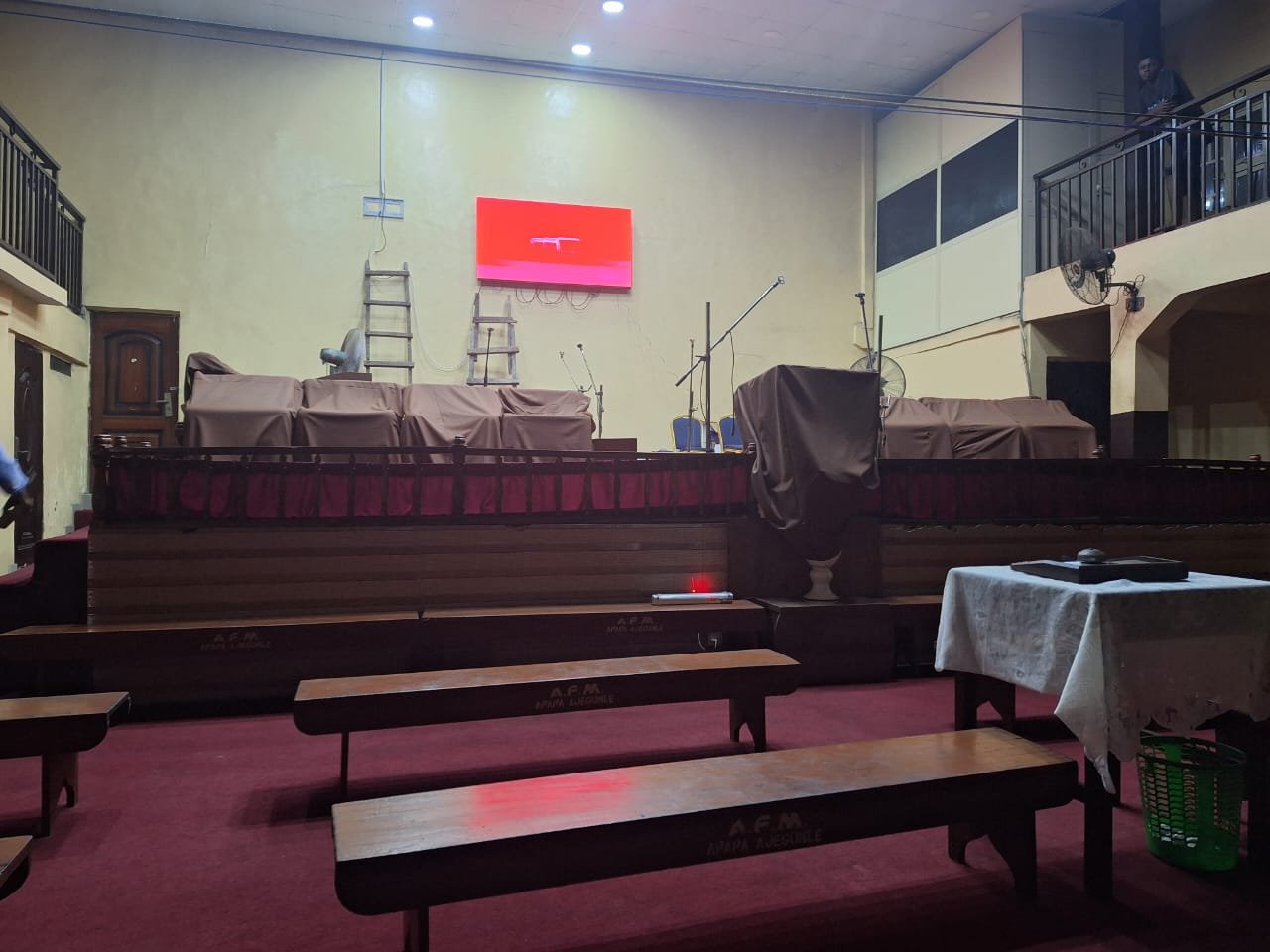

The site photos show the install as it happened rather than staged for a showroom. In the first, the screen is already hung and playing full-motion video while a worker positions a microphone stand below it and the setup ladder leans against the wall. In the second, the sanctuary is caught mid-preparation — platform furniture still under covers, the screen holding a slide above it all.
Two details are worth calling out: the screen sits high enough that sightlines from the gallery clear anyone on stage, and the cabling already drops in a tidy line from the top of the display — the part of the job that decides how the wall looks for the next ten years.
The Screen in Action
Neither photo shows a showroom demo — both show working content: full-motion video in one frame, a static slide in the other, with lyric slides, scripture, sermon points, announcements and clip playback in between, all switched from a standard LED controller without touching the hardware. And because both frames were captured handheld on ordinary phones in a lit room, they double as a camera test — the picture stays smooth and band-free on the capture, which is what keeps a recorded service usable.
Why P2.5 Works Well for a Church LED Screen
Church viewing is a specific problem: seats at very different distances, small text on screen, cameras rolling, and stage lighting that shifts through the service. A P2.5 LED screen answers each part.
Distances a mid-size sanctuary really has. The floor is compact but the gallery adds depth — nearest pews a few metres from the platform, farthest balcony seats past ten metres. At 2.5 mm the picture holds across that range: lyric text reads up front, and the back rows never see a pixel grid. Single-level halls can step up to P3 to save budget; anything with a gallery is safer on P2.5.
Church LED screen vs projector. As we set out in our LED screen vs projector comparison for churches, a projector needs throw distance, a clean wall and a darkened room — and it loses contrast exactly when the service peaks. An LED display is self-emissive: it holds its black level against the cream wall it hangs on, runs the whole service with no lamp to change, and photographs cleanly for the church’s recordings. On a compact screen like this, the factory-direct price is the final argument.
LED Screens in Lagos Churches
Lagos is the most active church LED screen market we ship to, and the documented installs keep stacking up: a P2.5 Ehonor build in the Hoares Memorial Cathedral in Lagos, the same series in Salem Christian Ministry’s auditorium in Lekki, and in the same month as this project a nightclub LED screen build in Lekki put the identical hardware to work in a very different room. Apapa adds a different point on that map — a port-district sanctuary where 1.84 m² of fine-pitch display is all the room needs, one more documented LED screen in Nigeria on the Ehonor P2.5 line.
FAQ
What LED screen did the Apostolic Church in Apapa install?
A 1.92 × 0.96 m Ehonor Series P2.5 indoor LED screen — about 1.84 m² of display, resolving 768 × 384 pixels — hung on the front wall of the sanctuary, centred above the platform.
What pixel pitch is right for a small church LED screen?
For compact front-wall screens, P2.5 is the sweet spot. On a small display the pitch carries the detail: 2.5 mm keeps lyric text and scripture readable from mid-room distances, while larger halls with viewing past fifteen metres usually step up to P3 or P4.
Why do churches install LED screens instead of projectors?
LED screens hold their contrast under stage lighting, need no throw distance or lamp replacements, and stay camera-friendly for recorded and streamed services. A projector fades exactly when the service peaks; a fixed church LED display is built for the room and stays part of it.
Can LED screens be shipped and installed in Apapa, Lagos?
Yes. Apapa is Lagos’s port district, and LEGIDATECH ships LED screens into Nigeria regularly — documented installs include a Lagos cathedral, a church LED screen in Abuja, and church and nightlife projects in Lekki. Screens travel in export packing with spare modules, with remote support continuing after delivery.
How much does a church LED screen cost in Nigeria?
Factory-direct indoor LED screens typically run between US$350 and US$1,500 per square metre depending on pitch and configuration. A compact 1.84 m² P2.5 build like this one lands around US$2,000–3,000 before sea freight and clearing. The full breakdown is in our LED screen price guide for Nigeria.
What can the church LED screen display?
Lyric slides, scripture, sermon points, announcements, video clips and camera feeds — all from a standard LED controller. The media team switches between them for services, programmes and events without changing any hardware.
Planning a church LED screen for a sanctuary in Apapa or anywhere else in Lagos? Send us the wall measurements and how deep the room runs — we will reply with a pitch recommendation, a screen layout and a factory-direct quote, the same standard-panel P2.5 build now running in Apapa. Request a quote for your church’s LED screen.
