NovaStar MRV412-N LED Receiving Card — 512×512 12-HUB75E Cost-Effective Controller
A cost-effective general receiving card with 12 HUB75E connectors, 24-group parallel RGB data, 18bit+ grayscale, 512×512 pixel loading, and EMC Class A compliance. The budget-friendly choice in the MRV family — factory-supplied by LEGIDATECH for B2B LED display projects.
What Is the NovaStar MRV412-N LED Receiving Card?

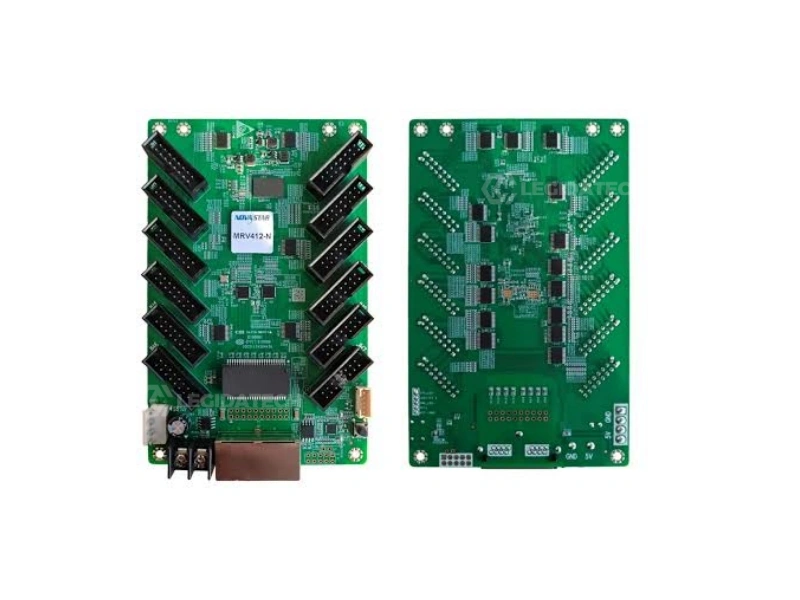

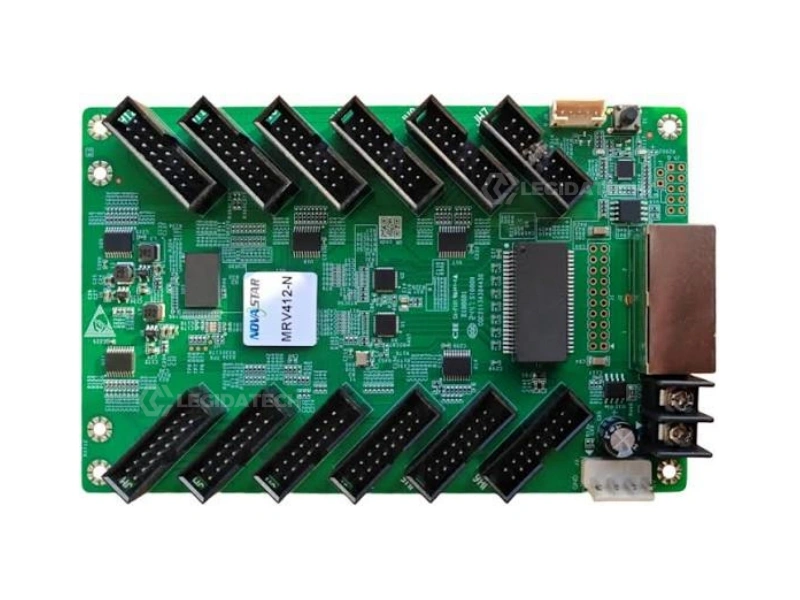

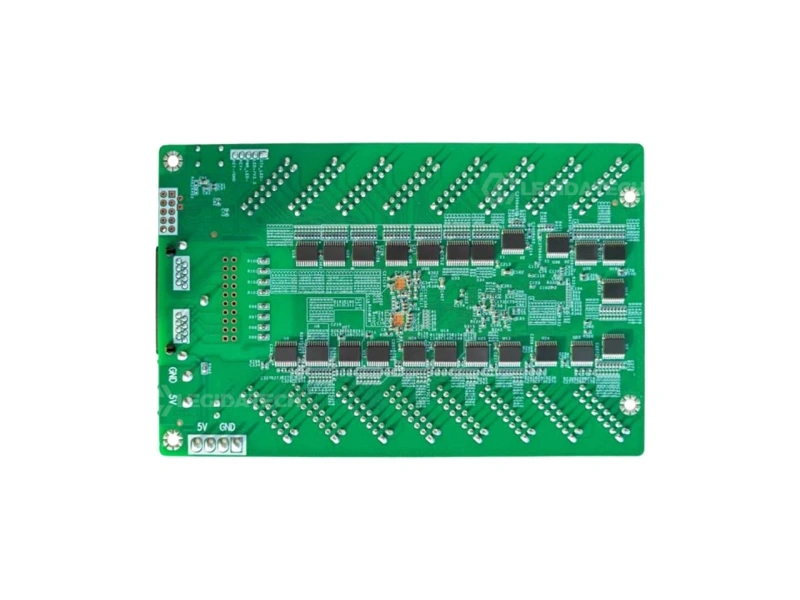

An LED receiving card is the small PCB inside each LED cabinet that receives video data from a sending card and drives the LED modules. The NovaStar MRV412-N LED receiving card is a cost-effective general receiving card supporting up to 512×512 pixels @ 60Hz (PWM driver IC) with 8-bit video sources. Equipped with 12 HUB75E connectors and 24 groups of parallel RGB data, it delivers reliable LED display control at the most accessible price point in the NovaStar MRV family.

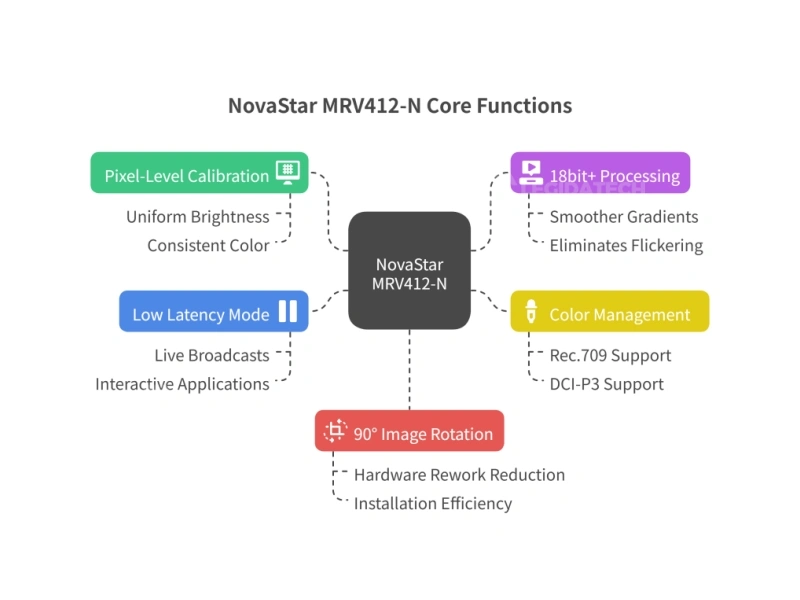

The MRV412-N includes Color Management (Rec.709/DCI-P3/Rec.2020), 18bit+ grayscale enhancement (4× improvement), pixel-level calibration, 3D output, and low latency — features typically found in higher-tier cards. For B2B projects where budget matters but quality cannot be compromised, the MRV412-N is the optimal entry point into NovaStar’s professional ecosystem.
Key Features of the MRV412-N
The most affordable card in the MRV family — with professional features usually reserved for higher tiers.
◆ Color Management, 18bit+ & Display Enhancement
Supports standard color gamuts (Rec.709, DCI-P3, Rec.2020) plus custom profiles. 18bit+ improves grayscale by 4× to prevent loss at low brightness. Pixel-level brightness and chroma calibration eliminates LED variance across the display. Multi-batch adjustment corrects inconsistencies from different production batches — essential for multi-phase large-scale B2B deployments.
◆ Loop Backup, 3D & Low Latency
Loop backup ensures uninterrupted display even with cable faults — data routes the long way around the ring. 3D output supports active 3D when paired with a compatible controller. Low latency (1 frame) reduces video delay for live events. Dual program backup prevents firmware bricking. Dual configuration parameter backup restores settings instantly from the factory area.
◆ Smart Diagnostics & Maintainability
Mapping 1.1: cabinets display controller number, receiving card number, and Ethernet port for instant topology visualization. Temperature & voltage monitoring built-in. Bit error detection monitors Ethernet quality. Cabinet LCD integration shows live metrics. 90° image rotation, individual RGB gamma adjustment, and customizable startup image complete the feature set — impressive for a cost-effective card.
18bit+ Grayscale: 4× Better for Budget Displays
The MRV412-N proves that cost-effective doesn’t mean compromised image quality.
Color Management
Supports standard gamuts (Rec.709, DCI-P3, Rec.2020) and custom color gamuts. Critical for brand-color accuracy in retail and corporate displays.
- Real-time gamut switching
- Standard + custom profiles
- Brand-color accurate
18bit+ Enhancement
Improves grayscale by 4 times — eliminating banding in dark gradients at normal brightness levels. Sufficient for 80% of commercial LED applications.
- No gradient banding
- Smooth dark scenes
- Works with common ICs
Multi-Batch Calibration
Adjusts brightness across cabinets from different production batches — the MRV412-N’s hidden advantage for large deployments built over multiple procurement cycles.
- Batch-to-batch uniformity
- Essential for multi-phase
- Reduces recalibration time
MRV412-N Technical Specifications

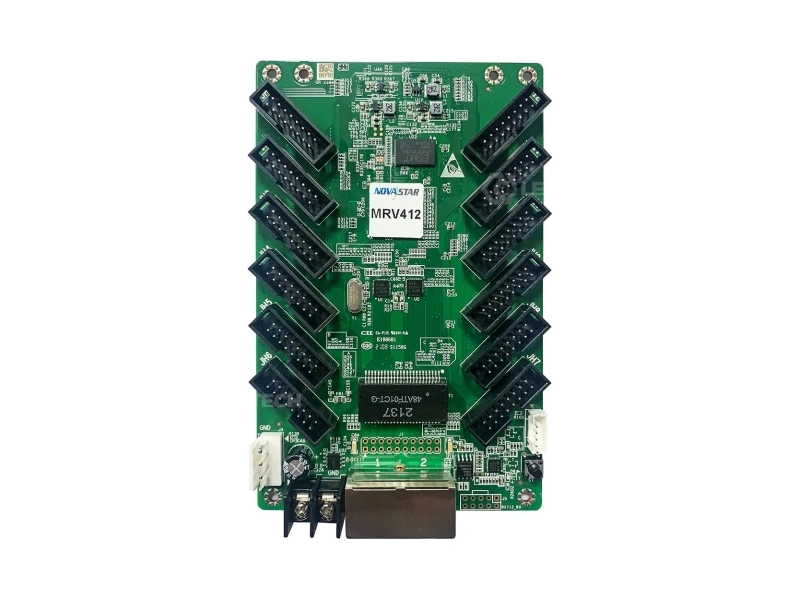

MRV412-N vs MRV416-N vs MRV412 — Which MRV Card?
Same family, different port counts. Choose based on cabinet configuration and budget. For a compact 70×45mm alternative with mobile seam correction, see the NovaStar A5s Plus — ideal when cabinet space is tight.
| Feature | ★ MRV412-N | MRV416-N | MRV412 |
|---|---|---|---|
| Max Resolution (PWM) | 512×512 | 512×512 | 512×512 |
| HUB75E Connectors | 12 | 16 | 12 |
| RGB Data Groups | 24 | 32 | 24 |
| Grayscale | 18bit+ (4×) | 18bit+ (4×) | 18bit+ (4×) |
| Color Management | ✔ | ✔ | ✔ |
| 3D / Low Latency | ✔ | ✔ | ✔ |
| Loop Backup | ✔ | ✔ | ✔ |
| Weight | 96g | 104.6g | 96g |
| EMC Class | Class A | Class A | Class A |
| Best For | Budget-conscious fixed installs | High-port-count fixed/rental | Legacy projects |
Where the MRV412-N Excels
Fixed Installation
12 HUB75E ports drive up to 12 modules per card — optimal for budget fixed displays. Loop backup ensures 24/7 reliability for DOOH and retail.
Rental & Staging
Lightweight 96g design reduces cabinet weight. Low latency and 3D support for live events. Quick-upload calibration speeds setup.
Broadcast & XR
Color Management with standard gamuts and individual RGB gamma makes it studio-capable. EMC Class A for commercial environments.
Conference & Events
90° image rotation + 3D support for creative setups. Cost-effective for multi-screen conference deployments.
How to Install & Configure the MRV412-N
Hardware Installation (5 Steps)
- Power off completely. Never hot-plug — high-density connectors are sensitive.

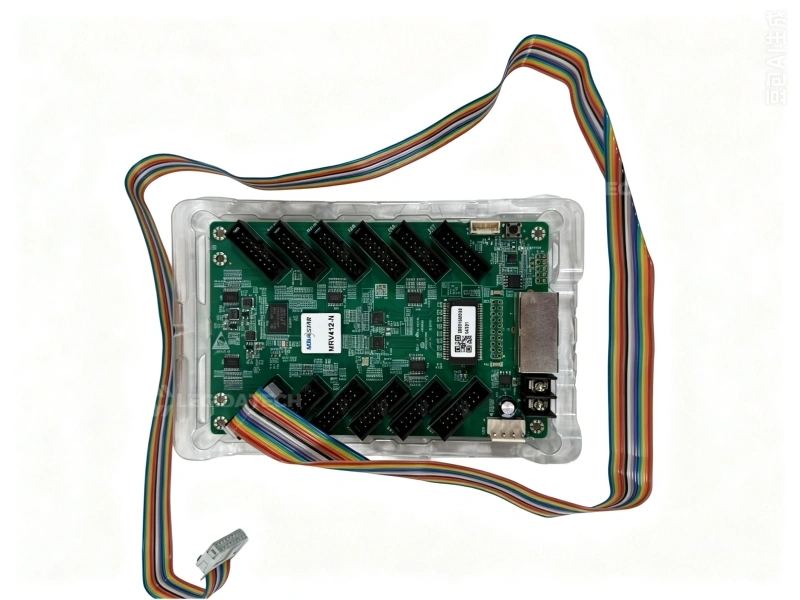

- Mount on hub board. 12 HUB75E ports — align and press firmly. Secure with mounting screws.
- Connect power. DC 3.8–5.5V. Use only one power connector.

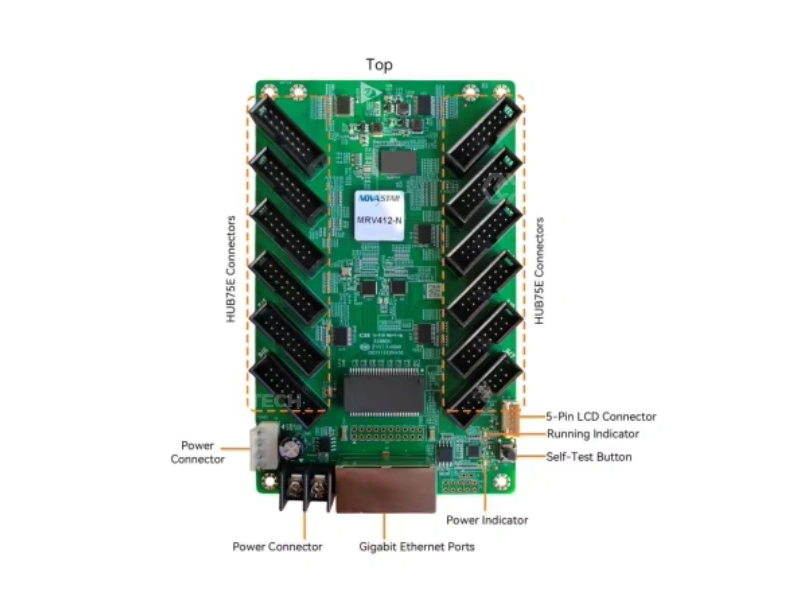

- Connect Ethernet. Each gigabit port is input/output. For loop backup, connect both ports in ring topology.
- Verify indicators. Green 1/sec = normal. Green 3/sec = Ethernet issue. Red always on = power OK.
Software Configuration (NovaLCT V5.3.1+)
- Launch NovaLCT — auto-detects all connected MRV412-N cards.
- Load RCFG for your module type. Screen Configuration → Receiving Card → Load Config → Save to Hardware.
- Calibrate using NovaStar’s calibration system for pixel-level brightness/chroma uniformity.
- Enable features: 18bit+, Color Management, Multi-batch adjustment per project requirements.
Why Source Your MRV412-N from LEGIDATECH?
As a professional LED screen manufacturer, we integrate, test, and support every component.
Factory-Direct
Authorized NovaStar distributor. Every card tested before shipping — no counterfeit risk.
Pre-Shipment Testing
72-hour burn-in in real LED cabinets. Signal integrity and firmware verified.
Global Export
60+ countries. FOB/CIF/DDP. 100 cards/box standard packing.
Engineering Support
Pre-sales configuration + post-sales troubleshooting in English. RCFG support included.
Frequently Asked Questions
Get a Quote for MRV412-N LED Receiving Cards
Tell us your cabinet specs, pixel pitch, quantity, and application. Engineering reply within 12 business hours with BOM, configuration, and B2B pricing.
✉ legidatechled@gmail.com | 📞 +86 185 6949 2693
You May Also Need
NovaStar MRV412-N: The Cost-Effective Workhorse for B2B LED Projects
Published: August 2026 | Reading Time: 8 minutes | Author: LEGIDATECH Engineering Team
1. The MRV412-N: Entry Point to Professional LED Control
The NovaStar MRV412-N is the most affordable card in NovaStar’s current MRV lineup. With 12 HUB75E connectors and 24 groups of parallel RGB data, it delivers professional-grade LED display control at a price point accessible to volume B2B deployments. It shares the same core processing engine as its bigger siblings — Color Management, 18bit+ grayscale, pixel-level calibration, 3D, low latency — but with fewer ports, making it ideal for installations where budget optimization is paramount.
2. 12 Ports vs 16 Ports: The Real-World Math
The MRV412-N’s 12 HUB75E ports (24 RGB groups) vs the MRV416-N’s 16 ports (32 groups) is the key differentiator. For a standard cabinet using 12 modules, both cards perform identically — the MRV412-N costs less per unit. For cabinets with 13-16 modules, the MRV416-N eliminates the need for a second card. The B2B math is simple: if your cabinet design uses ≤12 modules, the MRV412-N is the most cost-effective choice. If you need 13-16 modules per card, step up to the MRV416-N.
3. MRV412-N vs A8s vs A5s Plus: Choosing Across NovaStar’s Entry-to-Mid Range
B2B buyers often compare three cards at this tier: MRV412-N (12 ports, cost-leader), A5s Plus (compact 70×45mm, 32-group RGB, mobile seam correction), and A8s (22bit+, HDR10/HLG, EMC Class B). The decision matrix is straightforward:
Choose MRV412-N when: Budget is the primary constraint AND cabinets use ≤12 modules. You still get 18bit+, Color Management, 3D, low latency, and full redundancy — just with fewer ports and EMC Class A (sufficient for commercial/industrial environments).

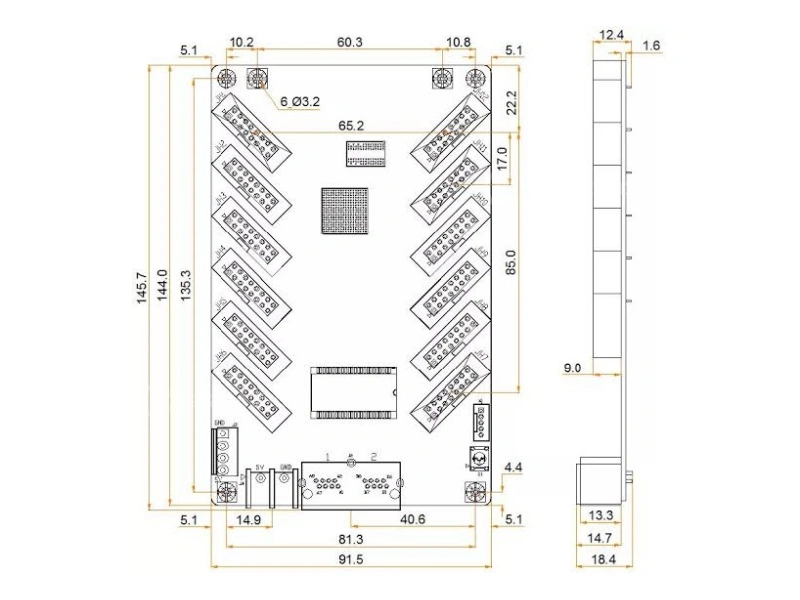

Choose A5s Plus when: Cabinet space is limited (the A5s Plus is 70×45mm vs 145.6×91.5mm for MRV series) OR you need mobile seam correction for rental applications. The A5s Plus also offers EMC Class B compliance — important for installations near residential areas.
Choose A8s when: The project requires HDR10/HLG, 22bit+ grayscale (64× improvement), or broadcast-grade EMC Class B. The A8s is the upgrade path for projects where image quality is the primary specifier.
For most budget-sensitive B2B fixed installations, the MRV412-N hits the optimal balance: professional features at the lowest entry price in the NovaStar lineup. As requirements escalate (more ports, smaller form factor, or higher image quality), the upgrade path is clear: MRV412-N → A5s Plus/MRV416-N → A8s → A10s Pro.
3. MRV412-N vs A8s: When Cost-Effective Meets High-End
The NovaStar A8s offers 22bit+ (64× grayscale), HDR10/HLG, and EMC Class B — features the MRV412-N doesn’t have. But for 80% of commercial LED applications, 18bit+ grayscale is entirely sufficient. The MRV412-N gives you professional Color Management, pixel calibration, 3D, low latency, and full redundancy at roughly one-third the cost. Reserve the A8s for broadcast, HDR, and camera-critical applications.
3.5. MRV412-N Total Cost of Ownership: Why the Cheapest Card Wins at Scale
The MRV412-N is NovaStar’s most affordable receiving card — and for many B2B deployments, that unit-price advantage compounds into significant project-level savings. Let’s quantify the TCO difference between the MRV412-N and higher-tier cards for a typical 200-cabinet LED display project.
Card count savings: In a 200-module installation where each cabinet uses 12 modules, the MRV412-N (12 ports) requires exactly one card per cabinet — 200 cards total. The MRV416-N (16 ports) would also use one card per cabinet — same card count, but each card costs more. The per-unit price difference multiplied by 200 creates a meaningful BOM saving.
Recalibration labor: The MRV412-N shares the same pixel-level calibration engine as higher-tier MRV cards — calibration stability over 5+ years is equivalent. Unlike budget non-NovaStar cards that drift and require annual recalibration ($12,000-$36,000 over 5 years for a 200-cabinet display), the MRV412-N holds calibration with minimal maintenance.
Downtime prevention: Loop backup and dual program/config backup are standard — features that entry-level cards from other brands omit at this price point. A single dark-screen event at a retail DOOH location costs $500-$5,000/day in lost advertising revenue. The MRV412-N’s included redundancy features eliminate this risk at no additional hardware cost.
Bottom line: For budget-conscious B2B projects that still demand NovaStar reliability, the MRV412-N delivers the lowest total cost of ownership in the NovaStar ecosystem — not because it’s the cheapest card to buy, but because it includes professional-grade redundancy and calibration at an entry-level price.
4. Conclusion
The NovaStar MRV412-N LED receiving card is the smart entry point for B2B buyers entering the NovaStar ecosystem. With 512×512 resolution, 12 HUB75E ports, 18bit+ grayscale, and full professional features at the most accessible price in the MRV family, it delivers exceptional value. Sourced through LEGIDATECH with pre-shipment testing and engineering support, it’s the budget-friendly card that doesn’t compromise on quality.
