Large LED Screen Installation Guide: From Vision to Victory

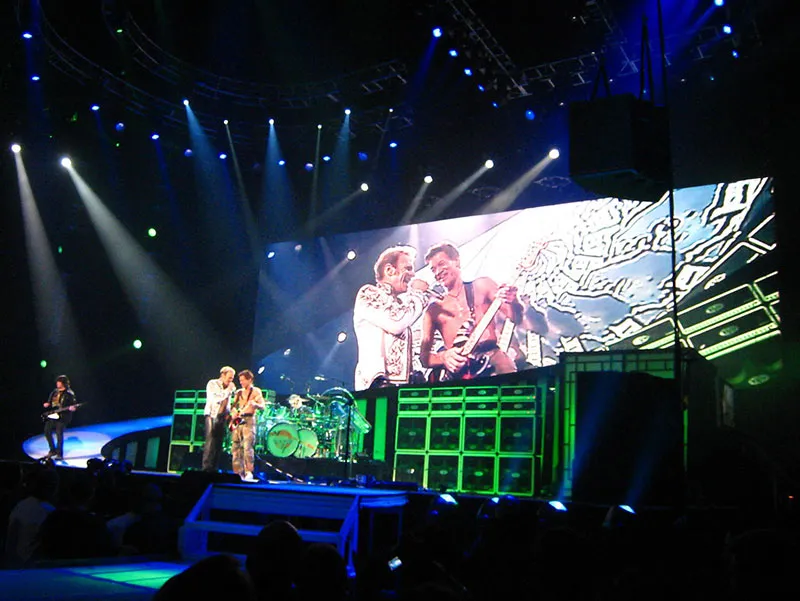

Welcome to the ultimate Large LED Screen Installation Guide! Whether you’re dreaming of a dazzling video wall for a concert, a corporate event, or a broadcast studio, this guide will walk you through every step to make it a reality.

From picking the right gear to ensuring flawless operation, we’ll cover what you need to know in a way that feels like a conversation with a friend who’s done this a hundred times. Let’s dive in and turn your vision into a vibrant, reliable display.

Why This Guide Matters

Installing a large LED screen isn’t just about bolting panels to a wall. It’s about creating an experience that captivates your audience while running smoothly behind the scenes.

This Large LED Screen Installation Guide breaks down the process into clear, actionable steps—perfect for project managers, AV techs, or anyone tasked with bringing a big screen to life. We’ll help you avoid common pitfalls, nail the technical details, and keep things human and approachable. Ready? Let’s go!

Step 1: Define Your Project’s Heartbeat

Before you touch a single cable, get clear on what your LED wall needs to do. Ask yourself:

• What’s the purpose? Is it a concert backdrop, a retail display, or a TV studio wall?
• How close will viewers be? Measure the nearest viewing distance in meters—this drives pixel pitch.
• How long will it run daily? Estimate hours to plan for durability and cooling.
• Will it be filmed? Camera-critical setups need extra finesse for refresh rates and color fidelity.

These answers shape your pixel pitch, brightness, and redundancy needs. Write them down and bake them into your contract’s acceptance criteria. For example, if uptime is critical, specify 99% availability.

Also, request key deliverables like mounting drawings, electrical schedules, and a spare parts list upfront. This keeps everyone aligned from day one.

Step 2: Pixel Pitch and Resolution Made Simple

Choosing the right pixel pitch is like picking the perfect pair of glasses—everything needs to look sharp from where your audience stands. Here’s a quick rule: divide the nearest viewing distance (in meters) by 0.0015 to 0.003 to estimate pixel pitch.

For example, a 2-meter viewing distance suggests a pitch between P0.67 and P1.33. For camera-critical setups, go finer—P1.9 or P2.5—to avoid moiré or pixelation on screen.

Once you’ve got the pitch, lock in the wall’s native resolution (pixel columns and rows) before creating content. This ensures videos and images render crisply without scaling issues.

Add a line in your technical brief like: “Native resolution: 1920×1080 pixels, 16:9 aspect ratio.” Done right, this step saves headaches later.

Step 3: Prep the Site Like a Pro

Your LED wall needs a solid foundation. Start with a structural report signed by an engineer, confirming load limits and rigging points. Check the path to get equipment in—measure doorways, elevators, and ceilings. Decide if you’ll need front or rear service access and ensure there’s enough clearance for maintenance.

Before any cabinets go up, install cable trays, conduits, and power raceways. If structural tweaks are needed (like reinforcing a wall), do them first to keep the project on track. Think of this as setting the stage before the star (your LED wall) takes center stage.

Step 4: Power It Up, Keep It Grounded

Power is the lifeblood of your LED wall. Calculate peak and continuous power needs—your vendor’s spec sheet will help—and document both in an electrical schedule.

Use breakers close to the wall to minimize voltage drops, add surge protectors, and bond all metal parts to a solid grounding system. For critical setups, consider a UPS or generator for backup and clearly define failover behavior in your plan.

Label all breakers and leave spare capacity for future tweaks. A little planning here ensures your wall stays lit, no matter what.

Step 5: Mount It Right, Keep It Tight

Mounting is where precision meets patience. Follow the vendor’s drawings and torque specs to the letter. Start with a perfectly level first row or column, then build outward.

Use laser levels or optical tools to check flatness, aiming for seam tolerances under a millimeter. Lock every cabinet in place and check them daily during installation.

Choose front service for tight spaces or rear service if you’ve got room to spare. Finish with a signed alignment report, complete with photos, to prove everything’s picture-perfect.

Step 6: Data Flow and Timing Tricks

Your LED wall’s brain is its data system. Pick sending and receiving hardware that matches your pixel count. Use managed switches with Quality of Service (QoS) and opt for fiber cables for long runs.

For critical setups, add redundant network paths and power feeds. If the wall’s being filmed, enable Genlock or frame sync to keep cameras happy.

During setup, log latency and packet loss. Save these logs with your commissioning report to show the system’s rock-solid.

Step 7: Content That Pops

Great content makes your LED wall shine. Render all assets at the wall’s native resolution to avoid blurry scaling. Use high-bitrate intra-frame codecs for smooth motion and create templates for standard aspect ratios.

If the wall’s being filmed, match media frame rates to your cameras and test on set. Keep a media manifest with details like file source, resolution, codec, and creation date to stay organized.

Step 8: Color and Stress Tests for Longevity

Once the wall’s up, calibrate colors using a spectrometer to set grayscale and white-point baselines. Save these as LUT (Look-Up Table) files.

Run a 72-hour stress test, logging temperatures and current draw to ensure the system stays stable.Check that brightness and heat stay within spec—any drift could signal trouble down the road.

Step 9: Commissioning Done Right

Before you call it done, verify everything: mechanical flatness, pixel health, grounding, power stability, network reliability, and brightness uniformity.

Demand photographic proof, LUT files, and log data.If cameras are involved, test on-camera performance. Don’t sign off until the 72-hour soak test passes without a hitch.

Step 10: Spares and Support for the Long Haul

Stock up on spares: 5–10% of your LED modules, at least two power supplies, and one receiving card per 500 modules. Keep a labeled spare parts list and set up remote monitoring for temperature, current, and pixel faults. Create an escalation matrix with contact names and response times so issues get fixed fast.

Step 11: Troubleshoot Like a Detective

When things go wrong, stay calm. Partial blackout? Check fuses and swap power supplies. Color bands or stripes? Test receiving cards or data links. Flicker or rolling bars?

Verify frame rates and network stability, then update firmware if needed. For overheating, dim the wall and check fans and airflow. Quick fixes keep the show running.

Step 12: Buy or Rent? Make the Call

Buy if the wall’s a permanent fixture—long-term ownership often saves money. Rent for short-term or ever-changing projects, but insist on a spare parts kit and on-site tech support in the contract.

Define Mean Time to Repair (MTTR) and Service Level Agreement (SLA) penalties to keep vendors accountable.

Step 13: Track and Improve

Monitor key metrics: system availability (aim for 99%+), repair times, energy use per square meter, and playback errors. Use these to adjust spare parts stock and maintenance schedules. Trending data also strengthens your hand when negotiating future vendor deals.

Step 14: Picking the Right Gear

For indoor HD walls, go for narrow pitches like P1.9 or P2.5. For outdoor displays, choose P3.9 or larger with IP65-rated cabinets for weather resistance.

If filming, prioritize high refresh rates and pro-grade receiving cards. Always ask vendors for module specs, mounting drawings, and a spare parts list at the quote stage.

Step 15: Handover and Training

Wrap up with a commissioning report including photos, LUTs, logs, and a spare parts manifest. Train operators on safe module swaps, emergency dimming, and who to call when trouble strikes. Store all docs in a shared folder for easy access.

Wrapping Up: Your Path to a Stunning LED Wall

This Large LED Screen Installation Guide treats your video wall as a system of structure, power, data, and content. To make it bulletproof, put clear acceptance criteria in your contract, use manufacturer-approved hardware, and demand a 72-hour soak test.

Pro Tip: Check LEGIDA LED Screen Factory catalogs for model specs. For studio backdrops, P1.9 or P2.5 are gold. For outdoor ads, go P3.9 or P4.8 with IP-rated cabinets. Request module specs and mounting drawings early to stay ahead.

Ready to make your LED wall a showstopper? Let’s do this!

FAQs: Your Burning Questions Answered

Q: What’s needed for outdoor LED walls?
Use IP65+ enclosures, weatherproof cable glands, UV-stable paint, and drainage. Check temperature and humidity specs match the cabinets, and inspect for corrosion regularly.

Q: How do I size a UPS or generator?
Add up peak power for the wall and ancillary systems, then add 25% headroom. Size UPS for 15–30 minutes of runtime and generators for sustained peak with redundancy if needed.

Q: What spares should I keep?
Stock 5–10% of modules, 2+ power supplies, 1–2 receiving cards, cables, fuses, and a tool kit for swaps.

Q: How do I fix seams or color shifts?
Follow mounting tolerances, calibrate per cabinet, update firmware, and do a final camera check for broadcast setups.

Q: What metrics should I monitor?
Track temperature, voltage, current, pixel failures, packet loss, and uptime. Set alerts for instant notifications.

Q: How often should I maintain the wall?
Quarterly for public displays, monthly for 24/7 critical walls, and annually for full calibration and firmware checks.

Q: Can I change the aspect ratio later?
Yes, with a media server that supports tiling. Render critical assets at native resolution and use pillar/letterbox layouts to keep content clean.

Q: How do I test on-camera performance?
Film test patterns under final lighting with production cameras. Check for moiré, color shifts, and rolling bars, tweaking refresh rates or LUTs as needed.

---
