Looking for LED display solutions that balance pixel pitch, brightness, and total cost of ownership? LEGIDATECH engineers indoor, outdoor, and rental LED screens for smart cities, churches, retail, stadiums, and live events — all factory-direct from Shenzhen, with certified production and a 72-hour burn-in test on every panel.
LED Screen Solutions by Market
Eleven application-specific LED display solutions — each with a recommended pixel pitch, brightness, and LEGIDATECH product series. Tap any market to see the full engineering guide.
Smart City
P4–P8 outdoor · 6,000+ nits · IP65

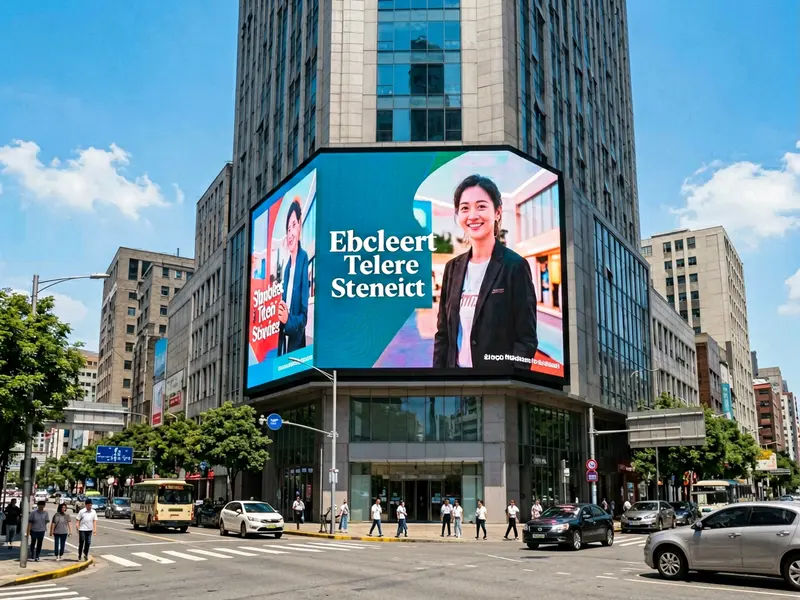

Outdoor Advertising
P4–P10 billboard · cold-screen −60% power

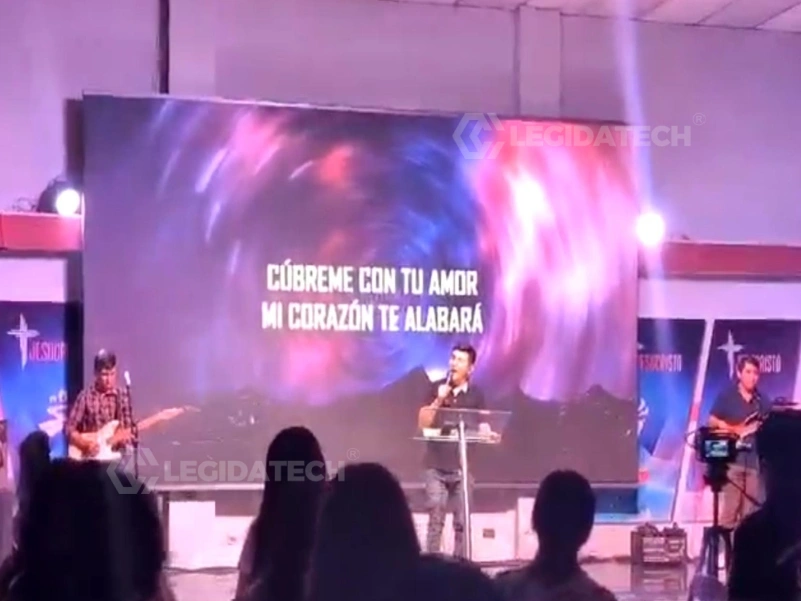

Church
P2.5–P3.9 · Ehonor series

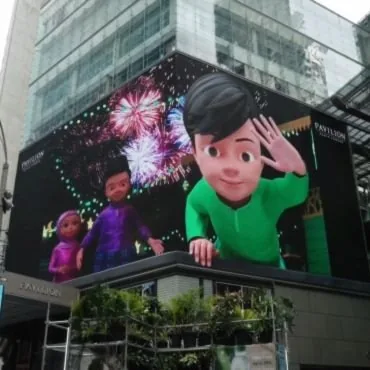

Naked-Eye 3D
P3.9–P6 curved corner · 8,000 nits

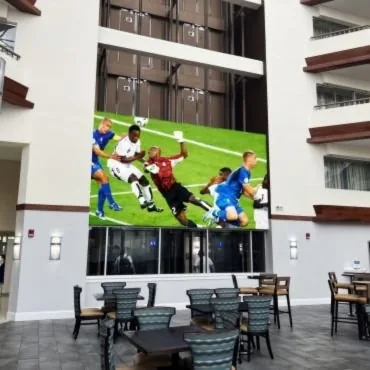

Hotel & Conference
P1.5–P2.5 · EDI / COB series

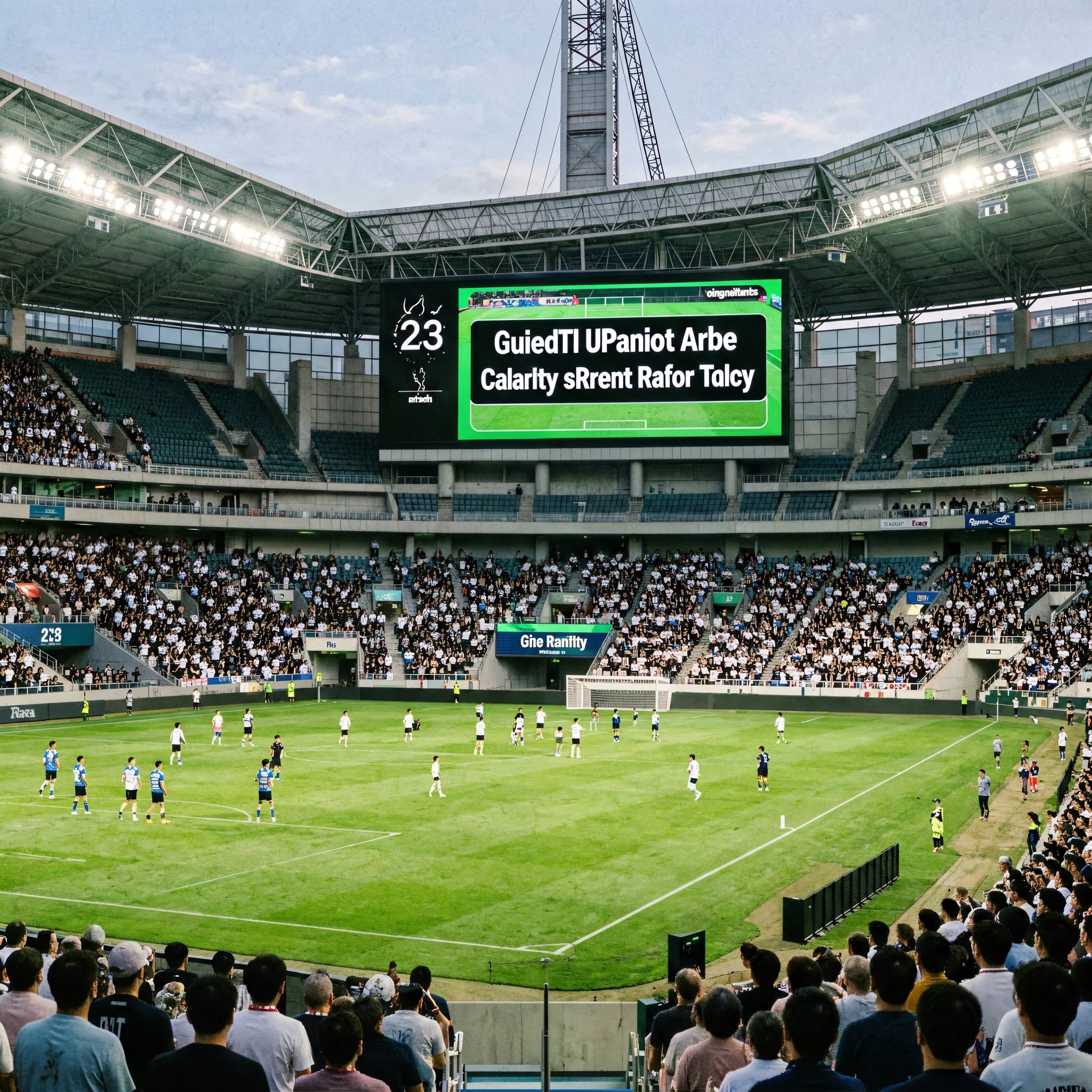

Sports & Stadium
P8–P16 · 7,500+ nits · IP65
XR / Virtual Production
P1.5–P2.6 · EXR series · 7,680Hz

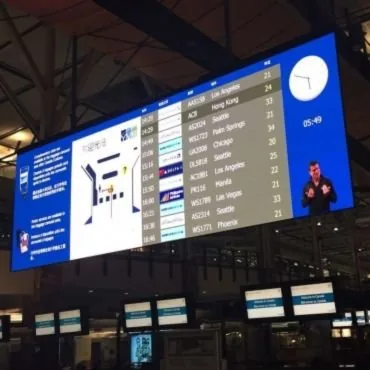

Airport
P2.5–P4 · 24/7 operation rated

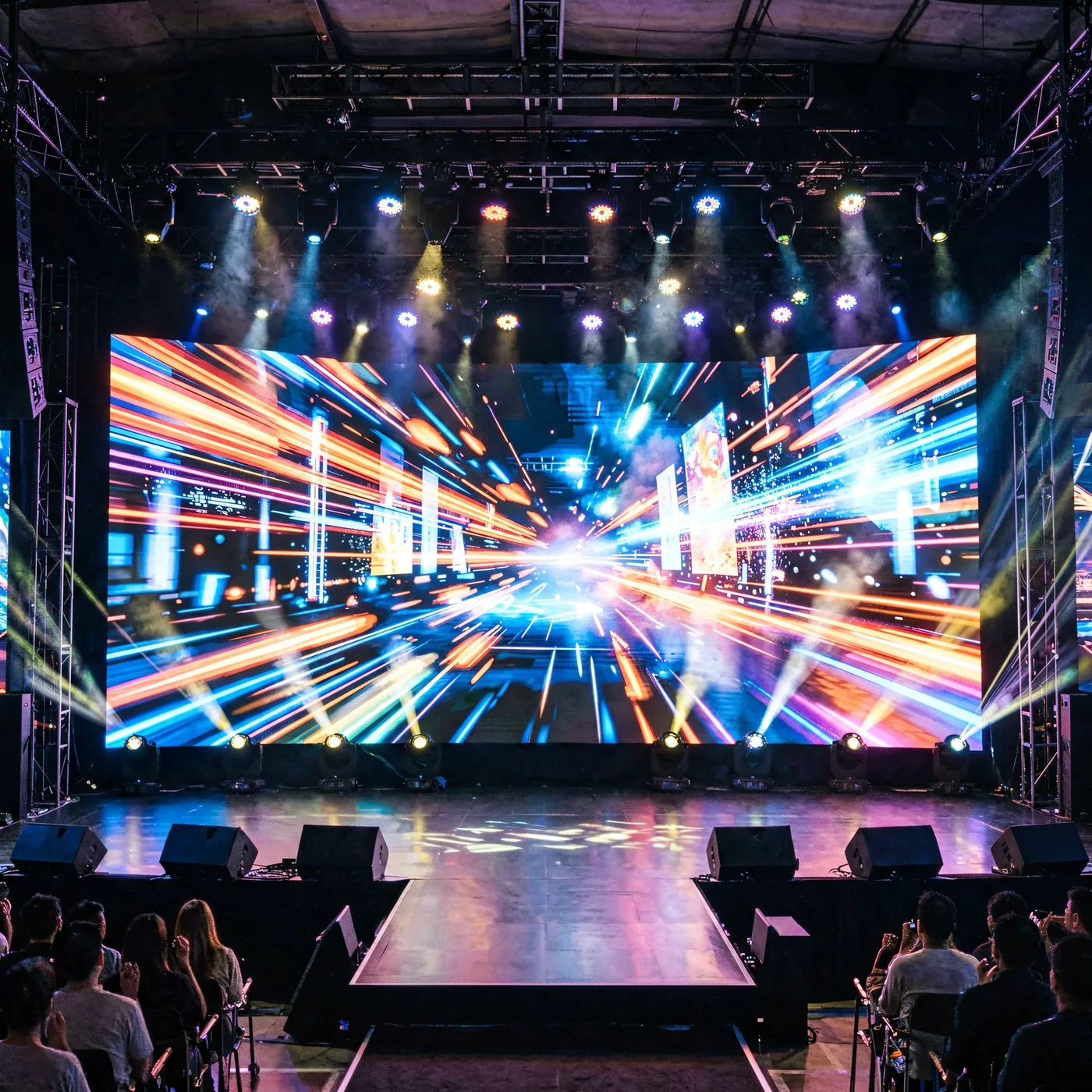

Stage & Concert
P2.6–P3.9 rental · Metastar series
Shopping Center
P2.5–P4 · poster & curtain formats

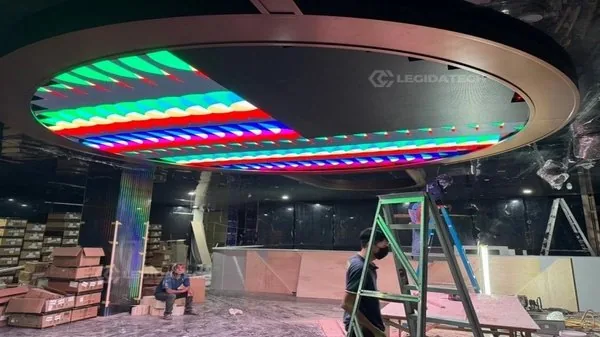

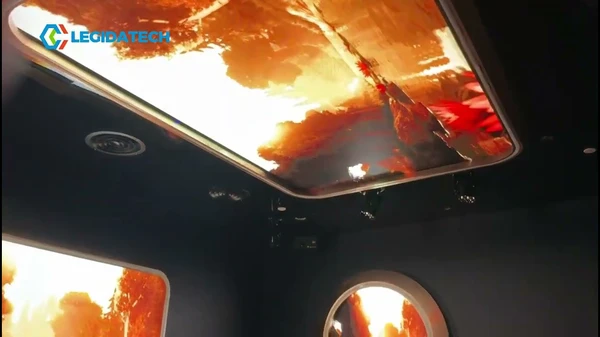

Club & Bar
P2.5–P3.9 · creative shapes

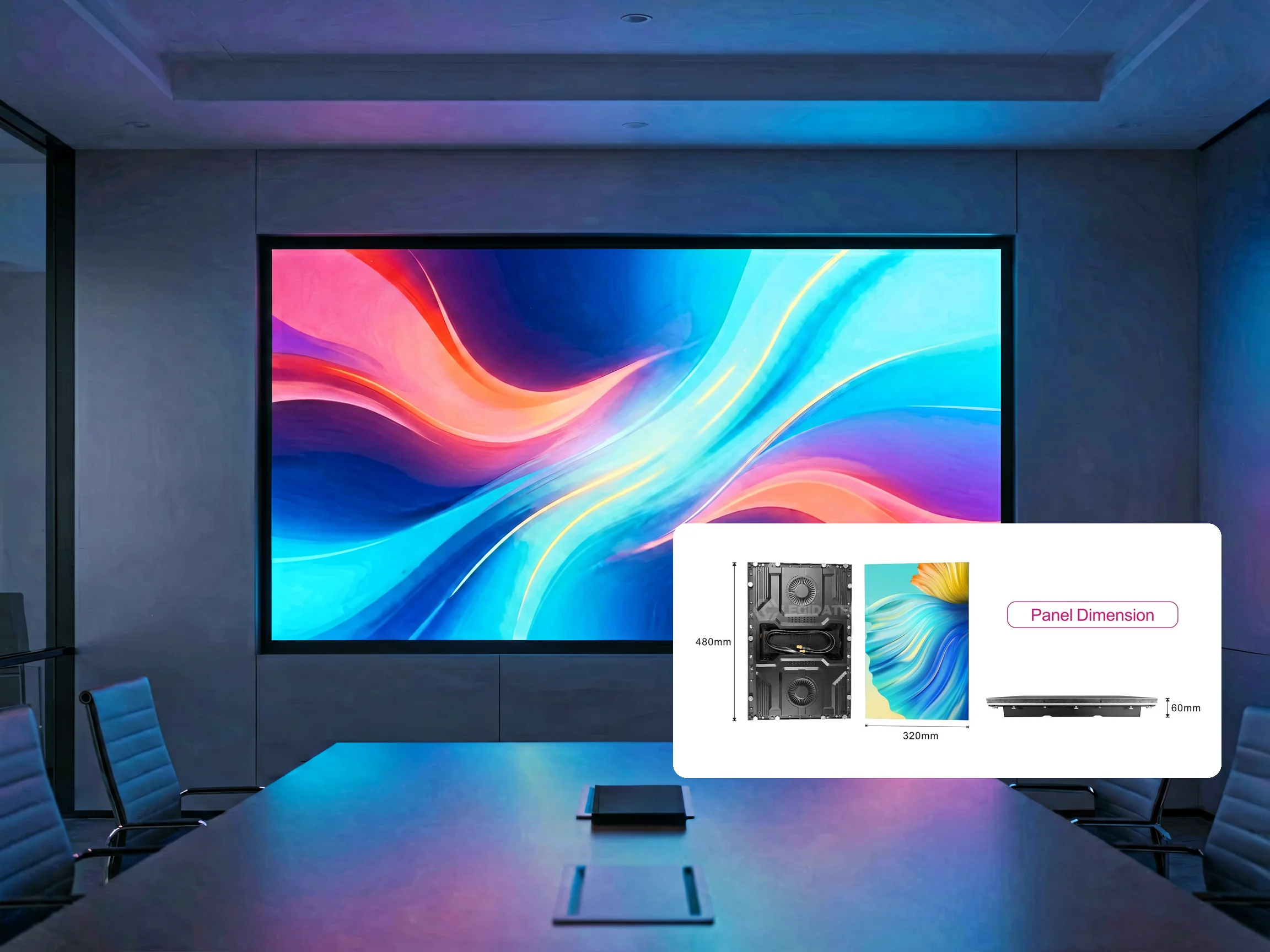

Indoor LED Display Solutions: From 60mm Slim Walls to COB Fine Pitch
For control rooms, retail, houses of worship, and conference halls, LEGIDATECH indoor LED screen solutions start at P1.2 fine pitch and scale to any wall size. These commercial LED display solutions use the Ehonor series — a 480×320mm panel weighing just 2.7 kg with magnetic front service — so one technician installs a 10m² wall in a single day, with no rear access space required.
Choose SMD for general commercial use, COB for fanless, pixel-perfect fine pitch, or GOB for dust and impact resistance. Rated for 100,000 hours of lamp life with a 72-hour factory burn-in before shipping, these screens are engineered to cut both installation cost and long-term maintenance.

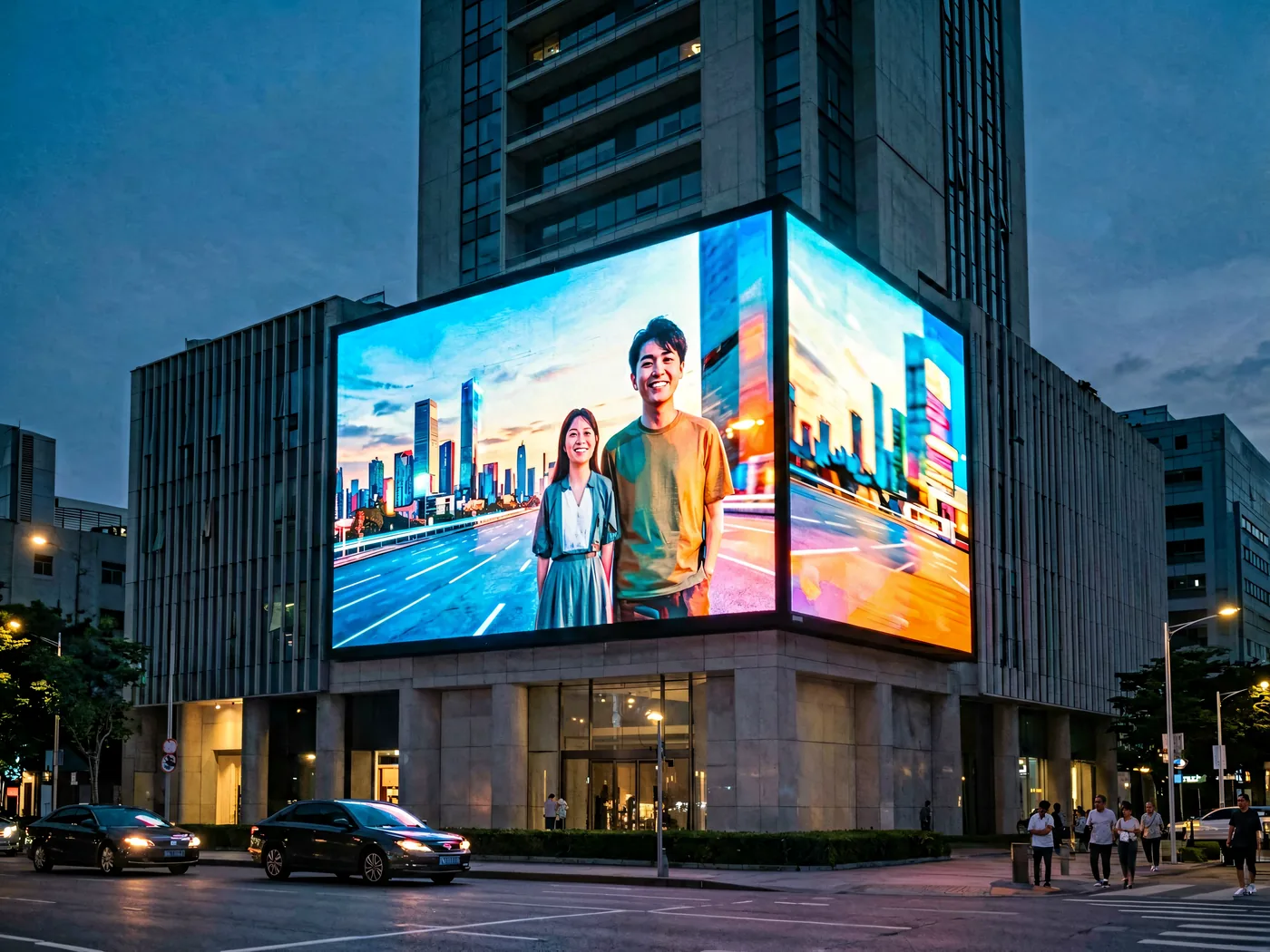

Get Indoor LED QuoteExplore Indoor LED Screens →Outdoor LED Display Solutions Built for Weather — and Built for ROI
Outdoor LED screen systems from LEGIDATECH deliver 6,000–10,000 nits of sun-readable brightness with IP65/IP68 protection for billboards, storefronts, and public screens. The A960 cold-screen series uses common-cathode driving to cut power consumption by up to 60% — on a 100m² billboard that is roughly $3,000–$6,000 saved per year in electricity alone.
Aluminum cabinets replace plastic for fire resistance and structural life, and every screen ships with a power-distribution plan and steel-structure drawings, so your local installers never guess.
Get Outdoor LED QuoteExplore Outdoor LED Displays →

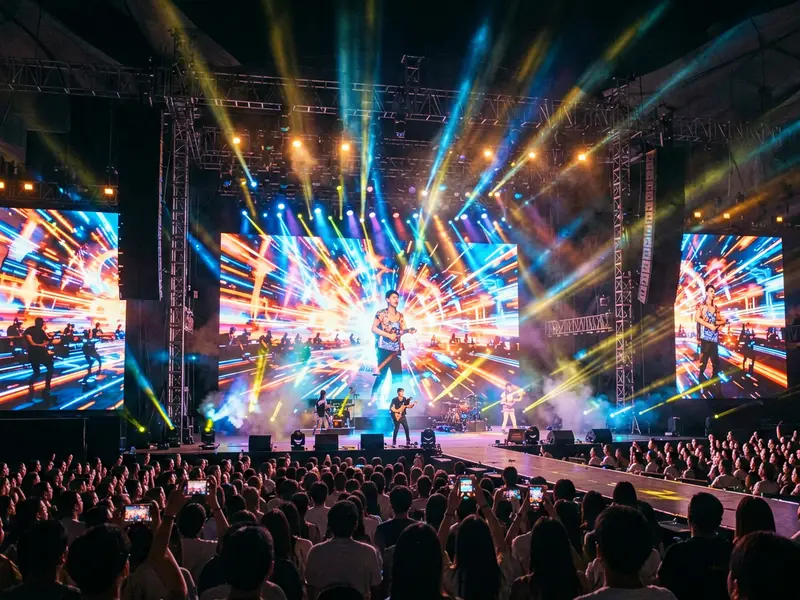

Rental LED Display Solutions: Set Up in Minutes, Not Hours
AV rental companies run on turnaround time. LEGIDATECH rental LED screen systems use 500×500mm and 500×1000mm die-cast aluminum panels with 0.5-second quick locks, ±15° curvature for curved or flat stages, and flight cases engineered for truck freight. A 200m² concert screen was truss-mounted for a U.S. tour with a 4-person crew.
Anti-collision edge protectors and hot-swappable modules keep shows running — if a module is hit, a replacement clips in within 60 seconds without tools. Every rental kit ships with spare modules, processors, and backup receiving cards.

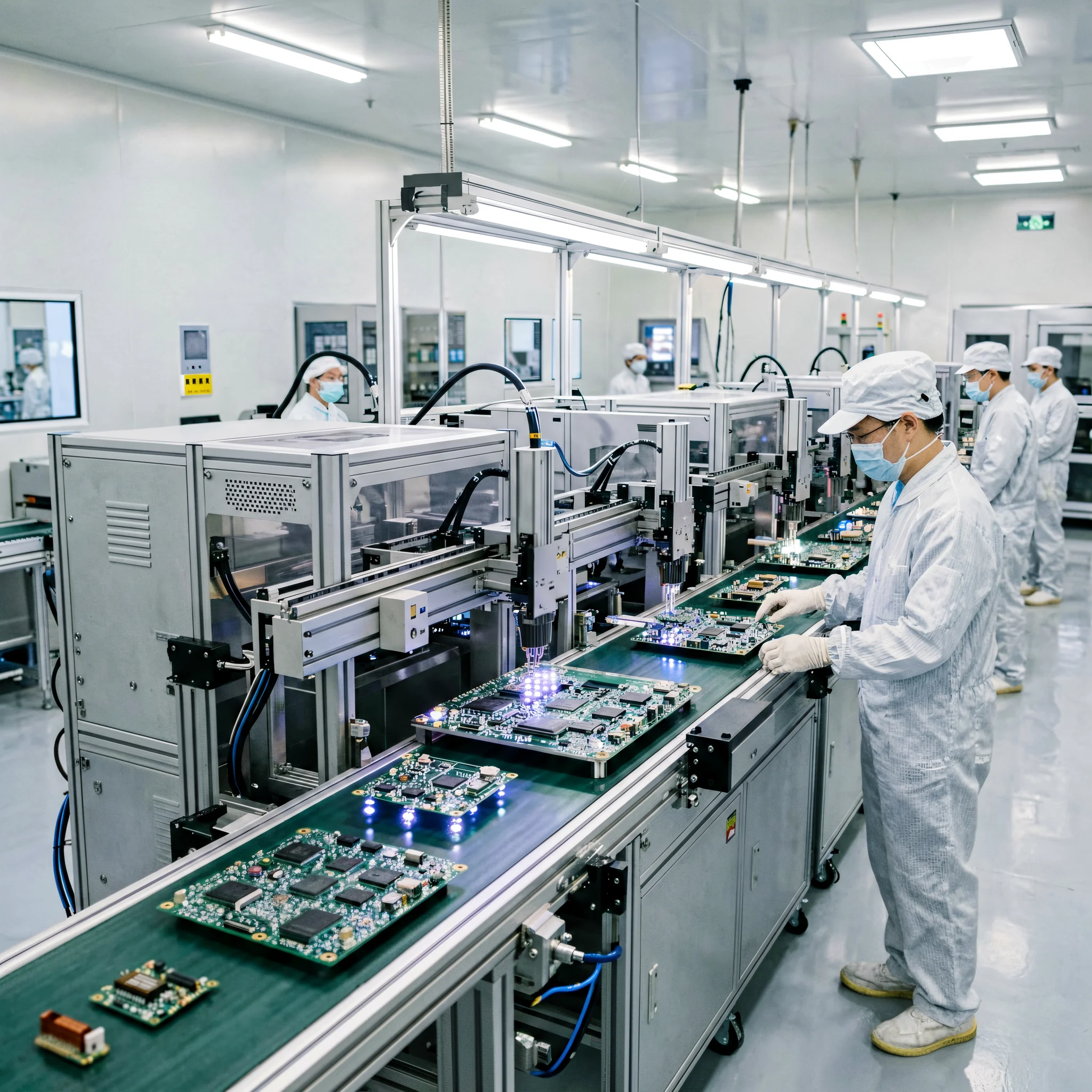

Factory-Direct LED Screen Manufacturer — Watch Our Quality Control
As a factory-direct LED screen manufacturer — and a full-service LED display manufacturer — with 13 years of production and exports to 108+ countries, LEGIDATECH controls the full chain in its Shenzhen factory: SMT pick-and-place, glue dispensing, module assembly, and a mandatory 72-hour burn-in aging test on every panel before packing.
Products are RoHS, FCC, and CCC certified, and we keep spot warehouses in Malaysia, South Africa, the USA, and Nigeria for fast replacement parts. Step inside our factory — automated production line and finished displays in the videos:
How to Choose LED Display Solutions: Pixel Pitch & Brightness Guide
Pixel pitch is the distance between LED lamp centers — smaller pitch means higher resolution at the same viewing distance. Match the application to the table below and you will rarely overpay for resolution (or under-buy brightness).
| Application | Recommended Pixel Pitch | Brightness | LEGIDATECH Series |
|---|---|---|---|
| Control room / broadcast | P0.9 – P1.5 (COB) | 800–1,000 nits | COB fine pitch |
| Conference / hotel | P1.5 – P2.5 | 600–1,000 nits | EDI / Ehonor |
| Church / worship | P2.5 – P3.9 | 800–1,200 nits | Ehonor series |
| Retail / shopping mall | P2.5 – P4 | 1,500–3,000 nits | Poster / Ehonor |
| Outdoor billboard | P4 – P10 | 6,000–10,000 nits | OF960 / A960 cold screen |
| Stadium / sports | P8 – P16 | 7,500+ nits | Sports LED display |
| Rental stage / events | P2.6 – P3.9 | 1,000–4,500 nits | Metastar / Enova |
| XR virtual production | P1.5 – P2.6 | 1,000–1,500 nits | EXR series |
How to select in 3 steps: ① Measure your closest viewing distance — pixel pitch (mm) ≈ minimum viewing distance (m). ② For outdoor, never buy below 6,000 nits or you lose contrast in daylight. ③ Share your wall size and budget with our engineers; we will recommend the exact LED display system and provide a free structural drawing. See the full LED screen price guide for cost-per-square-meter benchmarks.

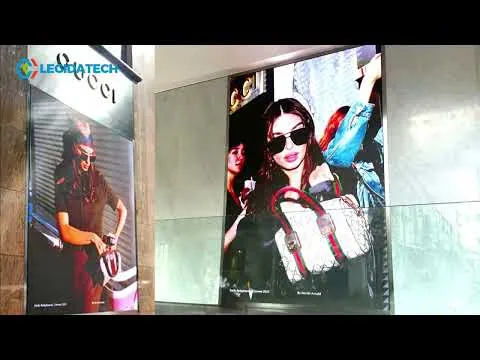

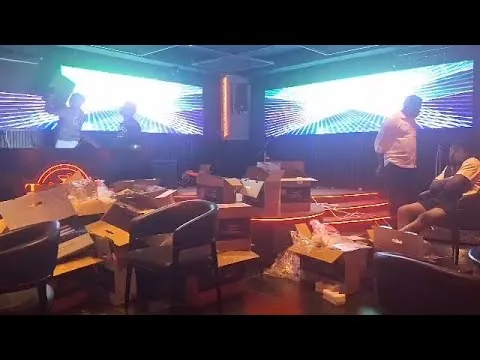

LED Display Solutions in Action: Recent Projects
Real installations shipped from our Shenzhen factory to five continents.
Installation & Maintenance: Designed for One-Person Service
Installation cost is the hidden line item in most LED projects. Our LED screen systems attack it three ways: magnetic front-mount cabinets that eliminate rear access and steel welding, pre-built E-Structure frames, and modules that a single technician swaps in under 60 seconds — no tools, no downtime for the whole wall.
Every shipment includes a step-by-step installation manual, video guidance, and remote engineering support on WhatsApp. Watch the 5-step Ehonor assembly on the left:
View Certifications Ask About Installation SupportLED Display Solutions FAQ
What are LED display solutions?
LED display solutions are complete, application-specific screen systems: the LED panels, cabinets, control system, power distribution, mounting structure, and support — engineered for one market, such as outdoor advertising, churches, rental staging, or control rooms. LEGIDATECH delivers them factory-direct, so you buy the system, not a box of parts.
How much do LED display solutions cost per square meter?
Indoor P2.5–P4 screens typically range from $700–$1,500/m², outdoor P4–P10 from $900–$1,800/m², and fine-pitch COB below P1.5 starts higher. Factory-direct pricing removes distributor markups of 30–50%. Get an itemized quote from our LED screen price guide page, or send your wall size for an exact number within 24 hours.
What pixel pitch should I choose for my project?
Rule of thumb: pixel pitch in millimeters ≈ minimum comfortable viewing distance in meters. A P2.5 wall looks sharp from 2.5m, a P4 billboard from 4m. For outdoor screens, brightness matters more than pitch — stay at 6,000 nits or above. Our engineers confirm the right pitch for your specific room or building before quoting.
How long do LED display screens last?
LEGIDATECH panels use branded lamp chips rated for 100,000 hours (about 11 years of continuous 24/7 operation) — at typical 12-hour commercial use, that is 20+ years before half-brightness. Every panel passes a 72-hour burn-in test before shipping, and GOB/HOB encapsulated options add impact and moisture resistance for harsh environments.
Do you provide installation support in my country?
Yes. We ship with complete installation manuals, steel-structure drawings, and video tutorials, and our engineers provide remote guidance via WhatsApp and video call during your install. In Malaysia, South Africa, the USA, and Nigeria we keep spot warehouses and trained installation partners for on-site service.
What is the MOQ and production lead time?
Standard orders have no strict MOQ — a single poster screen or a 200m² wall are both welcome. Production typically takes 7–15 days after deposit depending on size and customization; sea freight to most ports takes 2–5 weeks, air freight 5–10 days. Rental-ready stock ships within 3 days.
What certifications do your products hold?
LEGIDATECH products are RoHS, FCC, and CCC certified, with additional documentation available for specific models and markets. Certification files are provided with every export shipment for customs clearance. See the certification page.
Indoor vs outdoor — what are the real differences?
Brightness (outdoor needs 6,000+ nits vs 600–1,200 indoor), weather protection (IP65 vs IP20), and heat management. Outdoor cabinets are aluminum with sealed modules; indoor cabinets prioritize thinness and front service. We cover the full comparison with a video in the guide below.
Can you create custom LED display solutions for my project?
Yes — that is our core business. Custom LED display solutions — see our custom LED display range — include custom sizes, curved and corner cabinets, 3D naked-eye configurations, transparent window displays, floor screens, and logo-shaped displays, all produced in-house. Send your drawing or dimensions; our R&D team returns a layout, structural plan, and quotation.
What warranty do you offer?
We provide 2–3 years of warranty depending on product series, covering module failures and controller defects. Spare modules are included in most shipments at cost, and warehouse stock in four countries shortens replacement time to days instead of weeks.
How do I get an accurate quotation?
Send us: ① wall size (W×H) or panel count, ② application and viewing distance, ③ country and port, ④ indoor or outdoor. You will receive an itemized factory-direct quotation — panels, controllers, spare parts, and freight — within 2–4 business hours.
Get Your Factory-Direct LED Display Solutions Quote
Free design consultation · Free structural drawing · Response within 2–4 business hours
Send Your Inquiry NowLED Display Solutions: The Complete B2B Buyer’s Guide for 2026
By the LEGIDATECH engineering team · Updated August 2026 · ~15 min read
What Are LED Display Solutions?
An LED display solution is more than a screen — it is a complete, application-matched system: LED panels, cabinets, receiving cards, video processor, power distribution, mounting structure, cabling, and ongoing support, engineered for one specific market. A church video wall, an outdoor billboard, and a rental stage screen all use LED panels, but they differ in pixel pitch, brightness, cabinet material, and servicing method.
Buying from a factory-direct LED screen manufacturer means the system is specified before quotation, not assembled from parts by the buyer. That is the difference between a project that opens on schedule and one that burns budget on missing cables, mismatched controllers, and untrained installers.
How LED Display Technology Works: SMD, COB, and GOB
Every LED wall is built from modules — arrays of red, green, and blue LEDs driven by receiving cards that decode video signals. Three encapsulation technologies dominate commercial LED display solutions today:
- SMD (surface-mounted device): each lamp capsule carries RGB chips. The workhorse for indoor P2.5–P4 and most outdoor screens — the best cost-to-quality ratio.
- COB (chip-on-board): chips are bonded directly onto the PCB and sealed with epoxy. Fine pitch below P1.5, fanless operation, wide viewing angles, and high protection — the choice for control rooms and broadcast.
- GOB / HOB (glue-on-board / hot-melt on-board): an added protective layer over SMD. GOB adds waterproofing and dust resistance; HOB adds impact resistance. Ideal for rental fleets, floor screens, and public areas. We run real water-pour and knock tests on these modules in our factory QC lab.
Deeper engineering detail on all three technologies is in our DIP, SMD, and COB LED technologies guide.
8 Types of LED Display Solutions by Application
Each market rewards a different specification. Here is how we engineer each one:
1. Smart city and public information screens. Reliability and remote management come first: P4–P8, IP65, ambient-light sensors that dim automatically at night, and CMS software for municipal content. These screens commonly run 24/7, so we specify power redundancy on the cabinet level.
2. Outdoor advertising billboards. The KPI is revenue per month. Common-cathode cold screens cut electricity by up to 60% versus older designs — on a large billboard that difference can exceed the screen’s price over its lifetime. P4–P10 with 6,000–10,000 nits covers everything from storefront to highway signage — operators choose this LED screen for advertising when monthly ad revenue must exceed operating cost. See our outdoor LED screen for advertising guide.
3. Church and worship video walls. P2.5–P3.9 delivers readable lyrics from the back row at a church-friendly budget. Front-service cabinets matter here because most sanctuaries have no rear access. Our church LED screen solutions include real installs like the 8.64×3.84m wall at ICGC Church, Tema, Ghana, and P2.5 LED video wall solutions shipped to congregations across five continents. Read our P2.5 LED display guide for the full engineering detail.
4. Corporate, hotel, and conference. Fine pitch P1.5–P2.5 in slim 60mm cabinets, with wireless presentation support. All-in-one LED displays add value for boardrooms that want a TV-like experience without a separate rack room.
5. Rental and live events. Die-cast aluminum, quick locks, curvature, and flight cases. The rental ROI equation is simple: fewer crew hours per gig and fewer damaged modules per tour. Pre-aged rental stock programs let AV companies scale seasonally without buying — the Metastar rental series is our most-booked stage wall.
6. Retail, malls, and hospitality. LED posters, window displays, and ceiling installations that shoppers notice without blocking light. Transparent LED screens turn glass storefronts into digital signage while keeping the interior visible — see our transparent LED screen range.
7. Sports stadiums and arenas. Perimeter boards and scoreboard screens at P8–P16 with anti-glare masks, 7,500+ nits, and impact-tolerant modules. These projects are often tendered — we support the full documentation package.
8. XR and virtual production. P1.5–P2.6 with 7,680Hz refresh and genlock for camera-synchronized shooting. This is the fastest-growing premium segment, and it demands color calibration every single panel — done in our factory before shipping.

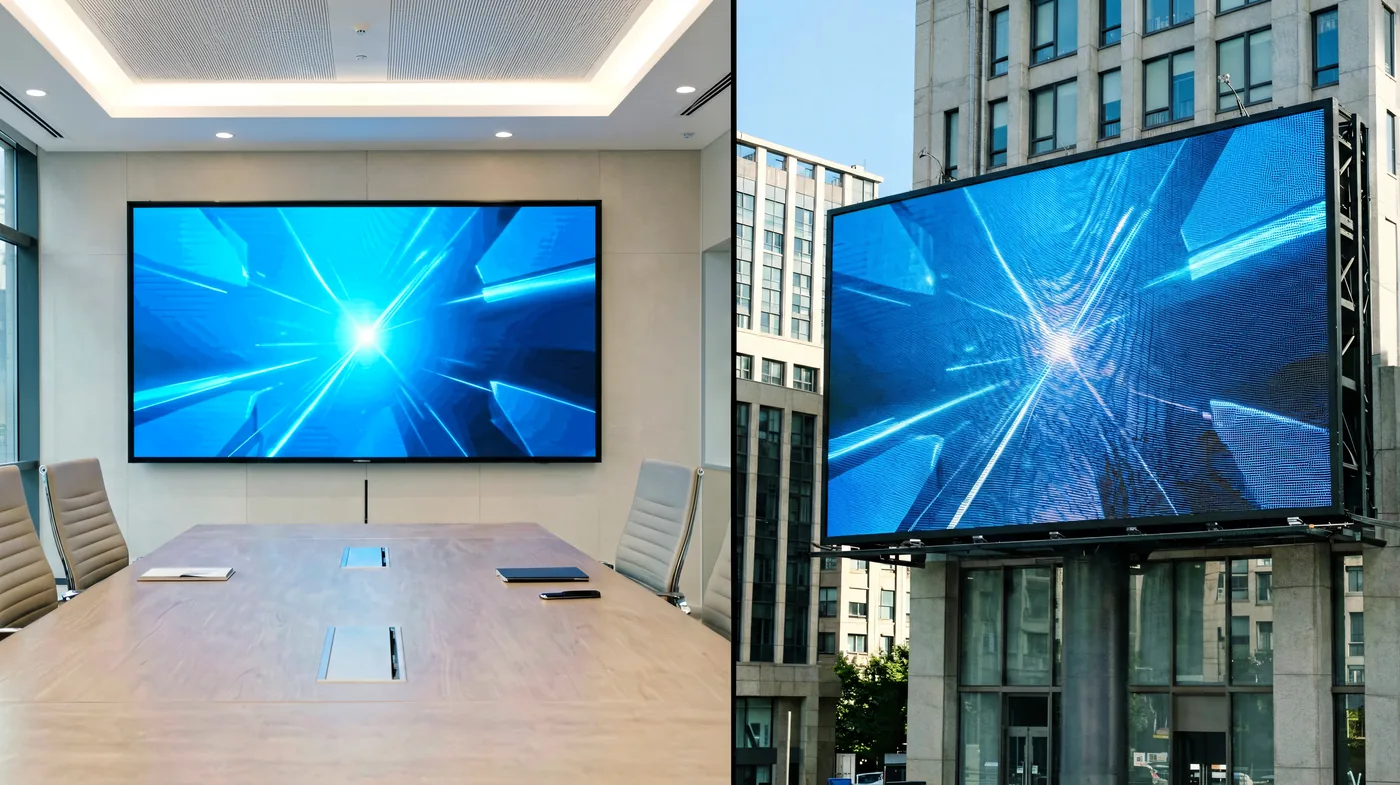

Indoor vs Outdoor LED Screens: Full Comparison
| Factor | Indoor LED Screen | Outdoor LED Screen |
|---|---|---|
| Pixel pitch | P0.9 – P4 (viewing from 1–4m) | P3.9 – P16 (viewing from 4–100m) |
| Brightness | 600 – 1,500 nits | 6,000 – 10,000 nits (sun-readable) |
| Protection | IP20–IP31 | IP65–IP68 (rain, dust, heat) |
| Cabinet | Slim (60mm), lightweight, magnetic | Aluminum, sealed, heat-dissipating |
| Maintenance | Front service, tool-free module swap | Front/rear service, single-person access |
| Power (100m² est.) | ~20–35 kW peak | ~40–70 kW peak (cold screen −60%) |
| Typical use | Churches, retail, conference, control | Billboards, stadiums, public squares |
The full indoor range is on our indoor LED screen page and the outdoor range on our outdoor LED display page.
Key Specifications Explained: Pixel Pitch, Brightness, Refresh Rate, IP Rating
Four numbers decide 90% of an LED purchase. Learn to read them and vendor hype disappears:
- Pixel pitch (P value): distance between lamp centers in millimeters. Halving the pitch roughly quadruples pixel density and price. P2.5 indoor is the commercial sweet spot; P4 outdoor is the billboard sweet spot.
- Brightness (nits): 600–1,500 indoors; 6,000–10,000 outdoors. A 4,500-nit outdoor screen washes out in direct sun. Verify the number is measured, not “theoretical maximum”.
- Refresh rate (Hz): 1,920Hz minimum for camera work, 3,840Hz for broadcast, 7,680Hz for XR. A 1,920Hz screen filmed with a phone camera shows scan lines.
- IP rating: IP65 = rain and dust resistant (outdoor). IP20 = indoor only. “IP65 front” on an indoor cabinet is not the same as a fully sealed outdoor cabinet.
| Pixel Pitch | Best For | Min. Viewing Distance | Relative Cost |
|---|---|---|---|
| P1.2 – P1.5 | Control rooms, XR, premium retail | 1.2 – 1.5m | $$$$ |
| P1.8 – P2.5 | Conference, church, retail | 1.8 – 2.5m | $$$ |
| P2.6 – P3.9 | Stage, rental, larger venues | 2.6 – 4m | $$ |
| P4 – P6 | Outdoor storefront, city screens | 4 – 6m | $$ |
| P8 – P16 | Billboards, stadiums | 8 – 16m | $ |
For regional price benchmarks by pitch and environment, read the LED screen price guide 2026.
How to Select the Right LED Display Solution: A 5-Step Method
Step 1 — Define the content and viewing distance. Text-heavy content needs finer pitch; video-only content tolerates coarser pitch. Measure where the closest viewer will stand.
Step 2 — Decide indoor vs outdoor early. This fixes brightness, IP rating, and cabinet material. Converting an indoor screen to outdoor use later is not economical.
Step 3 — Budget for the system, not the panels. Commercial LED display solutions are priced as complete systems — structure, cabling, controller, installation, and freight typically add 30–50% on top of panel price. Request a line-item quotation that shows all six.
Step 4 — Compare lifetime cost, not purchase price. Power consumption over 10 years and module failure rate dominate total cost of ownership. A screen that is 15% cheaper but draws 60% more power is the expensive option.
Step 5 — Verify the factory, not just the brochure. Ask for production-line video, certification files, and a reference client in your region. A real manufacturer shows you the burn-in room; a trader shows you a catalog.

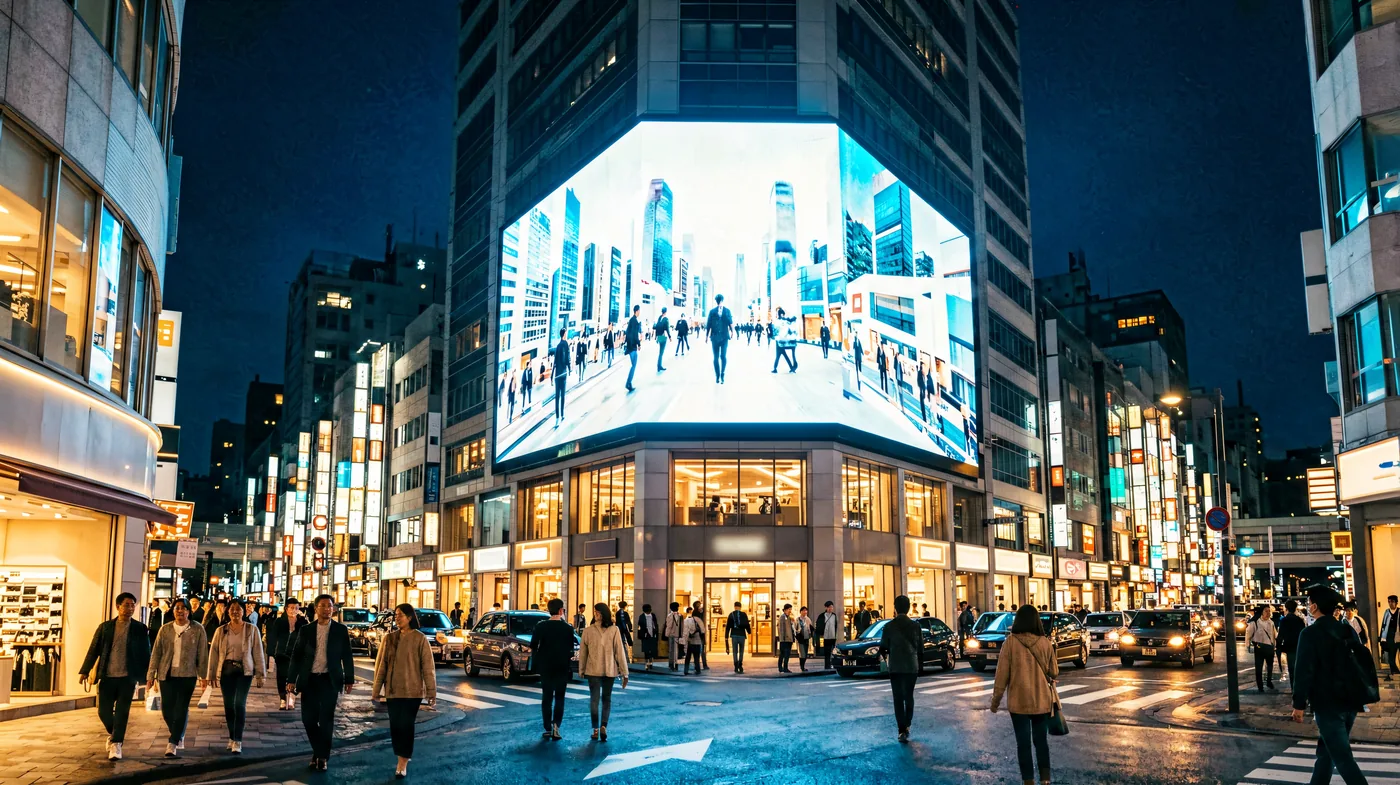

LED Display Solutions Cost & ROI in 2026
Factory-direct pricing in 2026: indoor P2.5–P4 systems typically land at $700–$1,500/m²; outdoor P4–P10 at $900–$1,800/m²; fine-pitch COB P1.5 and below starts higher and scales with resolution. These are system prices including cabinets and controllers — distributors commonly add 30–50%.
On the revenue side, outdoor advertising screens in tier-2/3 cities commonly recover their cost in 12–24 months of ad bookings; church and corporate walls justify themselves through avoided projector maintenance and reusable content; rental fleets typically amortize in 18–30 months at standard market day rates. The fastest payback we see is the cold-screen billboard: the 60% energy saving alone covers the screen price premium in under two years.
Why Choose LEGIDATECH as Your LED Screen Manufacturer
One factory, one responsibility. 13 years of LED manufacturing in Shenzhen, exporting to 108+ countries. We design, assemble, age-test, and pack in-house — when a screen has a problem, you are talking to the people who built it, not a reseller.
Quality you can watch, not just read about. 72-hour burn-in on every panel; GOB waterproof and HOB impact tests filmed on real modules; RoHS, FCC, and CCC certifications shipped with every order. Visit our factory page — or book a video-call walkthrough of the production line.
Local support where it matters. Spot warehouses in Malaysia, South Africa, the USA, and Nigeria, plus trained installation partners, cut lead times and spare-part waits from months to days.
Honest guidance. We will recommend a cheaper product when it fits your project better — long-term buyers are worth more than one sale. That is why churches in Ghana, billboard operators in Vietnam, and AV companies in the USA reorder from us year after year.
Quick Answers Before You Buy
Q: What is the minimum order quantity? There is no strict MOQ — single screens and full stadiums both ship from our factory. Production takes 7–15 days plus freight time.
Q: How long does an LED screen really last? 100,000-hour lamp rating; at 12 hours of daily use that is over 20 years to half brightness, with modules individually replaceable along the way.
Q: Can you match a competitor’s specification sheet? Send it to us. We will produce a line-by-line comparison against our closest series and quote both — you decide which spec you actually need.
Q: Do you offer samples? Yes — module and panel samples ship by air with your logo test file loaded, so you verify brightness, color, and build quality before committing to a full order.
Q: What about after-sales? 2–3 year warranty depending on series, spare modules at cost, remote diagnostics, and warehouse stock in four countries. Browse more answers on our FAQs page, or keep reading in the LED display knowledge center.
