The Complete Guide to LED Display Products

LED Display Products: One Technology, Many Product Lines

Every LED display product — from a P1.2 control-room wall to a P20 highway billboard — is built from the same foundation: LED modules driven by receiving cards, assembled into cabinets, and managed by a control system. What separates the product lines is how those building blocks are optimized for the job. Indoor fixed displays optimize for pixel density and slim design. Outdoor advertising displays optimize for brightness, waterproofing and 24/7 duty. Rental displays optimize for rigging speed, weight and transport survival. Understanding this makes product selection simple: the right product line is the one whose optimizations match your project’s constraints. A professional LED display manufacturer maintains all three core lines — and the specialist lines that branch off them — because real projects combine several types.

Types of LED Display Products

The three core lines cover most projects. Indoor fixed LED displays range from fine-pitch P1.2 COB walls for control rooms to P3–P4 screens for lobbies, retail and churches, with front-maintenance series like Ehonor for wall-mounted installs. Outdoor advertising LED displays span DIP high-brightness billboards (B Pro series), SMD advertising screens (AB/AC series) and large-format facades, all IP65-rated for weather. Stage rental LED displays — RA, RC and Enova series — use quick-lock mechanisms and flight-case packaging for daily builds on tour. Around these sit the specialist lines: COB modules for fine pitch and impact resistance, LED posters for plug-and-play retail, transparent displays for glass facades, flexible panels for curves, and creative displays — spheres, dance floors, magic cubes, sky panels — for signature installations. Custom LED display engineering covers anything outside the standard range.

Indoor LED Display Products

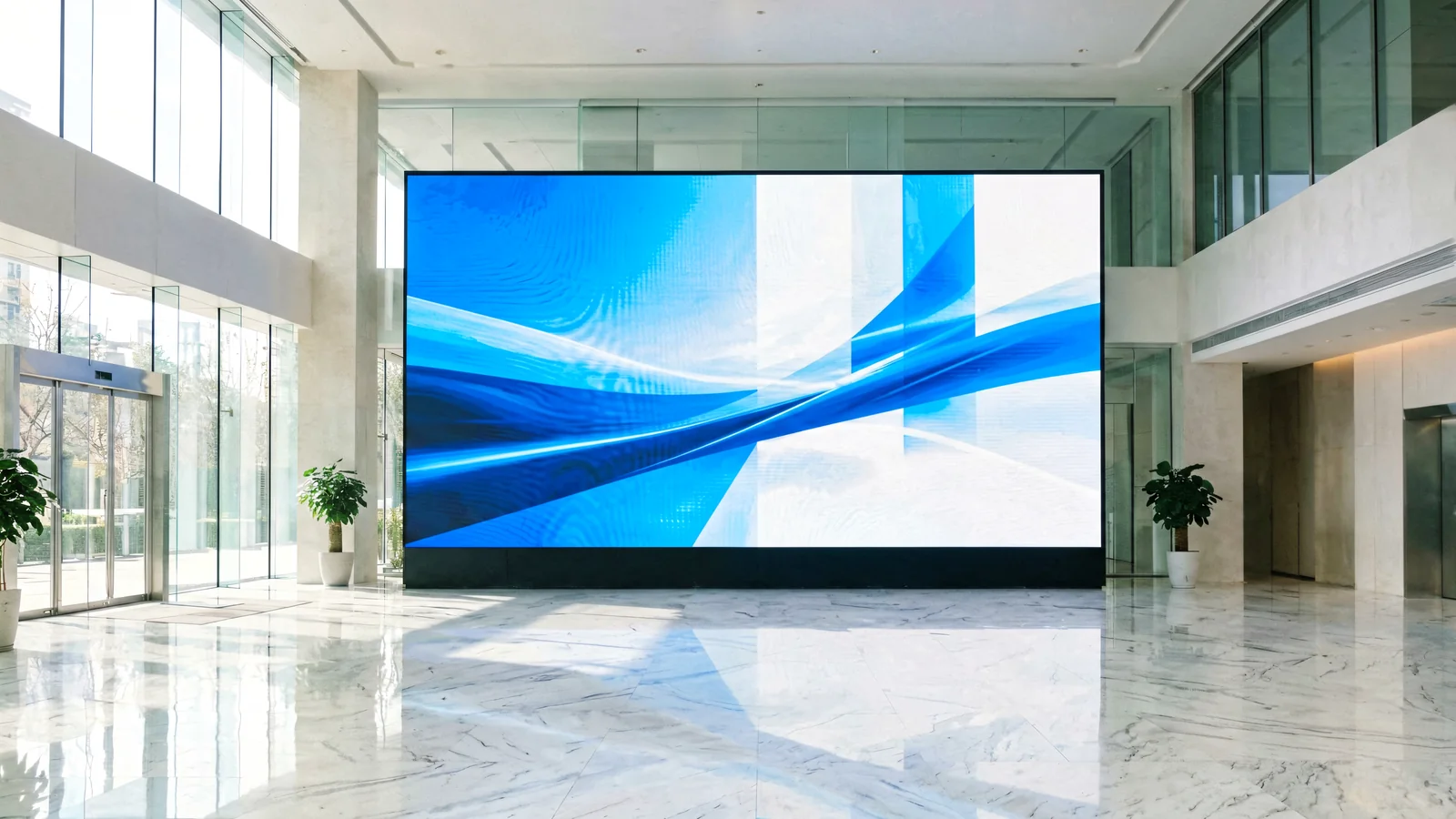

Indoor products are chosen by pixel pitch and service access. Fine pitch (P1.2–P1.9) suits control rooms, broadcast and premium corporate walls where viewers stand two to four meters away; P2.5–P3.9 covers lobbies, conference centers, retail and worship spaces. Indoor screens run at 800–1,500 nits — enough for artificial light, comfortable for close viewing, and efficient over the eight-to-ten-year lifespan typical indoors. Two structural decisions matter more than the spec sheet: front versus rear service (a wall-mounted screen you cannot service from the front is a maintenance liability), and cabinet design (magnetic-module front-service designs like the Série Ehonor cut repair time to minutes). COB modules add impact resistance and wide viewing angles for public-facing installs where SMD panels would be exposed to touch and traffic.

Outdoor LED Display Products

Outdoor products live or die by brightness and waterproofing. A street-facing billboard needs 4,500–7,000+ nits to stay readable in direct sunlight — west-facing walls and tropical sites take the higher end. IP65 front and rear protection, surge-protected power and industrial-rated components separate a ten-year billboard from a one-season screen. Pixel pitch follows viewing distance: P4–P6 for close street view, P8–P10 for building facades and road-facing signs, P16–P20 for long-distance highway advertising. DIP-technology billboards remain the standard for extreme brightness at long distance, while SMD outdoor screens deliver better color and viewing angle at closer ranges. Outdoor projects also add structural engineering — wind load calculations and steel structure design are part of the product decision, not an afterthought.

Produits d'affichage LED en location

Rental products are logistics products. The screen is unpacked, built, struck and packed hundreds of times, so the engineering focuses on what happens between shows: tool-free quick locks, lightweight cabinets, curved options, redundant power and signal paths, and flight cases designed for truck and airline handling. P3.9 remains the touring standard — a balance of resolution for stage viewing and weight for rigging; P2.6–P3.9 covers indoor events, P4.8 outdoor events. Rental displays also drive the control requirement that fixed installs rarely need: redundant processors and backup inputs, because a live show cannot wait for a reboot. When buying rental screens, evaluate build time per square meter and spare-module logistics as carefully as the pixel pitch — see our flight case packaging guide for what to check.

How to Choose LED Display Products

Select in this order. First, the application — this fixes the product line. Second, the environment — indoor or outdoor, which fixes brightness and protection class. Third, the viewing distance — which fixes pixel pitch. Fourth, the installation — fixed or rental, which fixes cabinet and service design. Fifth, the content and control — live video or scheduled media, which fixes the control system. Every other specification follows from these five answers. The most common buyer mistakes are choosing pitch for the average viewer instead of the closest one, and treating waterproofing or maintenance access as optional features. When in doubt, ask the factory to specify the configuration from the project data — that is what an LED display manufacturer’s engineering team does every day.

Pixel Pitch and Viewing Distance

Pixel pitch is the distance between LED centers, measured in millimeters, and it sets both the resolution ceiling and the minimum viewing distance of a screen. The practical rule — pitch in millimeters equals minimum comfortable viewing distance in meters — holds across product lines: a P1.5 wall resolves individual pixels only closer than 1.5 m, which is exactly what a control room needs; a P3.9 stage screen is viewed from four meters and beyond, where its pixel structure disappears. Pitch also drives cost and weight: halving the pitch roughly quadruples LED count per square meter. The correct choice is therefore the largest pitch that still disappears at the closest viewing position — not the smallest pitch in the budget.

Viewing Distance and Screen Size

Screen size and pitch work together. A viewer needs enough pixels for the content: a lobby wall showing corporate video wants a minimum of about 1.9 mm pitch per meter of viewing distance, while a billboard at 100 m can use P10 or coarser. A useful planning sequence: decide the closest viewing position, calculate the maximum acceptable pitch from the rule above, then derive the screen’s pixel dimensions from its physical size and check the result against the content’s native resolution. A 5 m × 3 m P2.5 wall is 2,000 × 1,200 pixels — ideal for full HD content; the same wall in P3.9 drops to 1,280 × 768, below full HD. Resolution awareness at the planning stage prevents screens that look soft on arrival.

Brightness Classes

Brightness is specified in nits (cd/m²) and chosen by ambient light, not preference. Indoor rooms: 800–1,500 nits. Window-facing indoor: 2,500–4,000. Outdoor shaded or north-facing: 4,000–5,000. Outdoor direct sun: 5,000–7,000+. Outdoor tropical or west-facing: the top of the range. Running an indoor panel at outdoor brightness is impossible; running an outdoor panel at indoor settings is wasteful but harmless. Brightness also interacts with contrast and black level — a high-brightness panel with a light-gray black surface washes out at night, which is why black-mask and COB designs matter on premium screens.

Méthodes d'installation

LED displays install four ways: wall-mounted (fixed series, front or rear service), ground-stacked (rental series with support frames), hanging (rental series from truss, rated rigging), and structural (outdoor billboards on engineered steel). Each method imposes cabinet requirements: wall mounting favors slim depth and front maintenance; hanging favors light weight and certified rigging points; structural outdoor favors rear access and cable management. The installation method should be decided before the product line — a screen chosen without it often arrives with the wrong service side or rigging. Our LED video wall installation guide walks through each method.

Maintenance et pièces de rechange

LED displays are repairable products, and the maintenance plan is part of the purchase. Standard practice from a factory-direct manufacturer: spare modules and receiving cards shipped with the project, modular design so a single technician can replace a module in minutes, and remote support for configuration issues. Front-service designs eliminate scaffolding for wall-mounted screens; flight-case spare kits do the same for touring. Compare maintenance cost over the screen’s lifespan — for an outdoor billboard that can mean five to eight years of site visits — when evaluating two products with similar upfront prices.

LED Display Manufacturing

Manufacturing quality is set by the process, and the process is visible in the product. In-house SMT assembly with consistent LED batches keeps color and brightness uniform across a screen; 72-hour aging catches early failures before packing; cabinet-level calibration evens out module differences; and factory configuration — receiving cards installed, screen files loaded, control system matched — is what makes a display work on arrival. These steps are the difference between an usine d'écrans LED and a trading company: the factory controls them, the trader hopes for them. It is also why factory-direct pricing and factory-direct support go together.

B2B Project Considerations

B2B buyers evaluate LED display products as capital equipment: total cost of ownership across the installation’s lifespan, not the quote price alone. That means pitch chosen for the closest viewer, brightness chosen for the worst light, waterproofing chosen for the harshest season, spares included with the shipment, control systems matched at the factory, and a supplier with engineering capacity behind the sale. Projects also scale: a single lobby wall today often becomes a chain of stores or a city media network tomorrow, which favors a manufacturer with all three core product lines and custom engineering. That is the structure LEGIDATECH is built on — and the reason this products hub leads with three core lines, not a long list of part numbers.
