480x320mm Indoor LED Screen
Ehonor Series by LEGIDATECH
The industry’s lightest 480x320mm front-service indoor LED display panel — only 2.7 kg, magnetic module (no screws), 3840 Hz refresh, P1.25-P3.076 pitch. Factory-direct $600-$1,300/m² with 5-year warranty.
- 7 pixel pitch options: P1.25 / P1.53 / P1.667 / P1.86 / P2 / P2.5 / P3.076
- SMD / GOB / COB LED packaging — tailored to your application
- True full front maintenance — modules, PSU, receiving card all front-accessible
- CNC die-cast aluminum + flame-retardant ABS — 100,000-hour lifespan
FCC / CE / RoHS
Factory Direct
Global Shipping
5-Year Warranty
Pre-Assembled
What Is a 480x320mm Indoor LED Screen?
A 480x320mm indoor LED screen is a standardized front-service LED display panel for fixed indoor installation. Each cabinet measures 480mm (W) x 320mm (H) x 70mm (D) and houses three 320x160mm LED modules — the industry’s most widely adopted format.
El Serie Ehonor by Fabricante de pantallas LED LEGIDATECH is engineered for commercial indoor environments: conference rooms, churches, retail stores, broadcast studios, and control centers.
Key differentiator: true full front maintenance. Unlike traditional panels requiring rear access, every component — modules, power supply, receiving card — is front-accessible.
Ehonor Series — Product Gallery
Every detail engineered for performance and ease of maintenance.
Ultra-slim 70mm profile
16-point magnetic module system
Front maintenance in seconds
Only 3 kg per cabinet
Custom logo printing available
Supports arc/curved installation
True Full Front Maintenance
Most “front service” panels only allow front access to modules — power supplies and receiving cards still need rear access. Ehonor is fundamentally different.
Each cabinet uses 16 neodymium magnets securing three 320x160mm modules. A vacuum tool removes any module in under 5 seconds. Power supply, receiving card (NovaStar/Huidu/Colorlight), and all wiring are accessible entirely from the front.
- ✓ Zero rear clearance — flush wall-mount, recessed alcoves
- ✓ 5-second module swap — no tools, no technician needed
- ✓ 60% lower maintenance labor vs. rear-service walls
- ✓ NovaStar / Huidu / Colorlight compatible
Full Technical Specifications
7 pixel pitches, one unified 480x320mm cabinet platform. For cabinet details see our cabinet solutions guide.
| Parámetro | P1.25 | P1.53 | P1.667 | P1.86 | P2 | P2.5 | P3.076 |
|---|---|---|---|---|---|---|---|
| Paso de píxeles (mm) | 1.25 | 1.53 | 1.667 | 1.86 | 2 | 2.5 | 3.076 |
| Tamaño del armario (mm) | 480 x 320 x 70 | ||||||
| Peso del gabinete | 3.0 kg | ||||||
| Resolución del panel | 256×128 | 208×104 | 192×96 | 172×86 | 160×80 | 128×64 | 104×52 |
| Pixels Per Panel | 32,768 | 21,632 | 18,432 | 14,792 | 12,800 | 8,192 | 5,408 |
| Brillo | 600-800 cd/m² | ||||||
| Frecuencia de actualización | >=3,840 Hz | ||||||
| Escala de grises | 14-16 bit, 68.7B colors | ||||||
| Ángulo de visión | 160°/160° (H/V) | ||||||
| Fuerza | 800 W/m² max / 300 W/m² avg | ||||||
| Voltaje | AC 100-240V, 50/60 Hz | ||||||
| Clasificación IP | IP31 | ||||||
| Material del gabinete | CNC Al frame + flame-retardant ABS | ||||||
| Sistema de control | NovaStar / Huidu / Colorlight | ||||||
| Esperanza de vida | >=100,000 hours | ||||||
| Warranty | 5 Years (LEGIDATECH) | ||||||
Why Choose the Ehonor 480x320mm Panel?
Eight engineering advantages for B2B buyers.
3 kg Ultra-Light
Among the lightest 480x320mm LED screen panels — less steel, faster install, lower cost.
3,840 Hz Refresh
Zero flicker for cameras. Essential for live-streamed services and video conferencing.
H & V Mounting
Landscape or portrait with one cabinet. No signal/power re-routing needed.
Dual-Vortex Cooling
ABS vents + Al frame heat sink. Cooler 24/7 operation, 100,000+ hour lifespan.
100-240V Global
Deploy worldwide — no external transformers needed.
Factory Pre-Assembled
Modules installed, calibrated, 72h burn-in tested. 70% less commissioning time.
Custom Logo Printing
Your brand on every panel back cover. Branding asset during installation & maintenance.
Pixel Pitch Selection Guide
Rule of thumb: minimum viewing distance (m) = pixel pitch (mm).
| Paso | Distancia de visión | Solicitud |
|---|---|---|
| P1.25 / P1.53 | 1.3-2.5 m | Boardrooms, broadcast |
| P1.667 / P1.86 | 1.7-3.5 m | Conference, lobbies |
| P2 / P2.5 | 2.0-5.0 m | Churches, retail, museums |
| P3.076 | 3.0-6.0 m | Auditoriums, exhibitions |
Pro tip: P2 or P2.5 = best quality/cost for churches and conference rooms.
Ehonor vs Traditional Rental LED vs COB
Data-driven comparison for B2B procurement decisions.
| Dimension | Ehonor 480x320mm | Traditional Rental | LED COB |
|---|---|---|---|
| Peso | 3.0 kg ✓ | 6.5-9.5 kg | 4.5-7.0 kg |
| Mantenimiento | Full Front ✓ | Rear/Partial | Module-only |
| Flush Wall-Mount | ✓ Sí | ✗ Needs rear | ✓ Limitado |
| Pitch Range | P1.25-P3.076 ✓ | P1.9-P10 | P0.7-P1.5 |
| Frecuencia de actualización | 3,840 Hz ✓ | 1,920-3,840 Hz | 3,840 Hz |
| Cost/m² (P2.5) | $600-$1,300 ✓ | $900-$1,500 | $1,800-$3,500 |
| Module Swap | <5 sec ✓ | 30-120 sec | Not replaceable |
| Esperanza de vida | 100k hrs ✓ | 80k-100k hrs | 80k-100k hrs |
| Warranty | 5 Years ✓ | 1-3 Years | 2-3 Years |
| Ideal para | Fixed indoor | Rental/Stage | Premium near-view |
Designed for Flexible Installation & Reliable Operation
Two engineering features that make Ehonor uniquely adaptable to any indoor environment.
Admite montaje en arco interno
The Ehonor series installs in both standard flat configurations and curved arcs — solving a major challenge for integrators who previously needed to purchase two separate screen types. The cabinet’s internal adjustment mechanism allows curvature without external brackets, saving cost and simplifying inventory. Whether your project calls for a flat video wall or a curved immersive display, one product line covers both.
Advanced Heat Dissipation — Silent & Safe
The indoor LED display uses advanced passive cooling technology: dual-vortex venting channels on the flame-retardant ABS back cover actively channel hot air away, while the CNC die-cast aluminum frame serves as a natural heat sink. This fanless design minimizes operating noise — critical for conference rooms, churches, and broadcast studios where silence matters. The efficient cooling system prevents overheating damage and extends the display service life beyond 100,000 hours. Engineering-grade V-0 flame-retardant materials eliminate the safety risks of cheaper plastics during extended operation.
Proven Applications — 6 Scenarios, One Platform
Deployed in 30+ countries across core commercial environments. Each scenario optimized for pixel pitch, brightness, and installation method.
Conference Room & Boardroom
P1.5-P2.0
Replace projectors with seamless LED. 3,840 Hz = flicker-free video conferencing. Flush wall-mount, zero rear clearance needed.
Church & Worship Venues
P2.0-P2.5
Lyrics, scripture, IMAG, sermon content. 160deg viewing ensures visibility from every seat. Magnet module = volunteer-friendly maintenance.
Shopping Mall & Retail
P1.8-P2.5
Centerpiece for promotions, brand stories, and events. Fanless silent 24/7 operation. IP31 dust protection.
Airport & Transportation Hub
P2.0-P3.076
Real-time flight info + large-format advertising. Wide viewing angle for concourse visibility. 100-240V global-ready power.

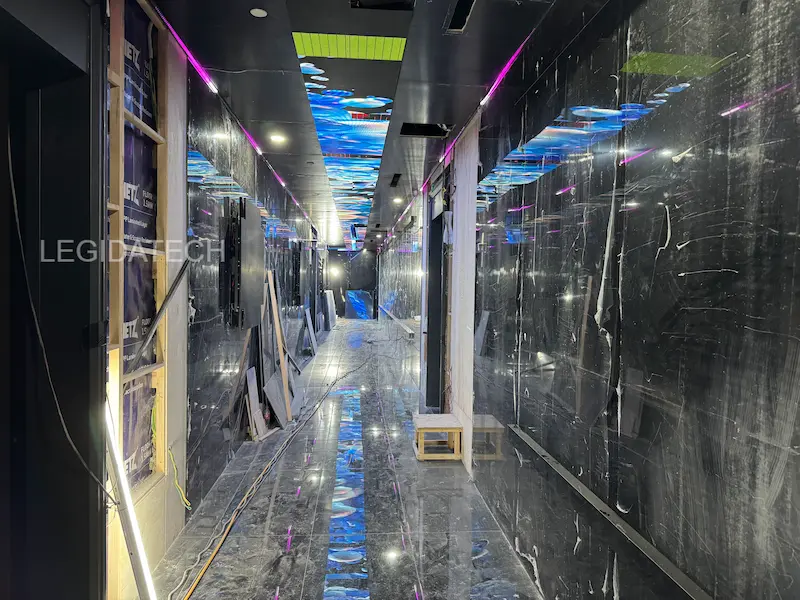

KTV / Club / Entertainment
P2.0-P3.076
Create immersive atmosphere with dynamic visuals. Arc mounting support enables curved DJ booths and wraparound walls. High refresh rate for social media video capture.
Control Room & NOC
P1.25-P1.86
24/7 mission-critical reliability. Fanless = zero noise in monitoring rooms. Front-service = zero downtime during maintenance. NovaStar/Huidu/Colorlight ready.
Manufacturing Excellence
ISO 9001-certified facility. Every panel passes 7-stage QC:
- Incoming Material Inspection
- SMT Assembly & Automated Optical Inspection
- Per-Module Color/Brightness Calibration
- CNC Frame Assembly & Wiring
- 72-Hour Burn-In Aging Test — every cabinet
- Full-Screen Color Uniformity Verification
- Export-Grade Wooden Crate Packaging
FCC, CE, RoHS certified. Third-party inspection welcome.
From Production Line to Your Destination — Inside LEGIDATECH Factory
Every Ehonor 480x320mm indoor LED screen is manufactured, tested, packed, and shipped from our own ISO 9001-certified facility. No outsourced assembly, no third-party QC gaps — full visibility from SMT production to container loading.

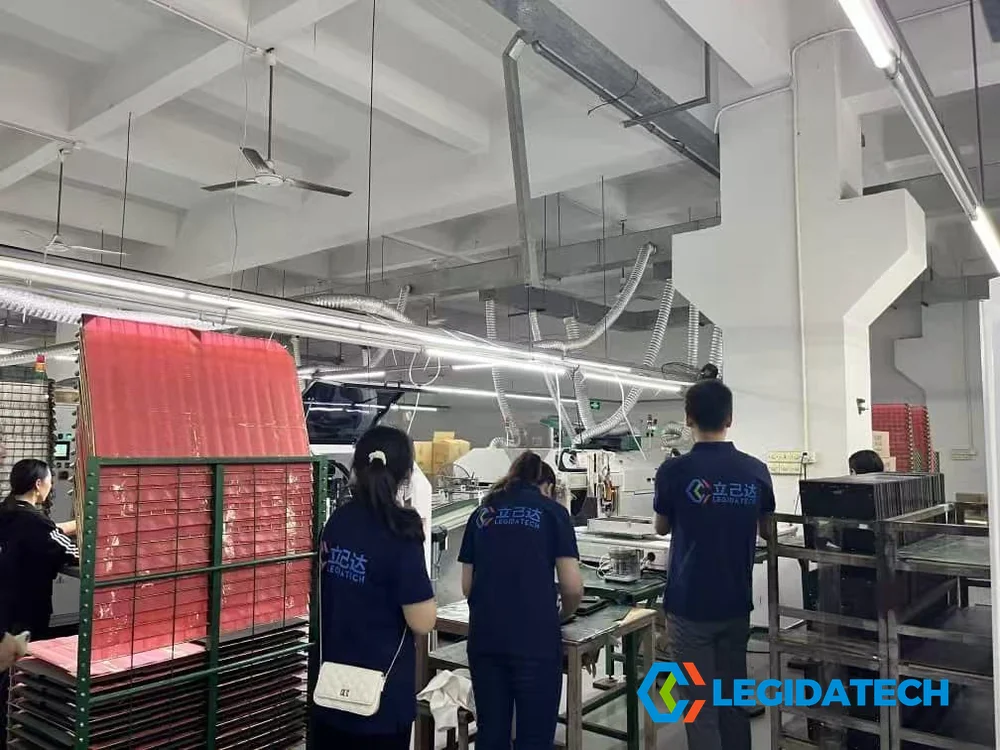

SMT Production Workshop
Skilled operators running automated SMT lines for Ehonor 480x320mm LED module production. Every batch undergoes inline AOI (Automated Optical Inspection) to verify solder joint quality before moving to assembly.

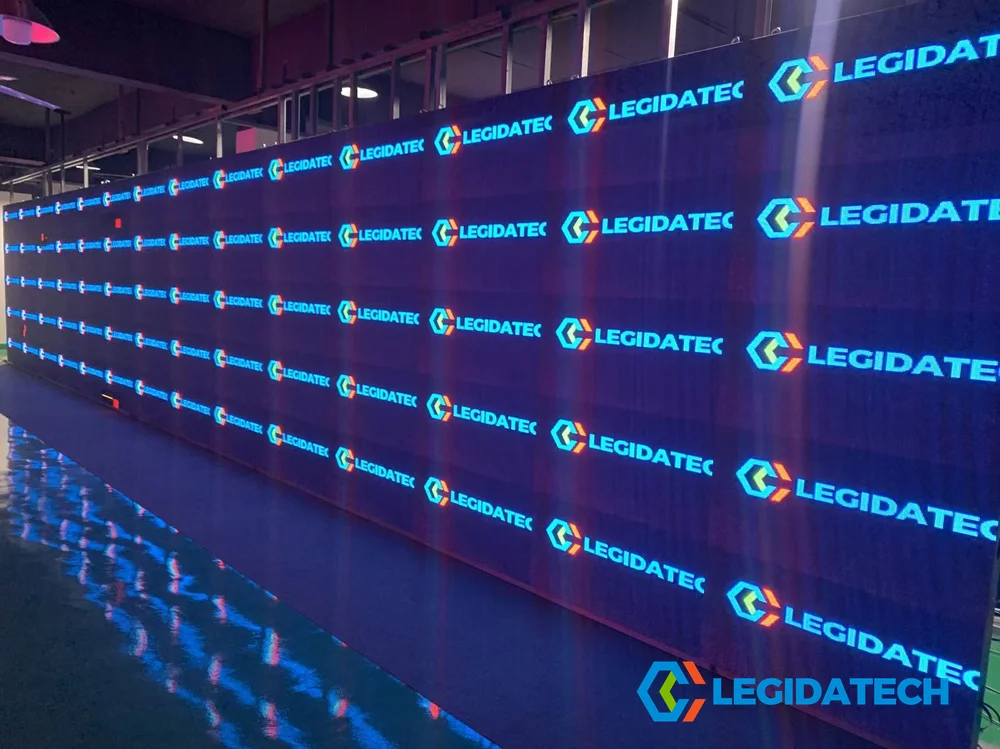

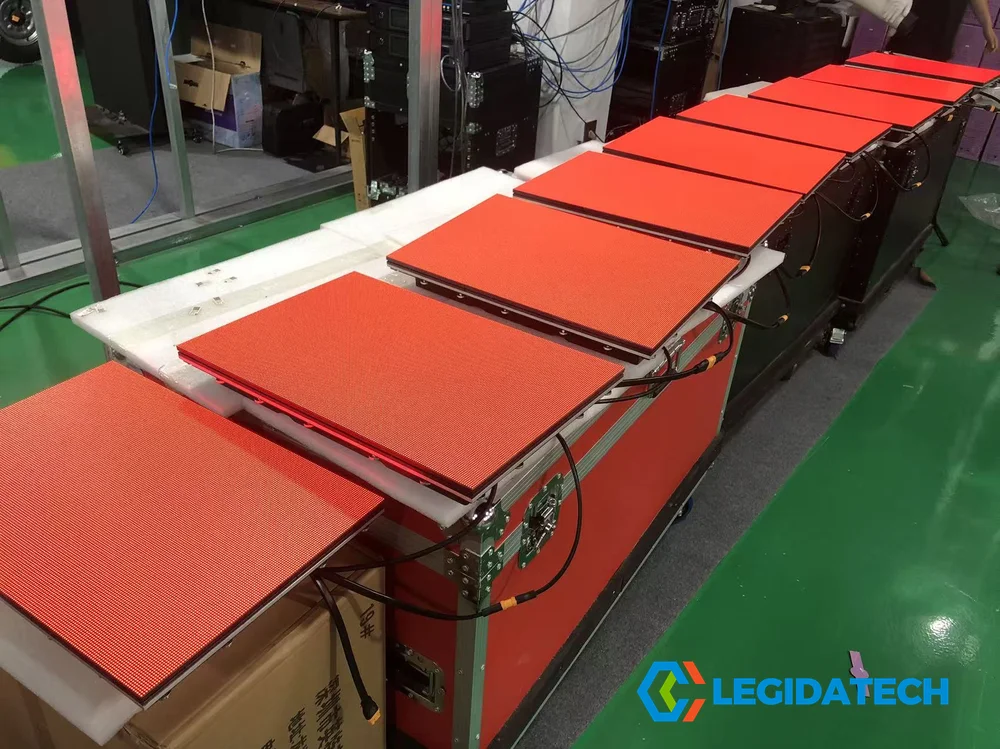

LED Panel Aging Test Wall
Assembled Ehonor panels are mounted on aging test walls and run continuously for 72 hours. Real-time monitoring identifies any pixel anomalies. Dead pixels are replaced before the panel clears this gate.

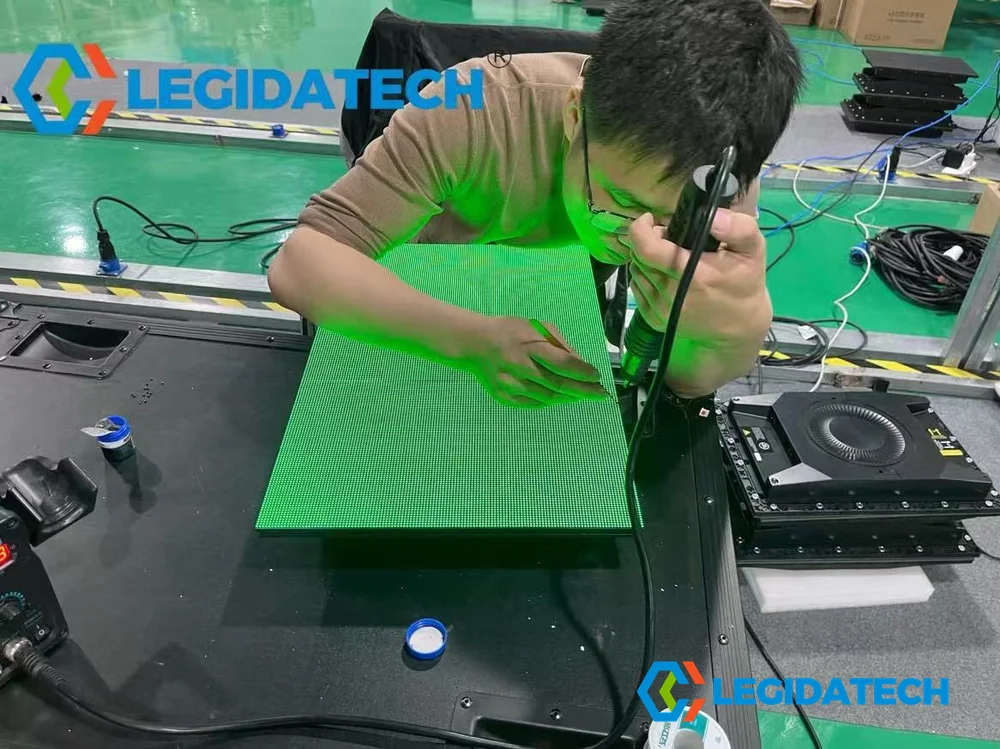

Quality Control Inspection
Dedicated QC station where each panel undergoes full-screen color uniformity testing — white, red, green, blue, and grayscale gradient. Any deviation from specification triggers immediate rework before inventory acceptance.

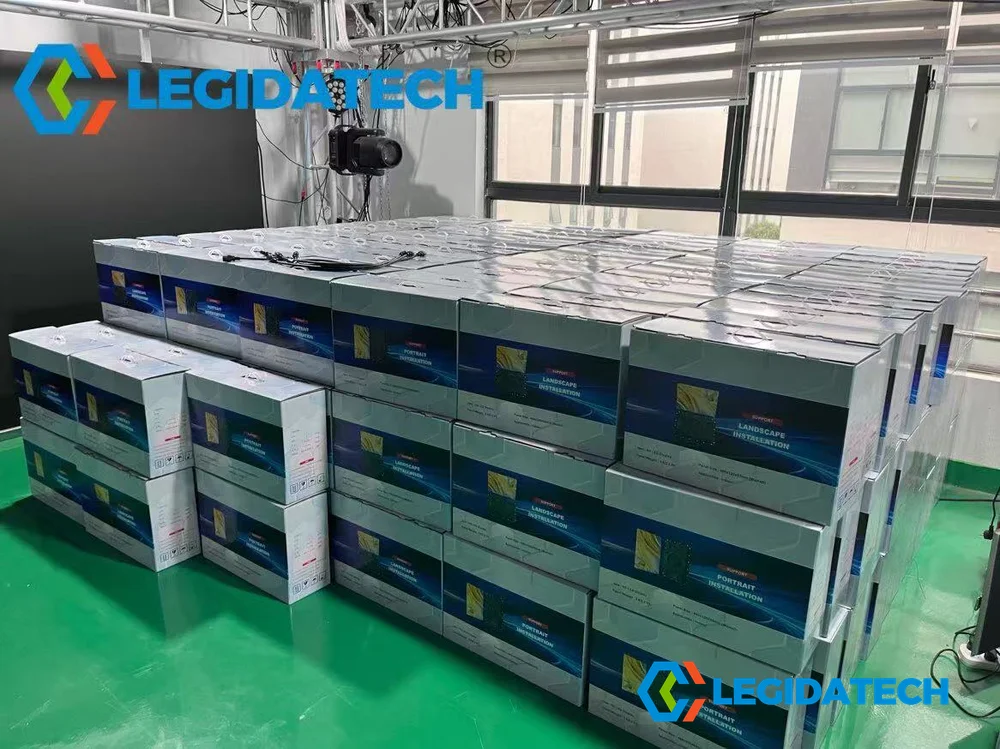

Protective Color Box Packaging
Each Ehonor 480x320mm cabinet is individually packed in a protective color box with custom foam cushioning. Stacked and staged for consolidation into fumigated wooden crates — this method reduces transit damage to near zero.

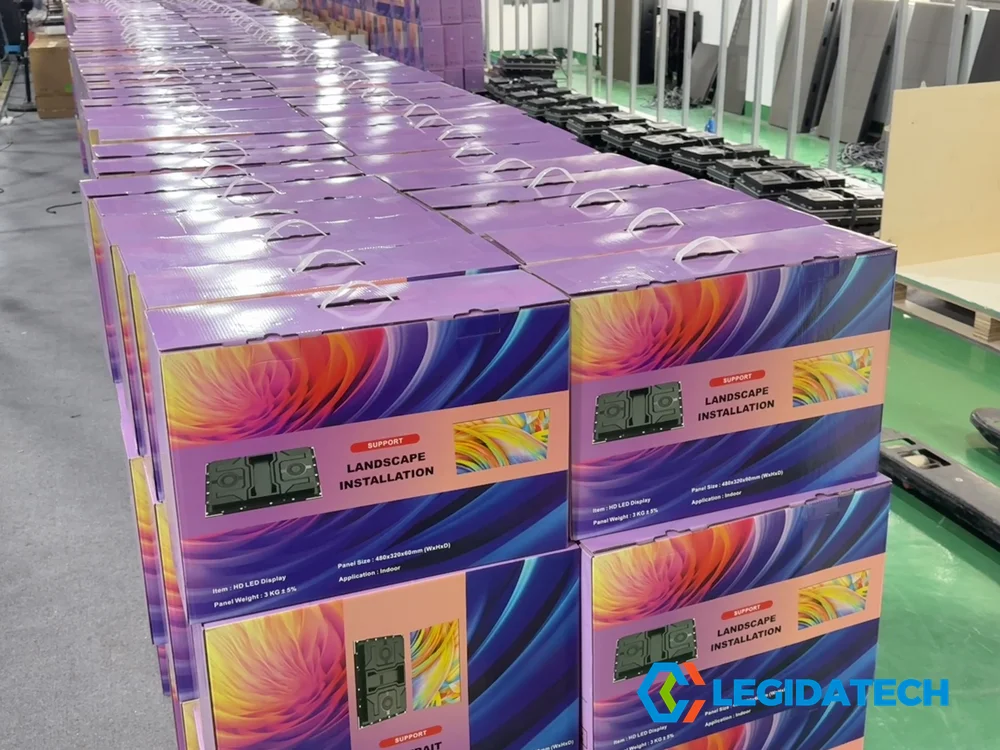

Finished Goods Inventory
QC-passed and boxed Ehonor cabinets staged in our finished goods area. Orders from single evaluation units to 500m²+ bulk projects are processed through this staging zone. Critical spare parts maintained in stock for 5+ years.

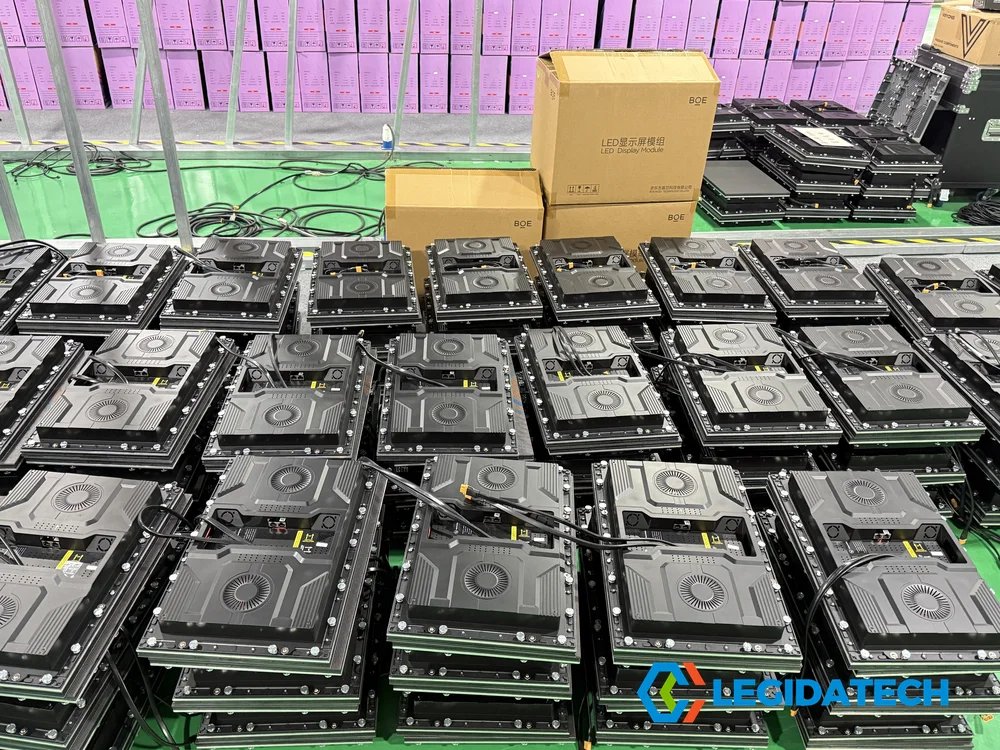

Electronic Parts Warehouse
Dedicated inventory of LED driver ICs, receiving cards, power supplies, and other electronic components. This ensures both production continuity and rapid after-sales spare part dispatch — same-day shipping for critical replacements.
Precision Fabrication Equipment
In-house CNC machining and fabrication capabilities for Ehonor cabinet frames and structural components. Vertical integration eliminates supplier dependencies and ensures consistent dimensional accuracy across every production batch.

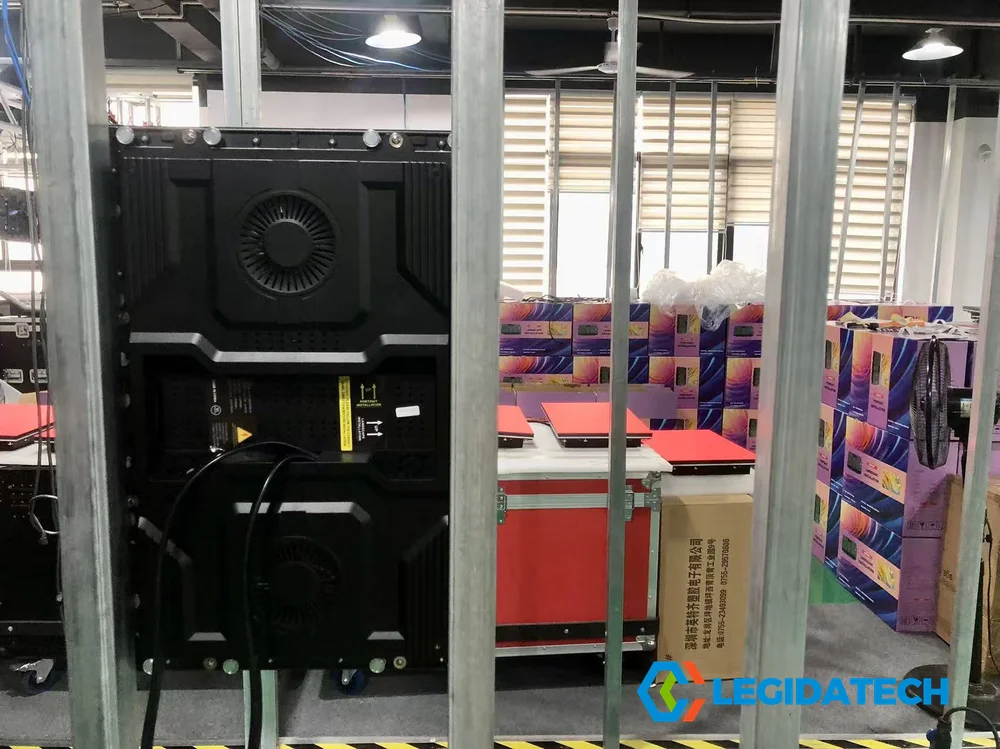

Order Fulfillment Warehouse
Packed cabinets organized by order in our fulfillment warehouse. Each shipment is verified against the commercial invoice and packing list before crate consolidation. Export documentation prepared in parallel for customs clearance.

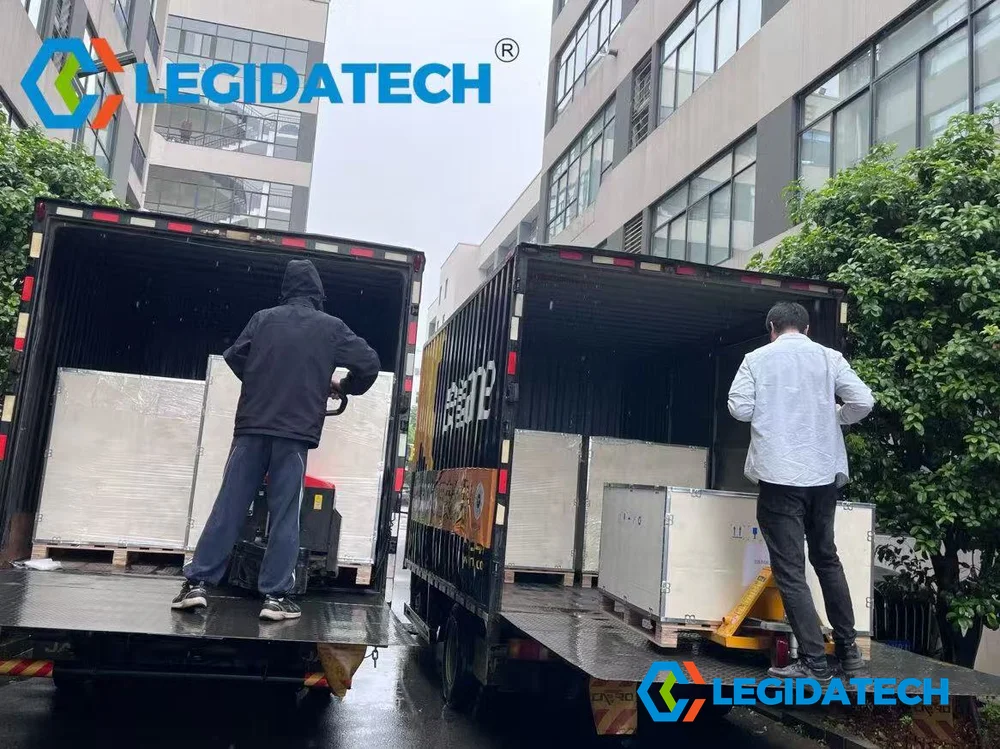

Container Loading & Global Shipping
Crates loaded into containers at our facility. Complete export documentation: commercial invoice, packing list, bill of lading, certificate of origin, FCC/CE/RoHS. Air freight (3-7 days) for urgent orders; sea freight (20-45 days) for production volumes.
Installation & Maintenance
Designed for rapid deployment. Full guide: magnetic LED installation guide.
Steel Structure
Laser-level E-structure. H/V orientation.
Hang Cabinets
Locating pins. Self-aligning. No tools needed.
Connect & Configure
Daisy-chain. RCFG auto-maps layout.
Front Service
Module swap in 5 sec. From the front.
Download Ehonor Series Product Brochure
Complete technical specifications, installation guides, and project planning resources — free PDF download.
Real Ehonor 480x320mm LED Screen Projects Worldwide
Proven deployments in churches, conference centers, retail malls, and entertainment venues across 30+ countries. Each project demonstrates the Ehonor Series’ versatility and reliability in real-world conditions.
P2.5 Indoor LED Screen — Lima, Peru
5.12m x 2.88m Ehonor series fixed installation for corporate conference center. Front-service design enabled flush wall-mounting with zero rear access.
P2.5 Church LED Screen — United Kingdom
4.48m x 1.92m Ehonor series installed behind church pulpit for lyrics, scripture, and IMAG. Self-installed by church volunteers using magnetic mounting system.
P2.5 Retail LED Display — Lagos, Nigeria
High-resolution Ehonor P2.5 installed in Lagos shopping mall for brand advertising and promotional content. Fanless silent operation ideal for retail environment.
COB P1.5 Ehonor LED Screen — Calibration Site
COB (Chip-on-Board) Ehonor P1.5 LED screen calibration and installation for a premium indoor display project requiring ultra-fine pitch and superior surface protection.
P2.5 Full-Color LED Display — Nigeria
Complete Ehonor P2.5 full-color LED display shipped to Nigeria. Project included full installation support, NovaStar control system integration, and on-site commissioning.
Magnetic LED Display Installation Guide
Step-by-step installation tutorial for the Ehonor series magnetic LED display using custom steel structure. Covers leveling, cabinet hanging, and signal wiring.
Preguntas frecuentes
Get Your 480x320mm Indoor LED Screen Quote
$600-$1,300/m² factory-direct · 2-4 hour response · Free pitch consultation · 5-year warranty
Confidential. Or call +86-185-69492693 / legidatechled@gmail.com
480x320mm Indoor LED Screen: Complete B2B Buyer’s Guide (2026)
Everything procurement professionals and integrators need to know — pixel pitch to TCO.
1. Understanding the 480x320mm Cabinet Standard
The 480x320mm format emerged from convergence around the 320x160mm LED module — three such modules in a single enclosure produce a 3:2 cabinet that tiles efficiently into both 16:9 and 4:3 walls. As a Fabricante de pantallas LED with over a decade of experience, LEGIDATECH developed the Ehonor Series specifically for fixed indoor installation — solving the real pain points: excessive weight, cumbersome rear access, and rental cabinets poorly repurposed for permanent use.
Market Context
The indoor small-pitch LED market was $8.2B in 2025, projected $15.7B by 2034 (8.3% CAGR). 480x320mm is among the fastest-growing segments. (Source: Dataintelo 2026)
2. Key Specs That Matter
Paso de píxeles determines ~60% of cost. Halving pitch (P2.5 to P1.25) doubles LEDs/m² and panel cost. At 3m viewing, P2.5 is adequate — P1.25 provides no visible benefit. Frecuencia de actualización: 3,840 Hz minimum for any camera-captured content. Brillo: 600-800 nits = sweet spot for indoor. Running at 60% max extends lifespan dramatically.
3. Front Service TCO Advantage
Rear-service panels waste 60-80cm of floor space for maintenance corridors. In prime retail or compact conference rooms, that’s real cost. Ehonor’s front architecture: zero lost space, 5-second module replacement.
5-Year TCO: Ehonor vs Rear-Service (10m² Wall)
| Category | Ehonor | Rear-Service | Savings |
|---|---|---|---|
| Hardware | $6,000-$13,000 | $9,000-$15,000 | 10-20% |
| Estructura | $1,500-$2,500 | $2,500-$4,000 | 30-40% |
| Install Labor | $800-$1,500 | $1,500-$3,000 | 40-50% |
| Lost Space (5yr) | $0 | $2,000-$5,000 | 100% |
| Maintenance (5yr) | $500-$1,000 | $1,500-$3,000 | 60% |
| Total | $8,300-$18,000 | $16,500-$30,000 | 30-50% |
4. Qualifying a Manufacturer
- Certifications: FCC/CE/RoHS + ISO 9001
- Third-party QC: Welcomes SGS/Bureau Veritas
- Burn-in: 48-72h minimum per cabinet
- Component transparency: LED brand, driver ICs, receiving card
- Warranty: 5 years = engineering confidence (industry standard: 2-3)
5. Why LEGIDATECH?
- Patented Ehonor frame — not a generic OEM rebadge
- Spare parts stocked 5+ years after purchase
- Remote engineering support via video call
- 5-year warranty honored at our shipping cost
Ready to Discuss Your Project?
Detailed quotation, pitch recommendation, and system diagram — typically within 4 hours.
Last updated: August 2026. Contact sales for latest specs.
