Outdoor LED Billboard OK Series
OK5 (P5.7) / OK6 (P6.667) / OK8 (P8) / OK10 (P10)
- 6,500 cd/m² brightness — clear in direct sunlight
- IP65 waterproof & dustproof aluminum cabinet
- 960×960×77 mm cabinet, 28 kg, front-service modules
- 3,840 Hz refresh rate, 65,536 grayscale levels
- 2–5 year factory-direct warranty options
- Custom sizes in 960 mm cabinet multiples
960×960 mm Cabinet
Der OK-Serie is LEGIDATECH’s outdoor advertising LED billboard family — fixed-installation screens built for digital billboards, brand facades, sports venues and 3D naked-eye advertising. With P5.7, P6.667, P8 and P10 pixel pitches in one 960×960 mm cabinet platform, advertising operators can standardize on a single cabinet and scale from small storefront walls to large highway billboards.
Why Choose the OK Series
6,500 cd/m² Sunlight Visibility
Full brightness in direct daylight, with scheduled night-time dimming to cut operating cost. See how much brightness your application needs: outdoor LED screen brightness guide.
IP65 All-Weather Protection
Fully protected against dust ingress and water jets from any direction. The die-cast aluminum cabinet handles wind load and dissipates module heat in hot climates.

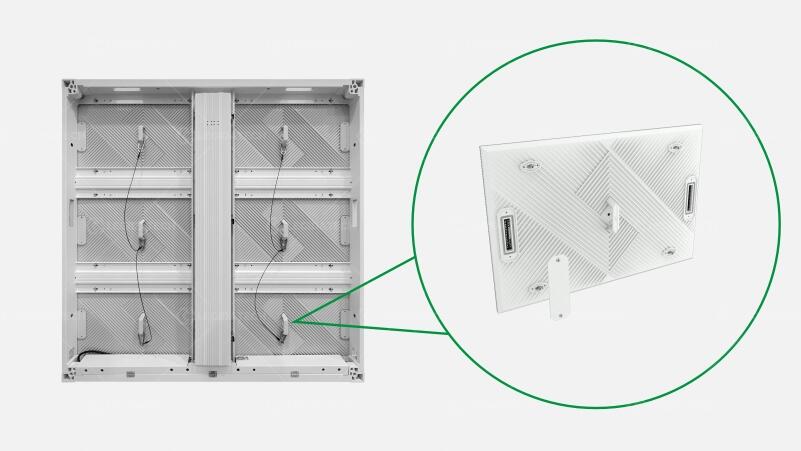

Front & Rear Dual Maintenance
Modules are serviced from the front or rear of the screen — no special access corridor required. A local technician can swap a module in minutes.
250 W Average Power
250 W average / 650 W max per cabinet, with scheduled brightness control for predictable operating cost on 24/7 advertising schedules.
3D Naked-Eye Ready
Corner configurations of the OK Series support anamorphic 3D advertising content — the format winning city-center campaigns worldwide.
Factory-Direct Supply
Direct from LEGIDATECH’s LED display factory with 2–5 year warranty options, spare module stocking and remote commissioning support.
OK Series Key Specifications
| Spezifikation | OK5 | OK6 | OK8 | OK10 |
|---|---|---|---|---|
| Pixelabstand | P5.7 mm | P6.667 mm | P8 mm | P10 mm |
| Helligkeit | 6,500 cd/m² | 6,500 cd/m² | 6,500 cd/m² | 6,500 cd/m² |
| Graustufen | 65,536 levels | 65,536 levels | 65,536 levels | 65,536 levels |
| Bildwiederholfrequenz | 3.840 Hz | 3.840 Hz | 3.840 Hz | 3.840 Hz |
| Pixels per cabinet | 168×168 | 144×144 | 120×120 | 96×96 |
| Pixels per m² | 30,625 | 22,498 | 15,625 | 10,000 |
| Viewing angle | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Stromverbrauch | 250 W / 650 W | 250 W / 650 W | 250 W / 650 W | 250 W / 650 W |
| Protection rating | IP65 | IP65 | IP65 | IP65 |
| Input voltage | 100–240 V | 100–240 V | 100–240 V | 100–240 V |
| Schrankgröße | 960×960×77 mm | 960×960×77 mm | 960×960×77 mm | 960×960×77 mm |
| Cabinet material | Aluminium | Aluminium | Aluminium | Aluminium |
| Cabinet weight | 28 kg | 28 kg | 28 kg | 28 kg |
Pixel Pitch Selection: P5.7 vs P6.667 vs P8 vs P10
Choose the pitch by viewing distance — minimum comfortable viewing distance equals the pixel pitch in millimeters × 1,000. A P8 screen is viewed from at least 8 m.
| Modell | Pixelabstand | Pixels per m² | Recommended viewing distance | Best for |
|---|---|---|---|---|
| OK5 | P5.7 mm | 30,625 | 6–17 m | Close-range advertising, storefronts, street-level signage |
| OK6 | P6.667 mm | 22,498 | 7–20 m | Standard urban advertising, shopping districts |
| OK8 | P8 mm | 15,625 | 8–24 m | Road-facing billboards, building facades |
| OK10 | P10 mm | 10,000 | 10–30 m+ | Highways, large-format billboards, sports venues |
OK Series Product Videos
Why the OK Series for outdoor advertising
Waterproof & weather-resistant features
Installation methods for the OK Series
Installation und Wartung
Standard installation routes
- Wall-mounted: attached to a building facade or purpose-built steel frame with cabinet rear brackets
- Standalone / pole-mounted: fixed to a steel support structure for ground-level and roadside billboards
- Roof-mounted: installed on flat roofs with a wind-load-engineered mounting frame
Every installation ships with a cable layout plan, and LEGIDATECH engineers provide remote commissioning support for the control system after delivery.
Real OK Series Projects
Applications & Solutions
The OK Series is used across outdoor advertising scenarios — see how it performs in each environment:
Outdoor LED Billboard OK Series Price
Cost depends on pixel pitch, total screen area and configuration. As a factory-direct manufacturer, LEGIDATECH quotes ex-works prices with 2–5 year warranty options and supports wholesale and OEM projects. For a full cost breakdown by size and pitch — including what the per-m² price does and does not cover — see the Preisleitfaden für LED-Bildschirme Und Preis für ein LED-Display im Außenbereich.
Outdoor LED Billboard FAQ
How much does an outdoor LED billboard cost?
Costs vary with pixel pitch, size and configuration. A P8–P10 billboard costs less per m² than a P5.7 screen, and factory-direct pricing from LEGIDATECH starts at ex-works rates with 2–5 year warranty options. See the Preisleitfaden für LED-Bildschirme for a full breakdown.
How long does an outdoor LED billboard last?
LED modules are rated for tens of thousands of operating hours; a professionally maintained OK Series billboard typically runs for more than a decade in daily commercial use. LEGIDATECH offers 2–5 year warranty options on factory-direct orders.
Is the OK Series waterproof?
Yes. The OK Series cabinet is rated IP65 — protected against dust ingress and water jets from any direction — so it operates reliably in rain, humidity and dusty environments.
How bright does an outdoor LED billboard need to be?
For direct sunlight visibility, outdoor advertising screens need roughly 5,500–6,500 cd/m². The OK Series delivers 6,500 cd/m² on all four pitches, with scheduled night-time brightness reduction to save power.
What pixel pitch should I choose for my billboard?
Match the pitch to your viewing distance: OK5 (P5.7) for viewing from 6 m, OK6 (P6.667) for 7–20 m, OK8 (P8) for road-facing positions 8–24 m, and OK10 (P10) for highways and large formats viewed from 10 m or more.
What is the best viewing distance for a P8 outdoor LED screen?
Minimum comfortable viewing distance is the pixel pitch in millimeters × 1,000 — about 8 m for P8, 10 m for P10, 6.7 m for P6.667 and 5.7 m for P5.7. Ideal distances are roughly 2–3 times the minimum.
Can the billboard size be customized?
Yes. The OK Series is built from 960×960 mm cabinets (480 mm modules), so screens can be made in any cabinet multiple — from small 2.88×1.92 m walls to 9.6×4.8 m and larger billboards.
How much power does an outdoor LED billboard use?
The OK Series uses 250 W average and 650 W maximum per 960×960 mm cabinet. A 9.6×4.8 m screen (50 cabinets) therefore averages roughly 12.5 kW while running advertising content.
What does a complete OK Series order include?
A typical order includes LED cabinets, control system (receiver cards and sending unit), power supplies, spare modules, mounting accessories and installation drawings. Shipping, structure and on-site installation are quoted separately. Download the OK Series catalog (PDF) for details.
Do you offer 3D naked-eye billboards?
Yes. The OK Series supports 3D anamorphic advertising content when configured as a corner billboard, and LEGIDATECH can supply the content-ready setup for city-center 3D campaigns.
